Description

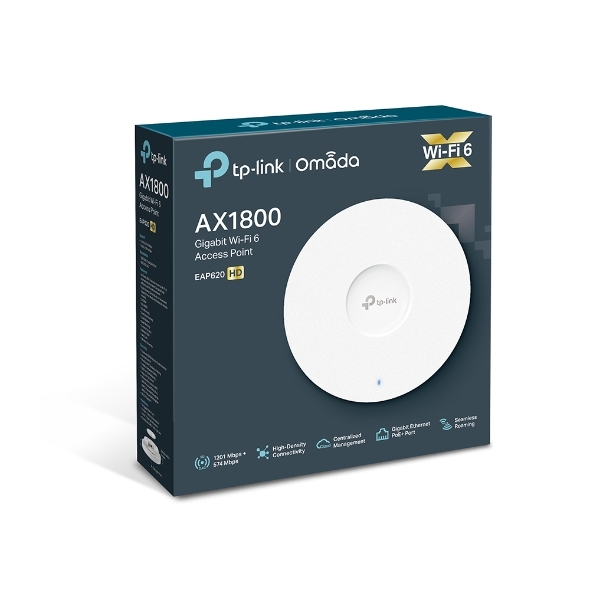

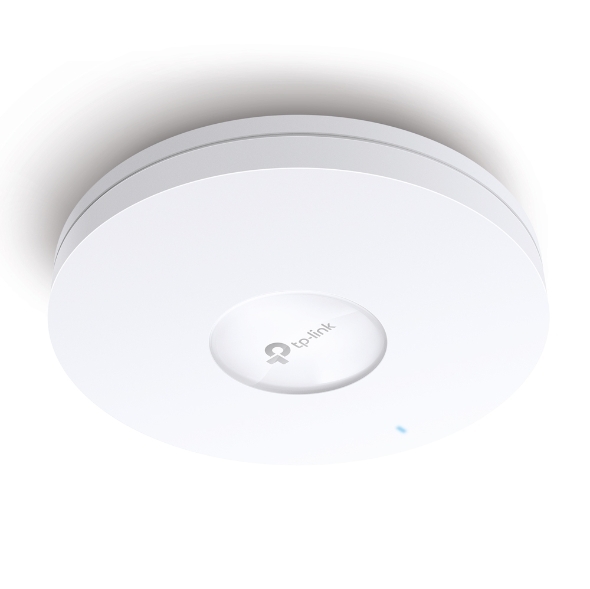

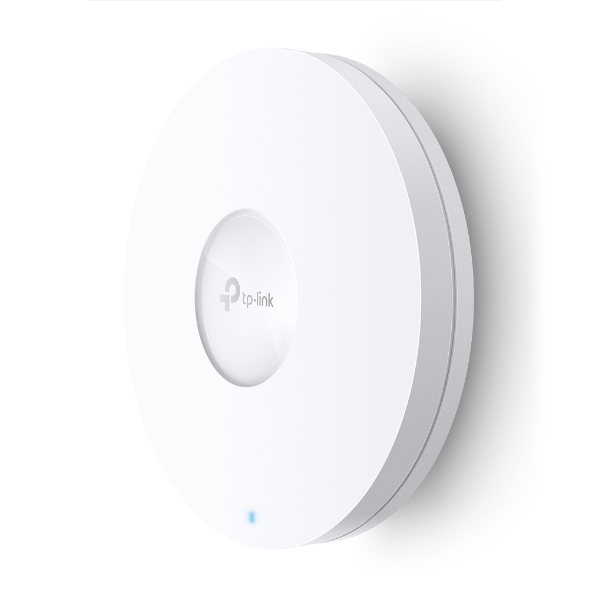

TP-Link EAP620 HD AX1800 Wireless Dual Band Ceiling Mount Access Point

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.¡

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.


HARDWARE FEATURES

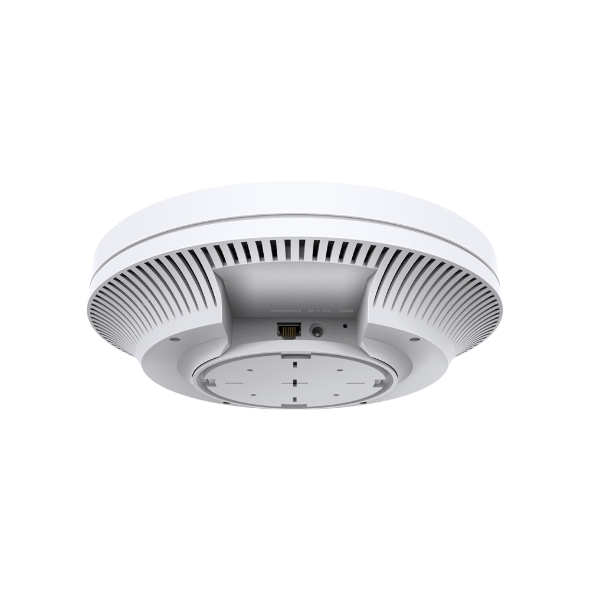

Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button Reset

Power Supply 802.3at PoE

12 V DC

Power Consumption EU: 12 W

US: 13.5 W

Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna Type Internal Omni

2.4 GHz: 2× 4 dBi

5 GHz: 2× 5 dBi

Mounting Ceiling /Wall Mounting (Kits included)


WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate 5 GHz: Up to 1201 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions 1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

Seamless Roaming

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Specifications
SKU NWTL-EAP620HD32
Barcode # 4897098687765
Brand TP-LINK
Shipping weight 1.7800kg
Shipping width 0.406m
Shipping height 0.184m
Shipping length 0.406m
Assembled length 3.060m
Assembled height 0.840m
Assembled width 3.060m

TP-Link EAP620 HD AX1800 Wireless Dual Band Ceiling Mount Access Point 1201Mbps 5GHz Omada OFDMA MU-MIMO QoS Mountable

$223.88
RRP $239.00 save 6%

or 4 payments of $55.97 with Learn more

In Stock

Product Information

SKU:

NWTL-EAP620HD32

Brand:

TP-LINK

Barcode #:

4897098687765

Shipping Weigth:

1.7800kg
