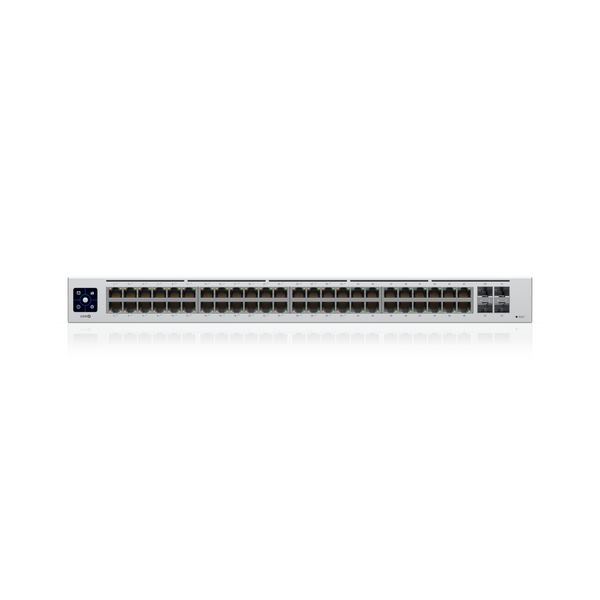

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3' touch LCM to provide status

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features:

(48) Gigabit Ethernet Ports including (32) 802.3at PoE+

(4) 1G SFP Ports

1.3' touch LCM

Managed by UniFi Controller

210W Power supply

Product Specifications:

Dimensions 442.4 x 285 x 43.7 mm

(17.42 x 11.22 x 1.72')

Weight

With Rackmount Brackets 4.52 kg (9.97 lb)

4.61 kg (10.16 lb)

Interfaces

Networking

Management

(48) 10/100/1000 RJ45 Ports

(4) 1G SFP Ethernet Ports

Ethernet In-Band

Power Method 100-240VAC, 50/60 Hz, Universal Input

Power Supply AC/DC, Internal, 240W

Supported Voltage Range 100 to 240VAC

Max. Power Consumption (Excluding PoE Output) 45W

LEDs

RJ45 Data Ports

SFP Data Ports

PoE; Speed/Link/Activity

Link/Activity

ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 10 to 90% Noncondensing

Certifications CE, FCC, IC

POE

PoE Interfaces

Ports 1-32

POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE Wattage per Port by PSE

802.3at

32W

Voltage Range 802.3af Mode 44-57V

Voltage Range 802.3at Mode 50-57V
