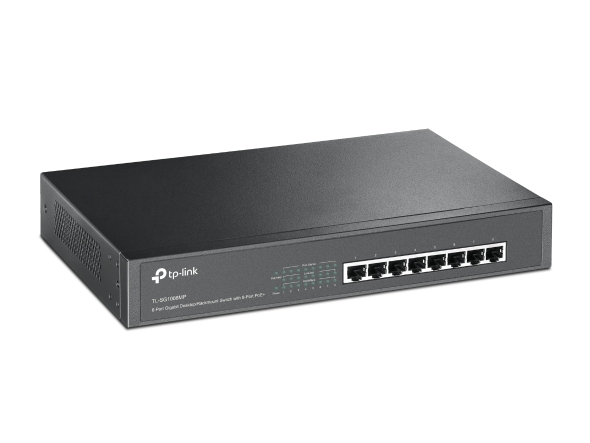

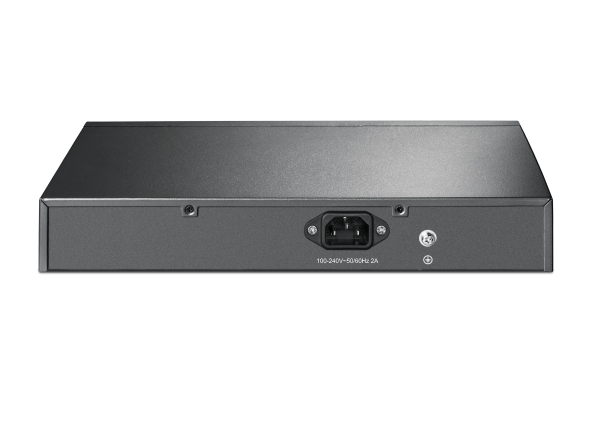

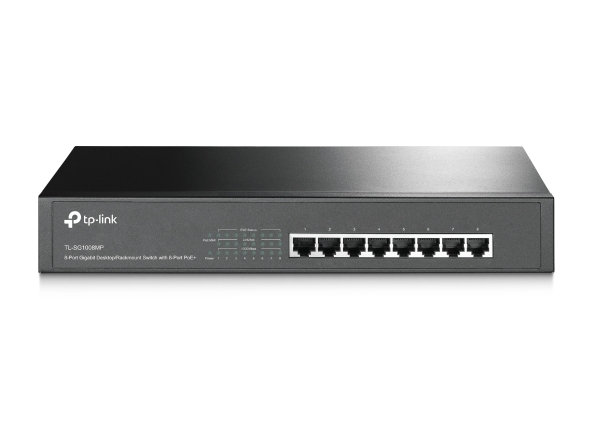

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (Replacement model of TL-SG1008PE)

8 10/100/1000Mbps RJ45 ports

Equipped with 8 PoE+ supported ports to transfer data and power over a single cable

Works with IEEE 802.3af/at compliant devices, expanding home and office networks

Innovative energy-efficient technology reduces power consumption by up to 75%*

Supports PoE+ standard with total power budget of 126W and up to 30W per port

Plug and play design, no configuration required

HARDWARE FEATURES

Interface 8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity 1

Physical Security Lock No

Power Supply 100-240VAC, 50/60Hz

PoE+ Ports(RJ45) Standard: 802.3at/af compliant

PoE+ Ports: 8 Ports

Power Supply: 126W

Backbound Bandwidth 16Gbps

Mac Address Table 4K

Buffer Size 1.5Mbits

Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)

Mounting Rack Mountable

Max Power Consumption 9.89W(220V/50Hz. no PD connected)

140.67W(110V/60Hz. with 126W PD connected)

Max Heat Dissipation 33.74BTU/h(no PD connected)

492.56BTU/h(with 126W PD connected

)

SOFTWARE FEATURES

Advanced Features Compatible With IEEE 802.3af/at Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Transfer Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
