POSTAGE

Description

Technical Specifications

Print

Download

Output

Max Configurable Power (Watts)

390 Watts / 650VA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

10 ms typical : 12 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

176 - 294V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

12hour(s)

Replacement Battery

APCRBC110

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Charge Power (Watts)

6 Watts

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Data Line Protection

RJ45 network line - 10/100/1000 Base-T Ethernet

Filtering

Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

Maximum Height

190MM, 19.0CM

Maximum Width

91MM, 9.1CM

Maximum Depth

310MM, 31.0CM

Net Weight

6.4KG

Shipping weight

7.4KG

Shipping Height

255MM, 25.5CM

Shipping Width

440MM, 44.0CM

Shipping Depth

143MM, 14.3CM

Master Carton Dimensions (Length x Width x Height)

279 x 457 x 229MM

Master Carton Units

2.0

Master Carton Weight

15.65

SCC Codes

10731304346934

Specifications
SKU UPAPCBR650MI
Barcode # 731304346937
Brand APC
Shipping weight 8.0000kg
Shipping width 0.244m
Shipping height 0.352m
Shipping length 0.538m
Assembled length 4.380m
Assembled height 2.520m
Assembled width 1.440m

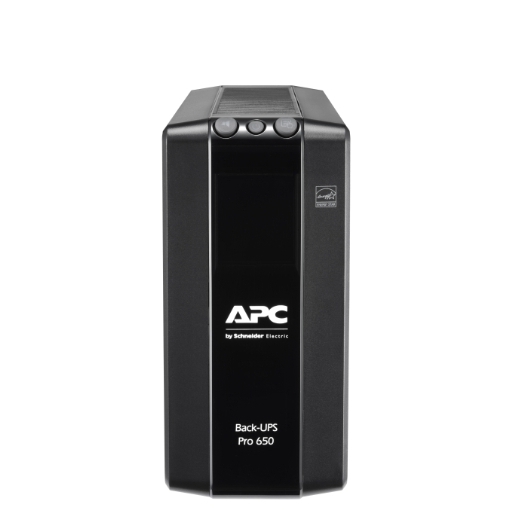

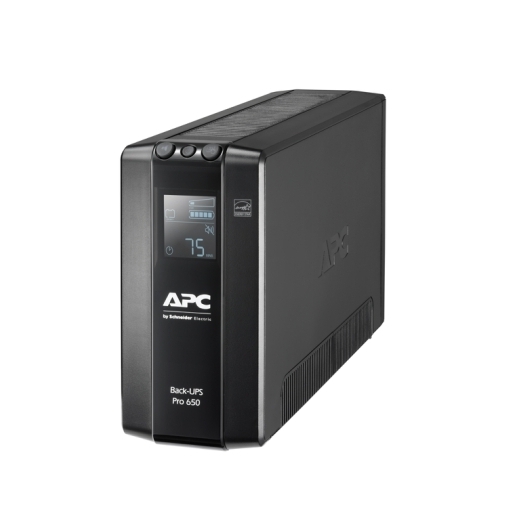

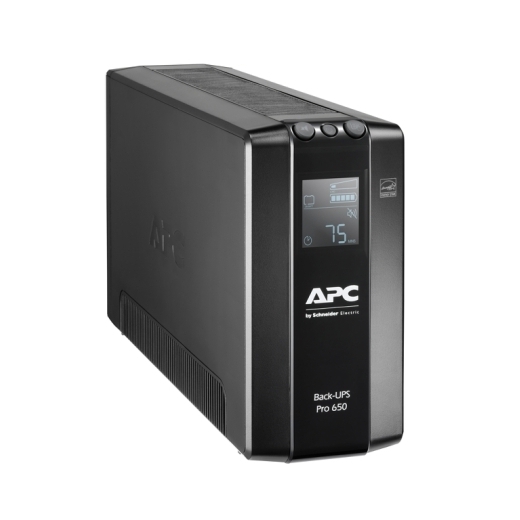

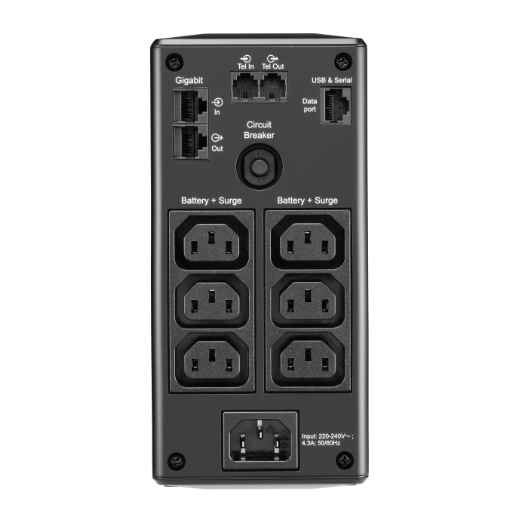

APC Back-UPS Pro 650VA 390W Line Interactive UPS Tower 230V 10A Input 6x IEC C13 Outlets Lead Acid Battery LCD AVR

$285.36
RRP $384.99 save 26%

or 4 payments of $71.34 with Learn more

In Stock

Product Information

SKU:

UPAPCBR650MI

Brand:

APC

Barcode #:

731304346937

Shipping Weigth:

8.0000kg

Warranty:

24
