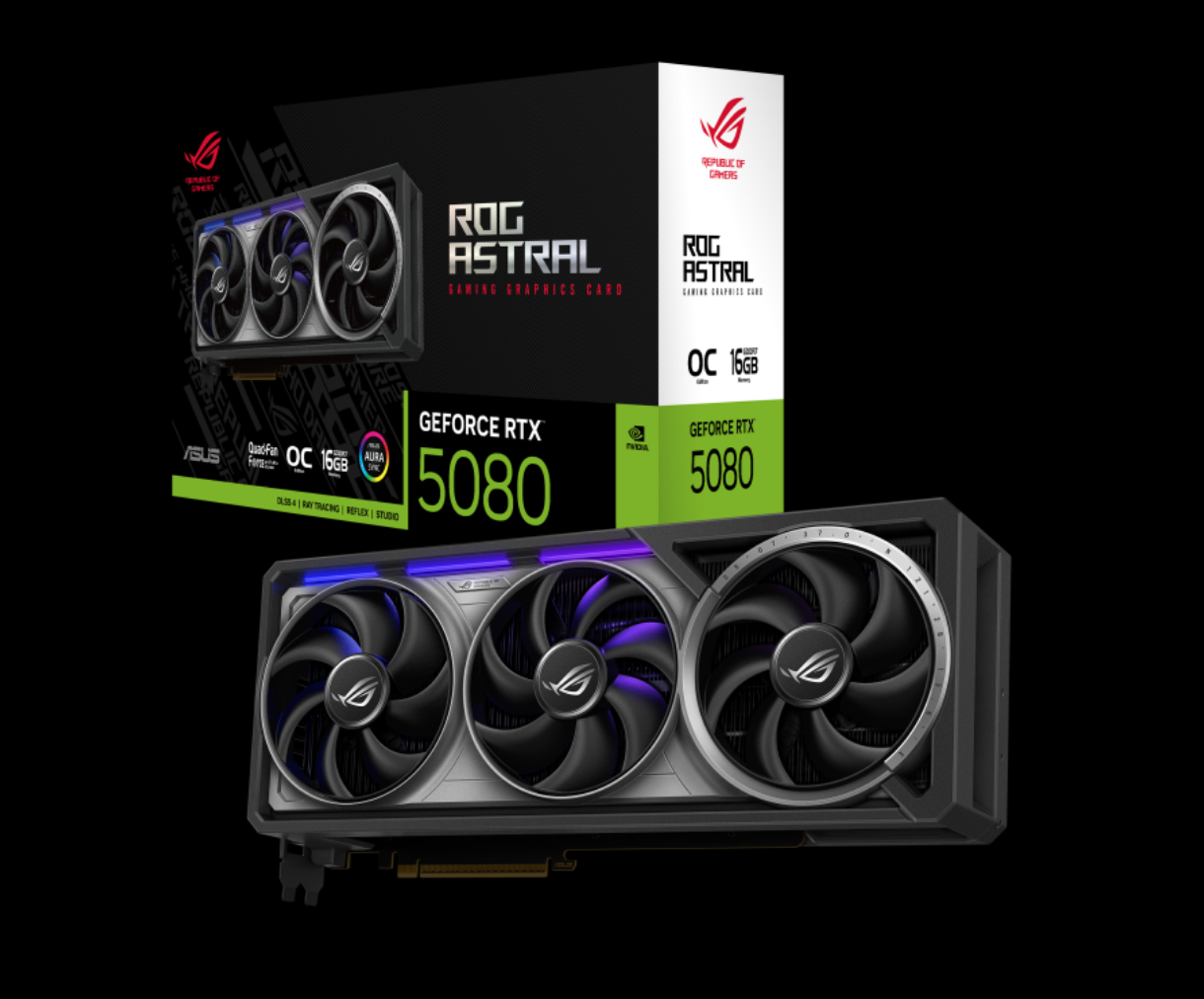

ASUS nVidia GeForce ROG Astral GeForce RTX„ 5080 16GB GDDR7 OC Edition GDDR7 2760 MHz Boost Clock 30 Gbps 256-bit Digital Max Resolution 7680 x 4320

Graphic Engine

NVIDIA GeForce RTX„ 5080

AI Performance

1899 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL4.6

Video Memory

16GB GDDR7

Engine Clock

OC mode: 2790 MHz

Default mode: 2760 MHz (Boost Clock)

CUDA Core

10752

Memory Speed

30 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink Crossfire Support

No

Accessories

1 x Speedsetup Manual

1 x ROG Graphics Card Holder

1 x ROG Velcro Hook Loop

1 x ROG Magnet

1 x ROG Graphics Card Keycap

1 x ROG PCB Ruler

1 x Thank You Card

1 x Adapter Cable (1 to 3)‹

Software

ASUS GPU Tweak III MuseTree GeForce Game Ready Driver Studio Driver: please download all software from the support site.

Dimensions

357.6 x 149.3 x 76 mm

14.1 x 5.9 x 3 inch

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

3.8 Slot

AURA SYNC

ARGB

AI Performance: 1899 AI TOPS

Powered by the NVIDIA Blackwell architecture and DLSS 4

OC mode: 2790 MHz (OC mode) 2760 MHz (Default mode)

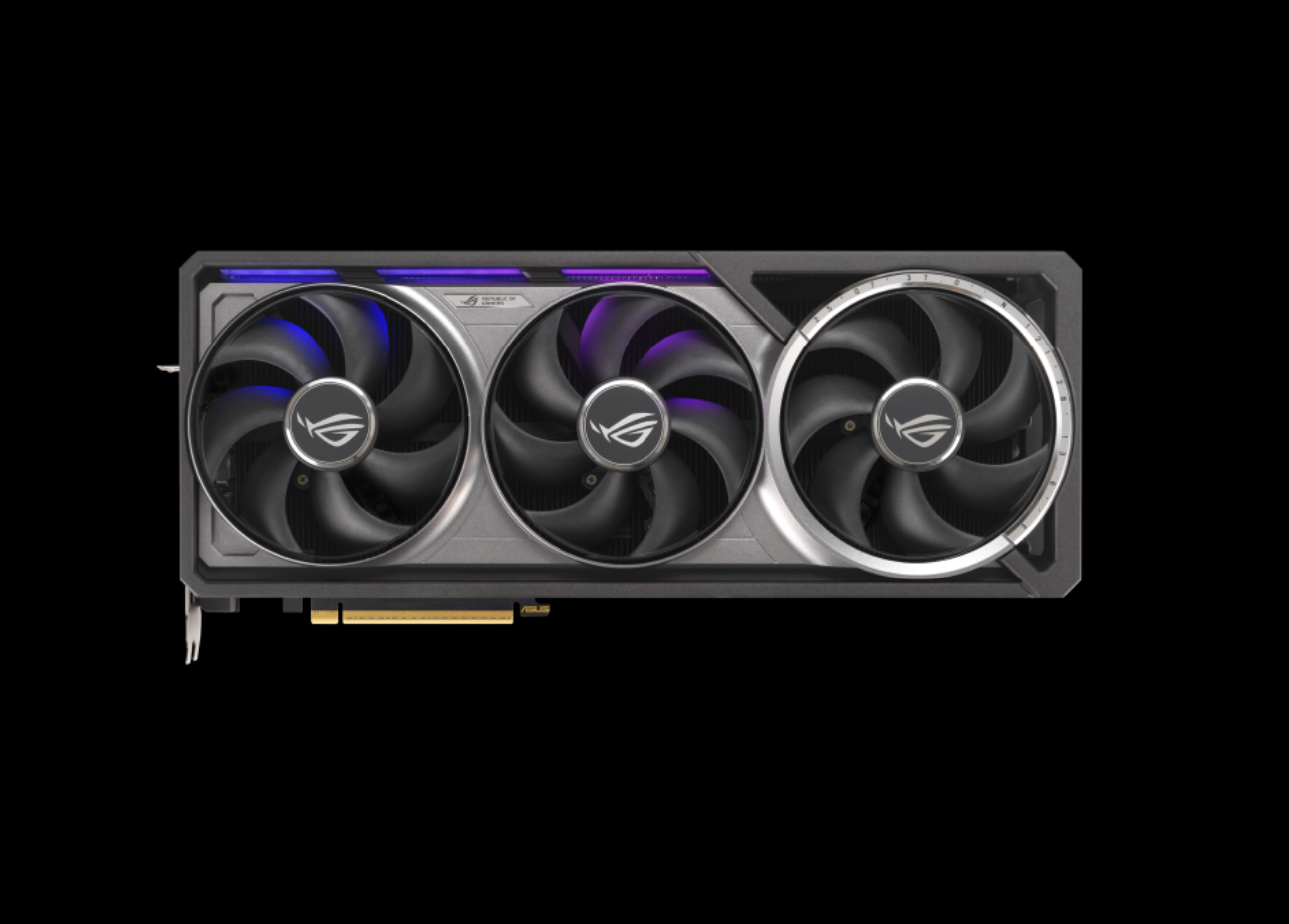

Quad-fan design boosts air flow and pressure by up to 20pct

Patented vapor chamber with milled heatspreader for lower GPU temperatures

Phase-change GPU thermal pad ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability

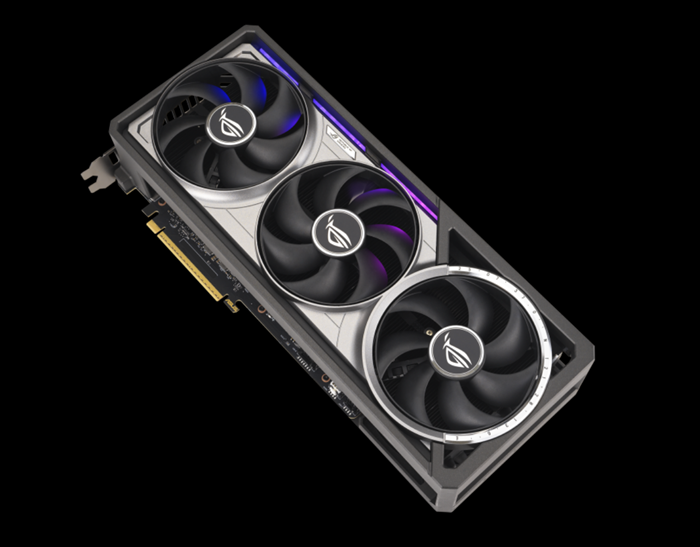

3.8-slot design: massive heatsink and fin array optimized for airflow from the four Axial-tech fans

Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting

‹Full metal diecast shroud, frame backplate, and rear I O bracket brace the PCB for rigidity.

Powerful 50-amp MOSFETs with extra power phases help ensure enhanced performance, stability and higher overclocking potential

Protective PCB coating guards against moisture, dust, and extreme temperatures.

Auto-Extreme manufacturing process for precision and reliability

GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring
