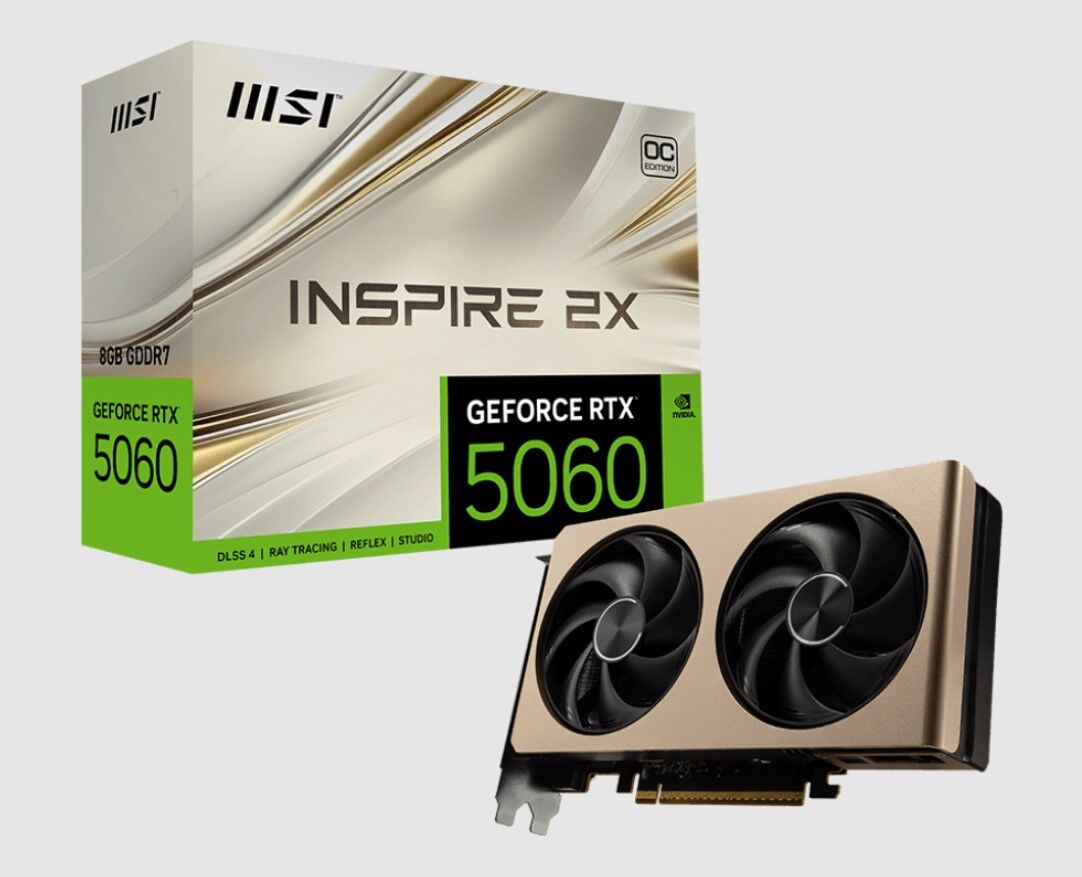

MSI nVidia GeForce RTX 5060 8G INSPIRE 2X OC, PCI Express Gen 5 x16, Boost: 2535 MHz, CUDA 3840 Units, 8GB GDDR7,. HDMI„ x 1 (emabargo)

SPECIFICATIONS

Marketing Name GeForce RTX„ 5060 8G INSPIRE 2X OC

Model Name G506-8I2C

Graphics Processing Unit NVIDIA GeForce RTX„ 5060

Interface PCI Express Gen 5 x16 (uses x8)

Core Clocks Extreme Performance: 2550 MHz (MSI Center)

Boost: 2535 MHz

CUDA CORES 3840 Units

Memory Speed 28 Gbps

Memory 8 GB GDDR7

Memory Bus 128-bit

Output DisplayPort x 3 (v2.1b)

HDMI„ x 1 (As specified in HDMI„ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support Y

Power consumption 145W

Power connectors 8-pin x 1

Recommended PSU TBD

Card Dimension (mm) 204 x 117 x 41 mm

Weight (Card Package) TBD

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC technology Y

Digital Maximum Resolution 7680 x 4320

FEATURES

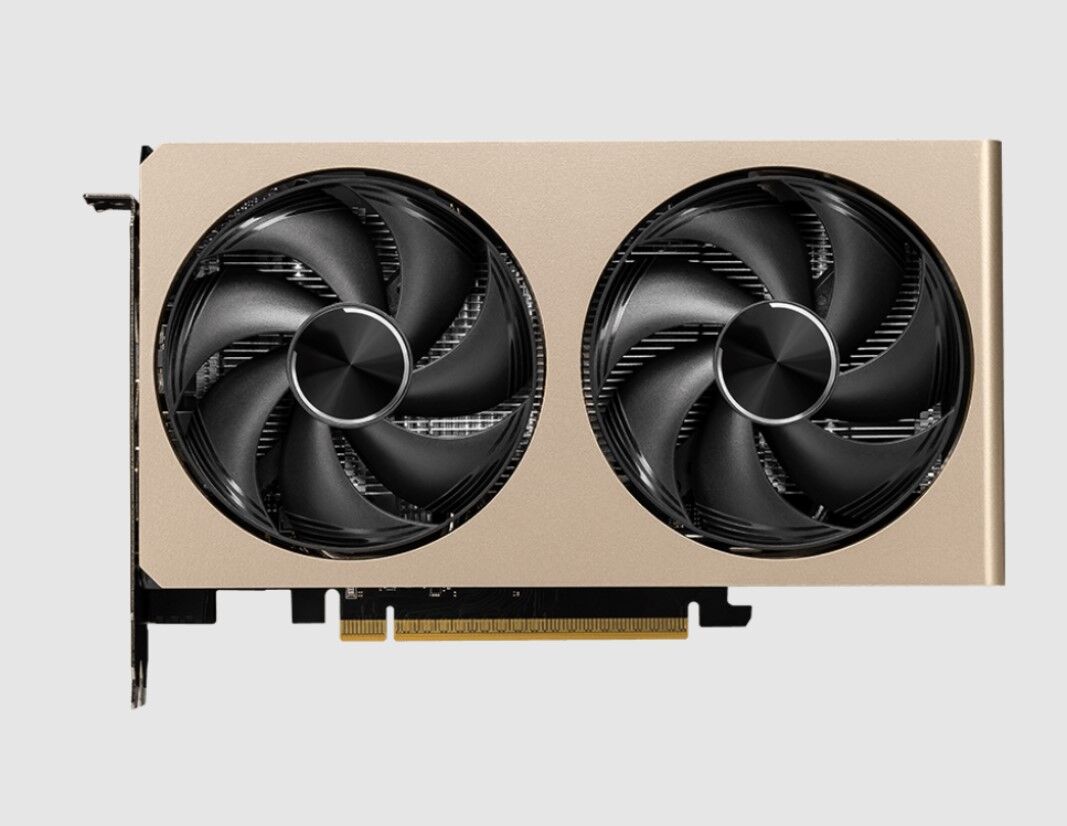

Dual Fan

Two fans and a huge heatsink ensure a cool and quiet experience

for you.

STORMFORCE FAN

Seven fan blades, claw texturing, and a circular arc are designed

for optimal airflow with minimal noise.

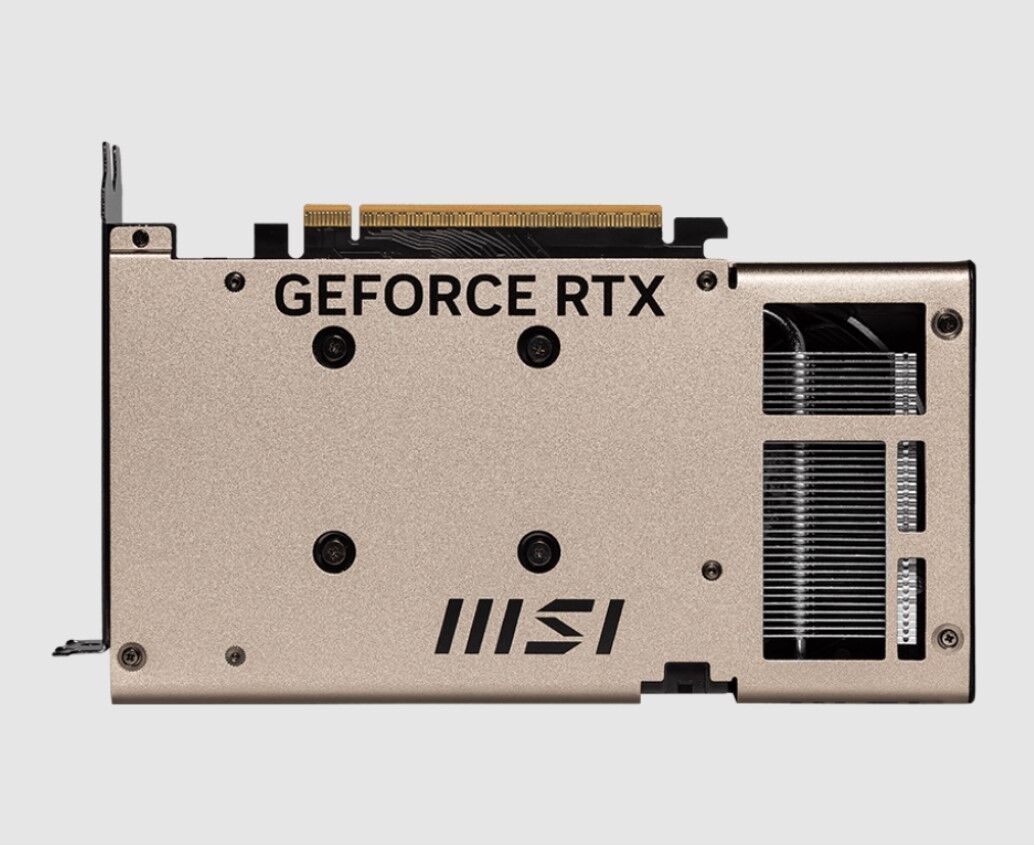

Metal Backplate

A sturdy metal backplate strengthens the graphics card while the

airflow vent design reduces excess heat.

Zero Frozr

The fans completely stop when temperatures are relatively low,

eliminating all noise.

DrMOS

DrMOS power stage solutions provide great efficiency with low

power loss and enhanced voltage controls.

Fuse

Additional fuses built into the custom PCB provide additional

safeguards against electrical damage.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and

optimize MSI products in real-time.

Afterburner

Take full control with the most recognized and widely used

graphics card overclocking software in the world.
