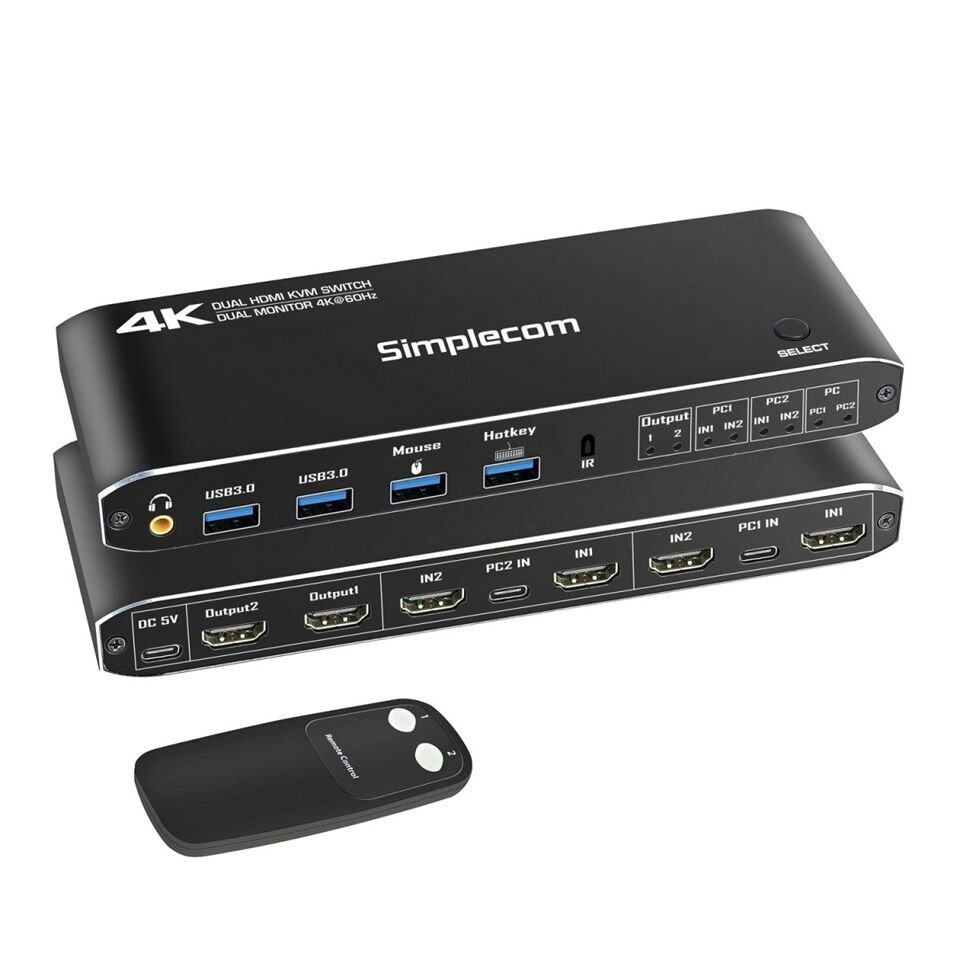

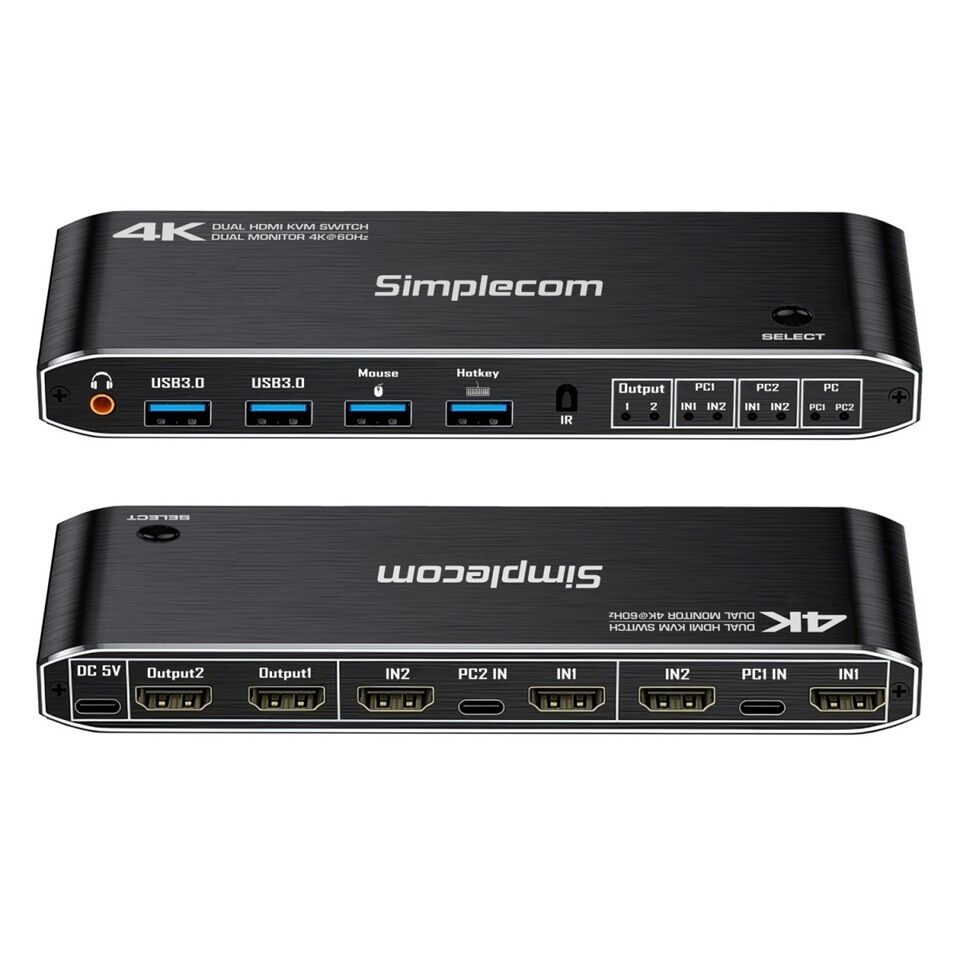

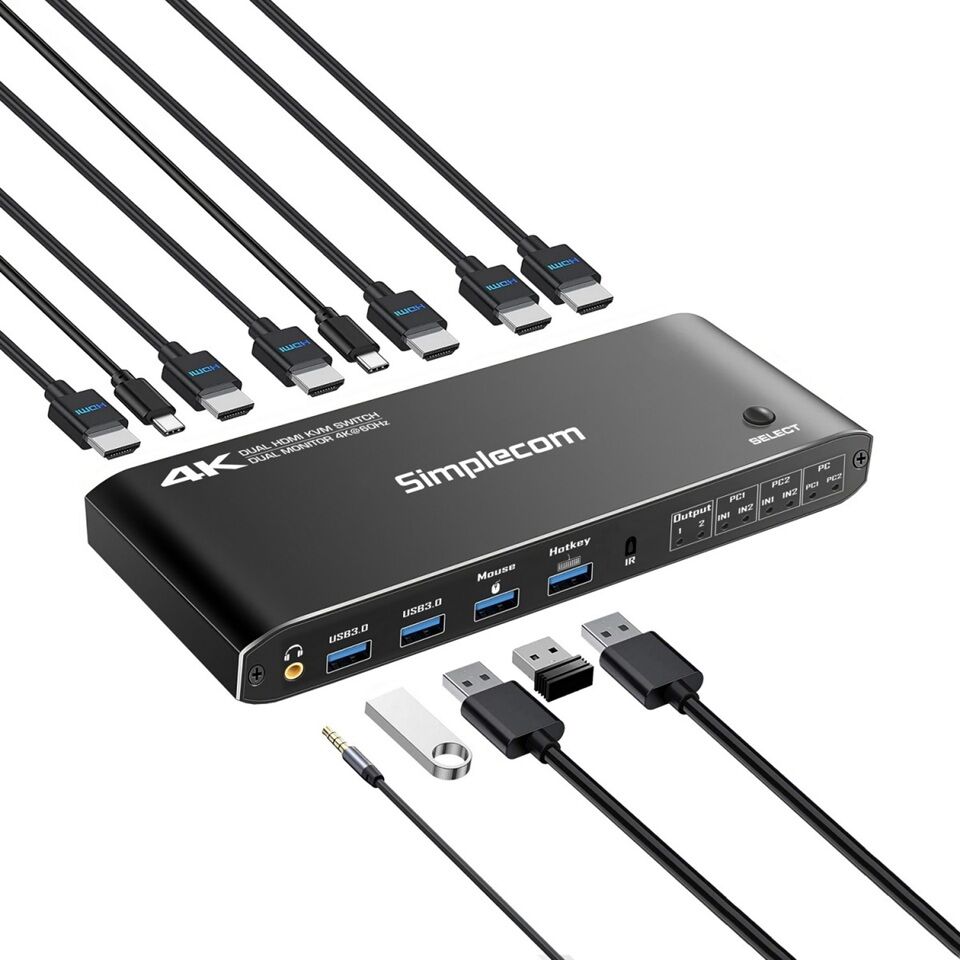

Simplecom KM430 Dual HDMI Monitor KVM Switch for 2 Computers with 4-Port USB Hub 4K 60Hz Keyboard Hotkey

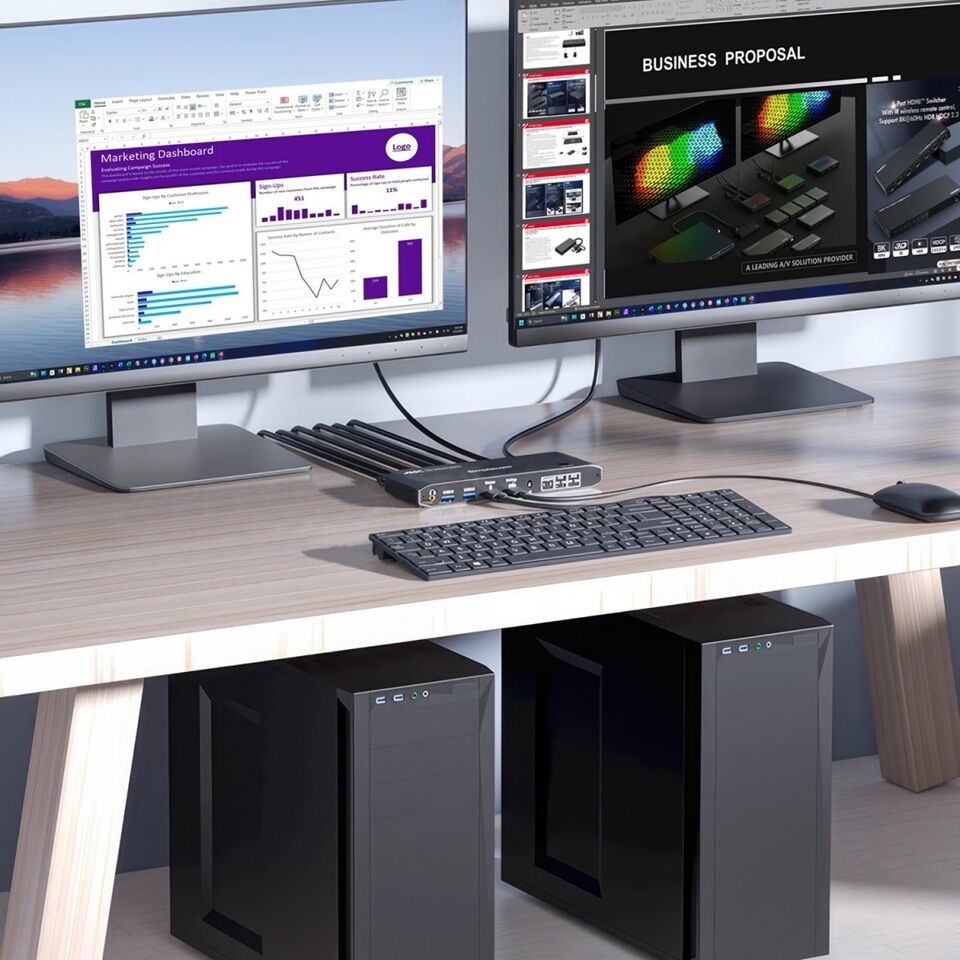

This Dual HDMI KVM Switch lets you control two computers with a single set of peripherals and dual monitors, making it ideal for multitasking across workstations or home setups. It supports both extended and mirrored display modes with HDMI 2.0 compliance, delivering ultra-high video resolution up to 4K 60Hz on both screens.

It features an integrated 4-port USB hub, allowing you to simultaneously switch both displays and connected USB peripherals. Switching between computers is easy via the front button, included remote control, or keyboard hotkeys (supported via the dedicated USB keyboard port).

It fts plug-and-play, with no drivers required, and works seamlessly across multiple platforms. The durable aluminum alloy casing ensures long-lasting use and efficient heat dissipation. LED indicators provide clear status updates for active computer connections.

Perfect for professionals who require maximum productivity and multitasking capabilities, this dual HDMI KVM switch offers rich functionality and convenient, efficient switching, making it an ideal choice for multi-system setups.

Features

Dual HDMI KVM switch allows 2 computers to share 2 displays and 4 USB ports

Supports dual monitors in extended or mirrored modes

HDMI 2.0 compliant, support video resolution up to 4K 60Hz

Integrated 4-port USB hub toggled with the display simultaneously

Two SuperSpeed USB 3.0 ports support up to 5Gbps data transfer rate

Two USB 2.0 ports for connecting a mouse and keyboard

Easy to use by pressing the toggle button on the KVM switch or remote control

USB port for keyboard supports Hotkey function to switch computer

3.5mm audio output port for connecting speakers or headphones

Plug and play, no driver required with multi-platform compatibility

Durable aluminium alloy casing, also efficiently dissipate heat

Powered by USB, no additional power adapter required

LED lights indicating status of each computer

Specifications

Model: KM430

USB Upstream Ports: USB-C x2 (Connect to PC1 and PC2)

USB Downstream Ports: USB 3.0 x 2, USB 2.0 x2 (Keyboard and Mouse)

Monitor Input: HDMI 2.0 x4 (Connect to PC1 and PC2)

Monitor Output: HDMI 2.0 x2 (connect to two displays)

Power Input: USB-C, DC 5V (backup power only, not required)

Audio Output: 3.5mm audio jack (extracted from HDMI Output1 port)

USB Max Bandwidth: 2xUSB 3.0 up to 5Gbps, 2xUSB 2.0 up to 480Mbps

Video Max Bandwidth: up to 18Gbps

Max Video Resolution: 4K 60Hz (3840x2160), 2K 120Hz (2560x1440), 1080p 144Hz (1920x1080)

Max Cable Length for Input Output: ‰¤5m

Operating Temperature Range: -5 degreeC to 45 degreeC

Operating Humidity Range: 5 to 90pctRH (no Condensation)

Dimension (L x W x H): 17.5 x 5.7 x 2.1cm

Weight: 170g

Operating System Support: Windows, macOS, Linux, Chrome OS

Package Contents

1x Dual HDMI KVM Switch

2x USB-C to USB-A 5Gbps Data Cables

1x USB-C to USB-A Power Cable

1x Remote Control

Important Note

Powered via USB (connects PC and Switch with USB data cable), no extra power adapter needed. The DC 5V port is for backup power only, in case the PC fts USB port cannot provide sufficient power.

For stable performance, use High-Speed HDMI cables supporting 18Gbps bandwidth.

This dual HDMI KVM switch also works in single monitor mode.

It is recommended to adjust to the same resolution and refresh rate on both computers for smooth switching.
