Description

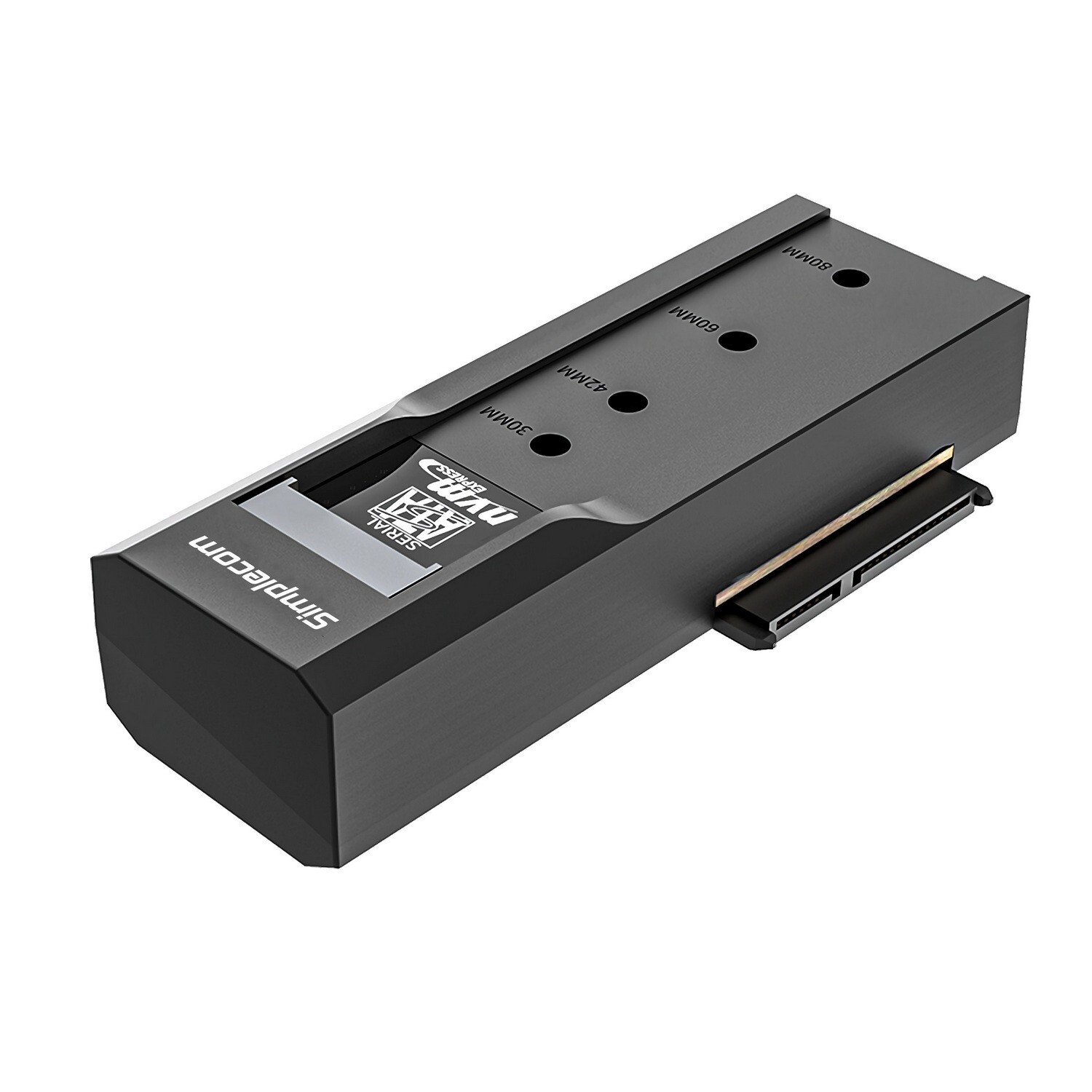

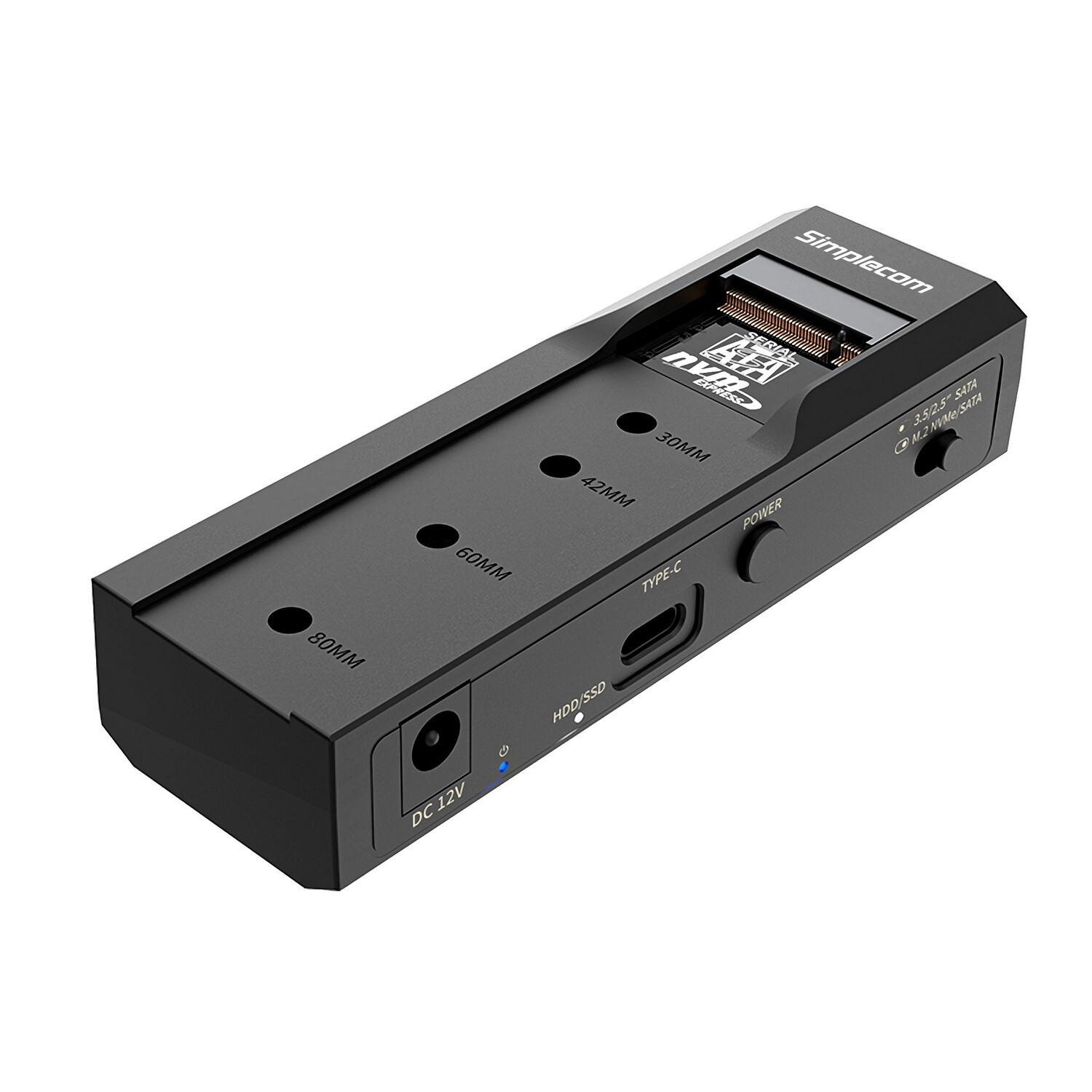

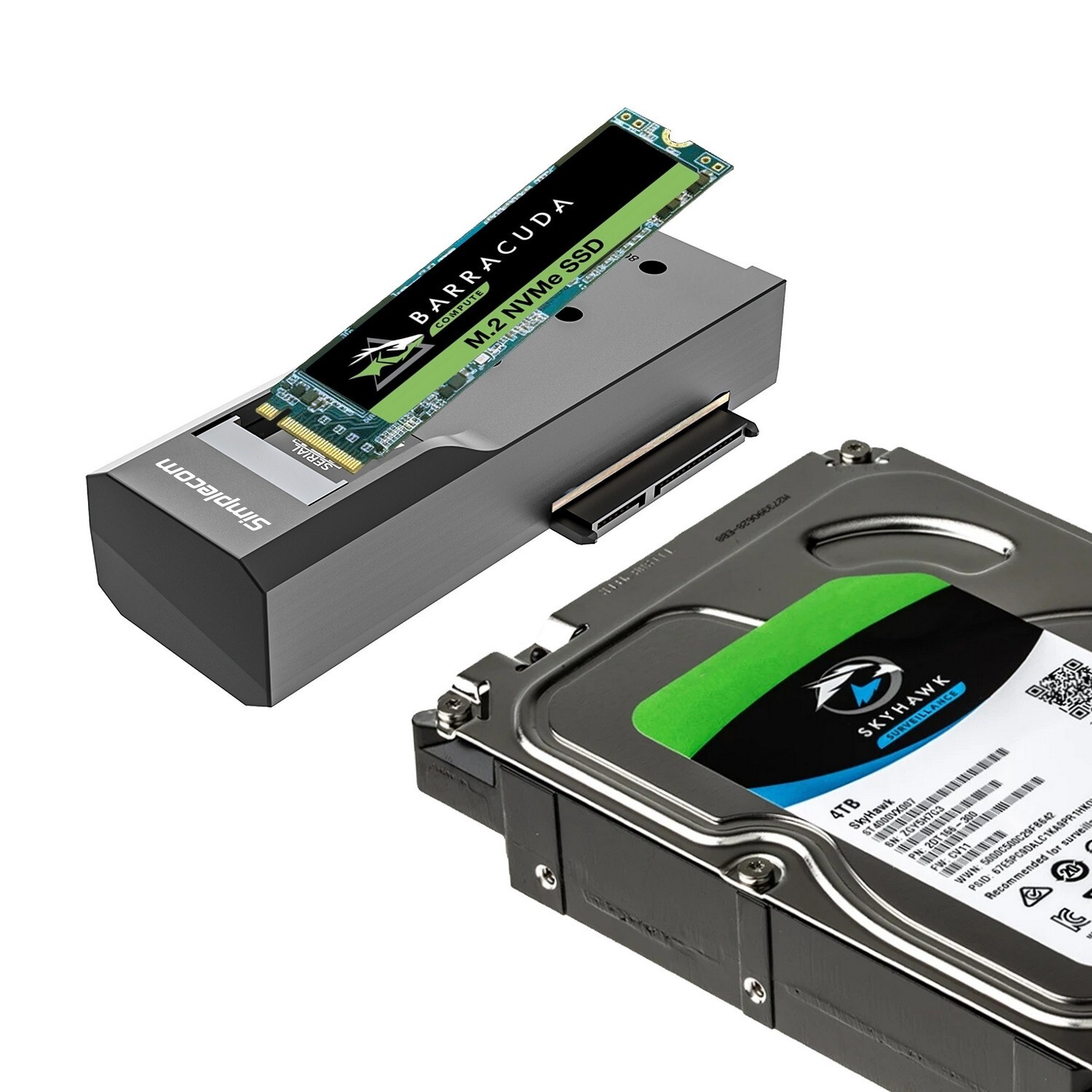

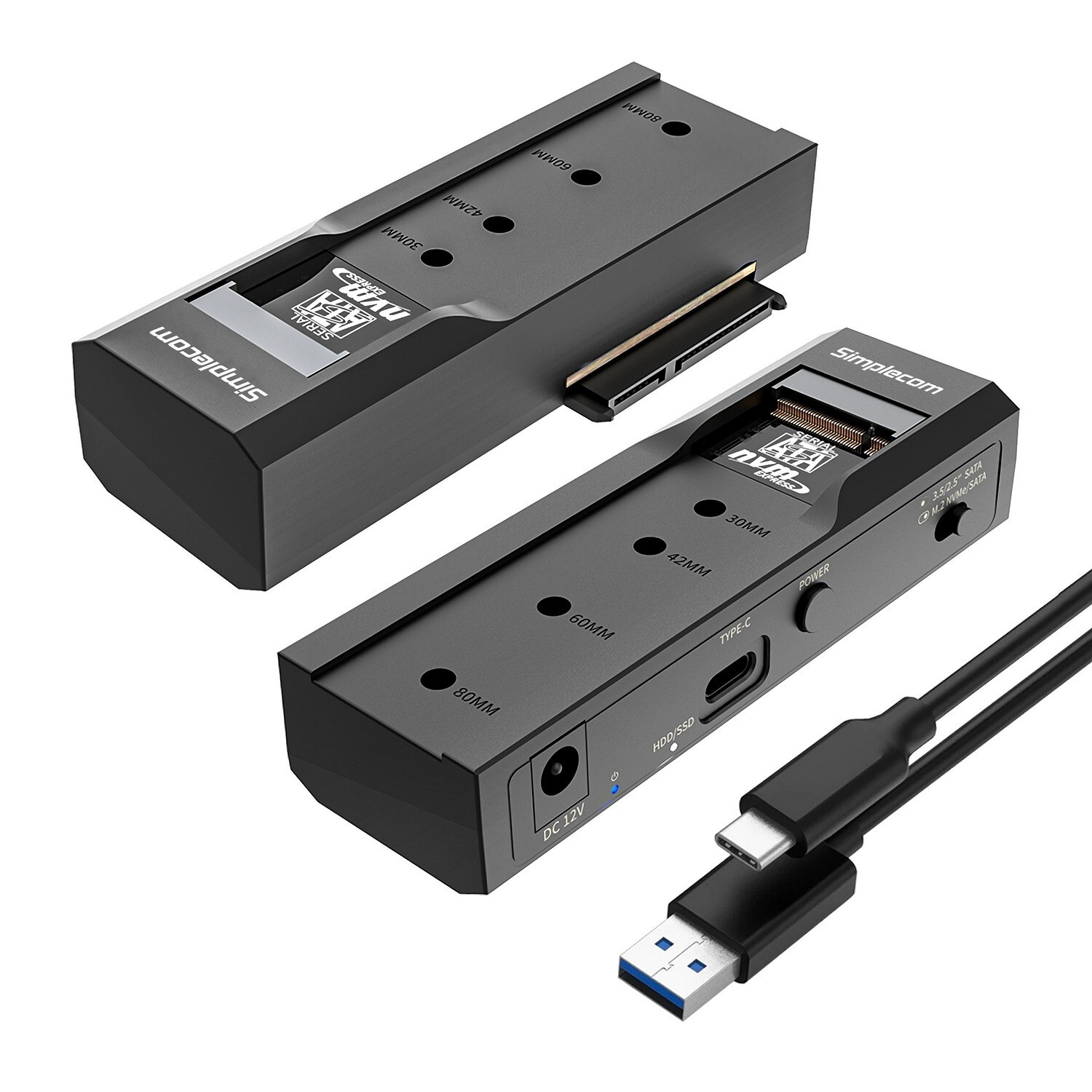

Simplecom SA536 USB to M.2 and SATA 2-IN-1 Adapter for 2.5'/3.5' HDD & NVMe/SATA M.2 SSD with Power Supply USB 3.2 Gen2 10Gbps



Features


2-IN-1 USB adapter with SATA and M.2 sockets

Supports NVMe and SATA M.2 SSD

Supports 2.5' and 3.5' SATA HDD/SDD with SATA I/II/III interface

Toggle button to quickly switch between SATA and M.2

USB 3.2 Gen2 interface support up to 10Gbps data transfer rate

Plug and play, no driver required

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

With external power adapter for 3.5' hard drives

LED light indicates Power and Activity status

Specifications


Model: SA536

Interface: USB-C (USB 3.2 Gen 2)

Transfer Rate: up to 10Gbps

NVMe Slot Support: NVMe or SATA M.2 SSD (2230 / 2242 / 2260 / 2280)

SATA Slot Support: 3.5' or 2.5' SATA HDD/SSD

Main material: ABS Plastic

Power Input: DC 12V2A

Dimensions: 108 x 44 x 24mm (LxWxH)

Weight: 49g (without power adapter)

Supported Operating Systems: Windows 7 and above, Mac OS 10.8 and above

Package Contents


1x USB to SATA and M.2 Adapter

1x AC Power Adapter

1x USB-C to USB-A Cable

1x USB-C to USB-C Cable

Rubber Standoff for M.2 SSD

User Manual



Important Note


External power is Not required when using 2.5' SATA drive or M.2 SSD, they can be powered by USB.

External power is required for 3.5' SATA HDD, please connect USB cable before connecting power cable.

SATA and M.2 sockets can't be used simultaneously, toggle button need to be selected to SATA or M.2 mode.

Specifications
SKU CBSI-SA536
Barcode # 9350414002963
Brand Simplecom
Shipping weight 0.9200kg
Shipping width 0.238m
Shipping height 0.160m
Shipping length 0.272m
Assembled length 1.720m
Assembled height 0.600m
Assembled width 1.380m
