Description

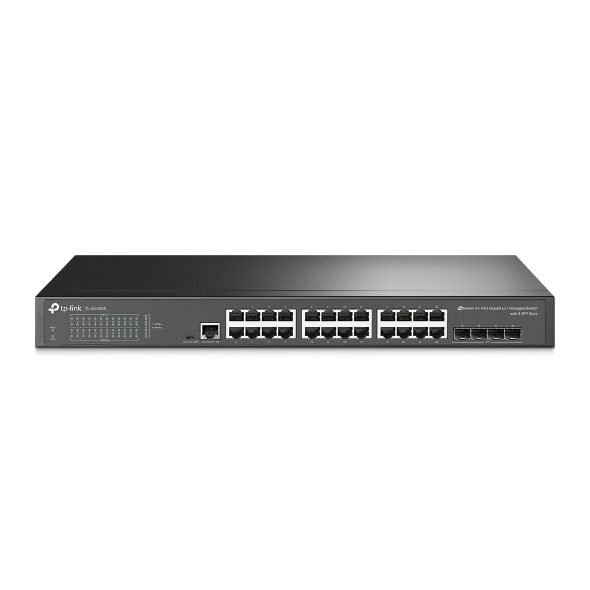

TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots


Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities


HARDWARE FEATURES

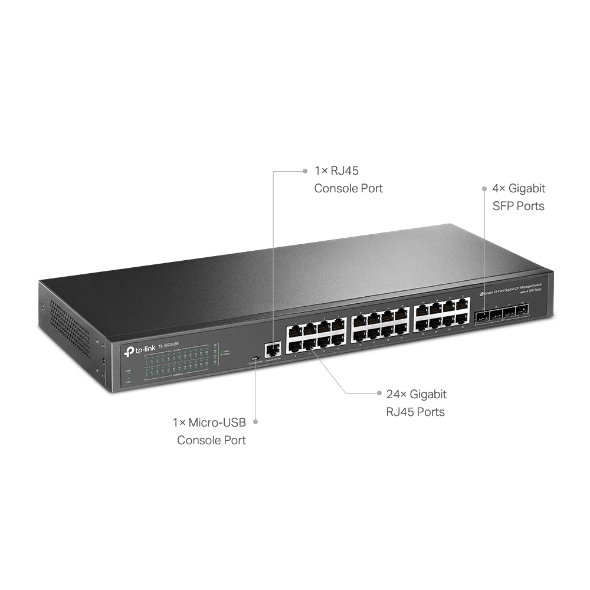

Interface 24× 10/100/1000 Mbps RJ45 Ports

4× Gigabit SFP Slots

1× RJ45 Console Port

1× Micro-USB Console Port

Fan Quantity Fanless

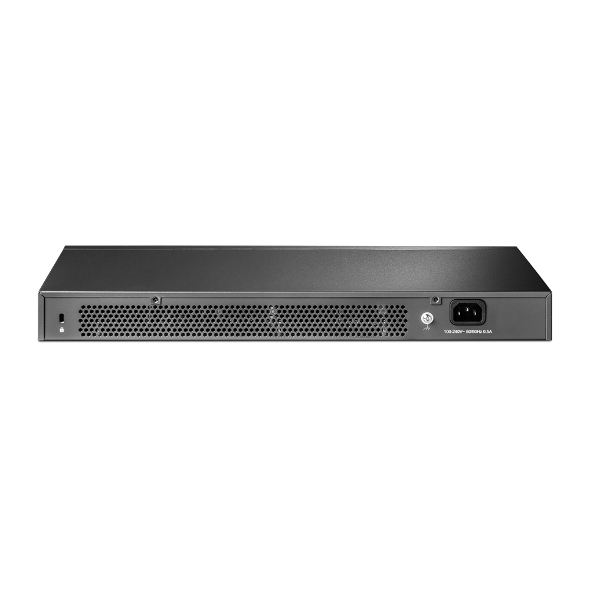

Power Supply 100-240 V AC~50/60 Hz

Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 19.9 W (220 V/50 Hz)

Max Heat Dissipation 67.73 BTU/h (220 V/50 Hz)


PERFORMANCE

Switching Capacity 56 Gbps

Packet Forwarding Rate 41.66 Mpps

MAC Address Table 16K

Jumbo Frame 9 KB


SOFTWARE FEATURES

Quality of Service 8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

Bandwidth Control

- Port/Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

Specifications
SKU NWTL-SG3428
Barcode # 6935364010713
Brand TP-LINK
Shipping weight 3.2800kg
Shipping width 0.356m
Shipping height 0.180m
Shipping length 0.630m
Assembled length 5.300m
Assembled height 0.800m
Assembled width 2.560m

TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots IGMP Snooping QoS Rack Mountable Fanless Support Omada Controller

$290.00
RRP $389.00 save 25%

or 4 payments of $72.50 with Learn more

In Stock

Product Information

SKU:

NWTL-SG3428

Brand:

TP-LINK

Barcode #:

6935364010713

Shipping Weigth:

3.2800kg

Warranty:

60
