Corsair FRAME 5000D WORKSTATION Mid-Tower Case - Black, supports E-ATX, tempered glass, high airflow design, 420mm radiator, 450mm GPU support

A roomy chassis with 9 PCI slots for multi-GPU builds

Steel side panels feature sound dampening material

GPU immobilization and anti-sag options

Support for SSI-EEB CEB, reverse-connector motherboards

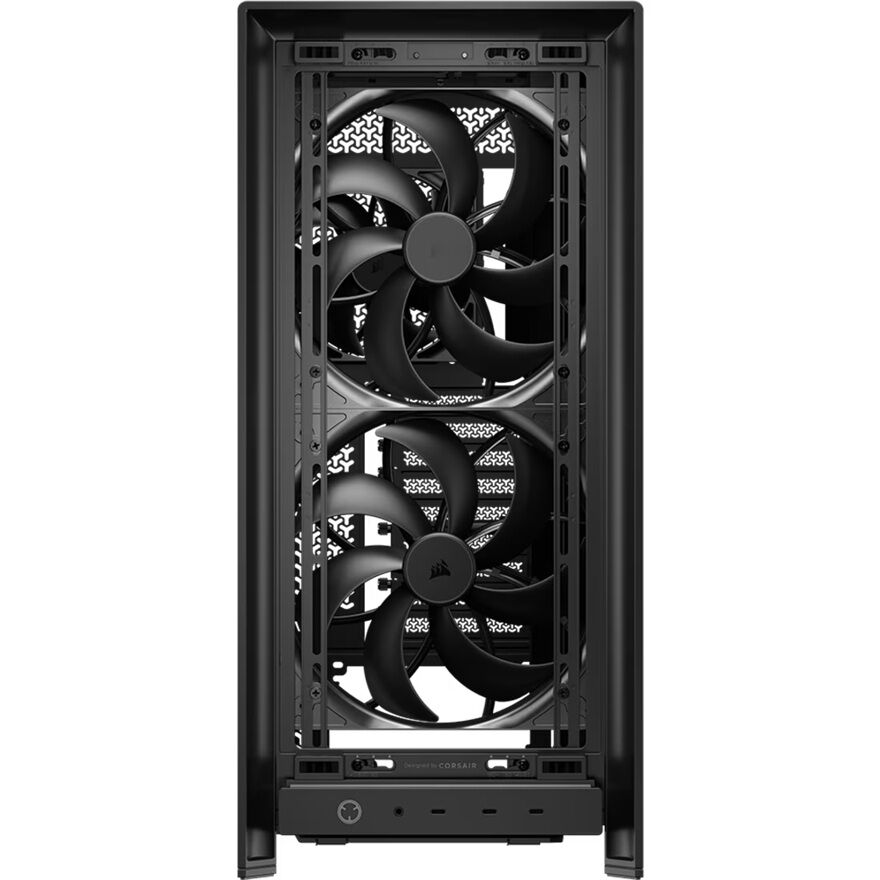

Dual 200mm intake fans for quiet, powerful airflow

Optional UV printing and custom hardware configurations available

Tech Specs

Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, SSI-EEB

Case Height 542mm

Case Length 556mm

Case Width 250mm

Material Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Color BLACK

Case Size Mid-Tower

Case Window Tempered Glass

Compatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITAN

Maximum CPU Cooler Height 175mm

Case Front IO (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in out

Maximum GPU Length 450mm

Weight 15.48kg

Case Expansion Slots 8 Horizontal or 3 Vertical

Case Power Supply ATX

Radiator Support - Top 420mm, 360mm, 280mm, 240mm

Radiator Support - Front 360mm, 280mm, 240mm

Radiator Support - Bottom None

Radiator Support - Side 360mm, 280mm, 240mm

Radiator Support - Rear 140mm, 120mm

Fan Support - Top 3x 120mm, 3x 140mm

Fan Support - Front 3x 120mm, 3x 140mm, 2x 200mm

Fan Support - Bottom 4x 120mm

Fan Support - Side 3x 120mm, 3x 140mm

Fan Support - Rear 1x 140mm, 1x 120mm

Front IO Motherboard Connections 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio

Reverse Connector Motherboard Support Yes

Included Fans RS Series

Dust Filtration Yes

Cable Routing Space 42mm

RapidRoute Included Yes

Left Side Panel Tempered Glass

Right Side Panel Steel

Vertical Mount Support Supported (Riser Card Sold Separately)
