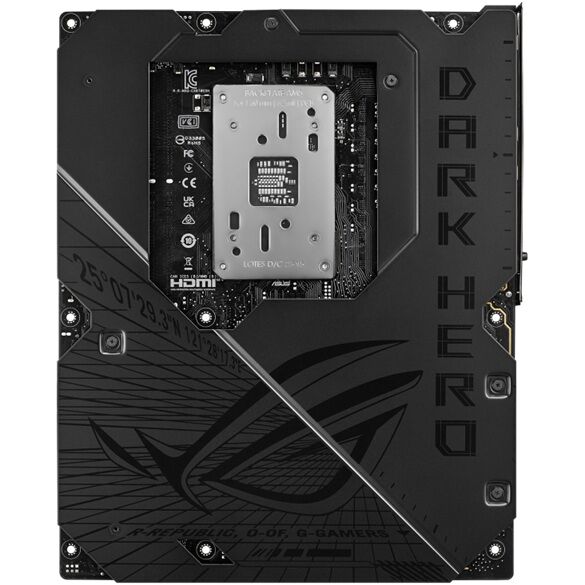

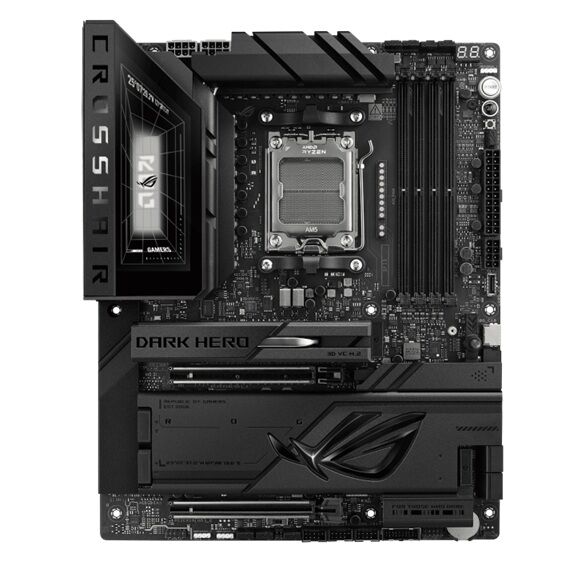

ASUS AMD ROG CROSSHAIR X870E DARK HERO (AM5) ATX Motherboard, AM5, DDR5 256GB, PCIe 5.0, 5x M.2, Wi-Fi 7, 10GbE5GbE, USB4, ATX, 2yr wty

SPECIFICATION

MODEL

ROG CROSSHAIR X870E DARK HERO

CPU

AMD Socket AM5 for AMD Ryzen„ 9000 8000 7000 Series Desktop Processors

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to

8600MT s(OC) 8200MT s(OC) with Ryzen„ 9000 Series Processors,

9600MT s(OC) 9200MT s(OC) with Ryzen„ 8000 Series Processors,

8000MT s(OC) 8000MT s(OC) with Ryzen„ 7000 Series Processors,

ECC and Non-ECC, Un-buffered DIMM ft

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO„)

Supports DIMM Fit and DIMM Fit Pro

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

Graphics

1 x HDMI„ port

2 x USB4 (40Gbps) ports support USB Type-C display outputs

Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

Supports 4K 60Hz as specified in HDMI 2.1.

Supports max. 4K 60Hz as specified in DisplayPort 1.4a

The display function of the Type-C port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.

Expansion Slots

AMD Ryzen„ 9000 7000 Series Desktop Processors

2 x PCIe 5.0 x16 slots (supports x16 or x8 x8 modes)

AMD Ryzen„ 8700 8600 8400 Series Desktop Processors

2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)

AMD Ryzen„ 8500 8300 Series Desktop Processors

2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)

Please check the PCIe bifurcation table on the support site (https: www.asus.com support FAQ 1037507 ).

Specifications vary by CPU types.

When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.

- To ensure compatibility of the device installed, please refer to https: www.asus.com support for the list of supported

Storage

Supports 5 x M.2 slots and 4 x SATA 6Gb s ports

AMD Ryzen„ 9000 7000 Series Desktop Processors

AMD Ryzen„ 8700 8600 8400 Series Desktop Processors

AMD Ryzen„ 8500 8300 Series Desktop Processors

AMD X870E Chipset

ASMedia ASM1162 Controller

RAID Support

AMD RAIDXpert2 Technology

Ryzen„ 9000 8000 7000 Series Processors: RAID 0 1 5 10

SATA ports from ASM1162 cannot support RAID

Ethernet

1 x Realtek 10Gb Ethernet

1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wireless Bluetooth

Wi-Fi 7 (MediaTek MT7927)

2x2 Wi-Fi 7 (802.11be)

Supports 2.4 5 6GHz frequency band

Supports Wi-Fi 7 320MHz bandwidth

Bluetooth v5.4 (suppport LE Audio)

Wi-Fi features may vary depending on the operating system

USB

Rear USB (Total 11 ports)

Front USB (Total 12 ports)

BIOS

64 MB (512Mb)

Flash ROM, UEFI AMI BIOS

Operating System

Windows 11

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
