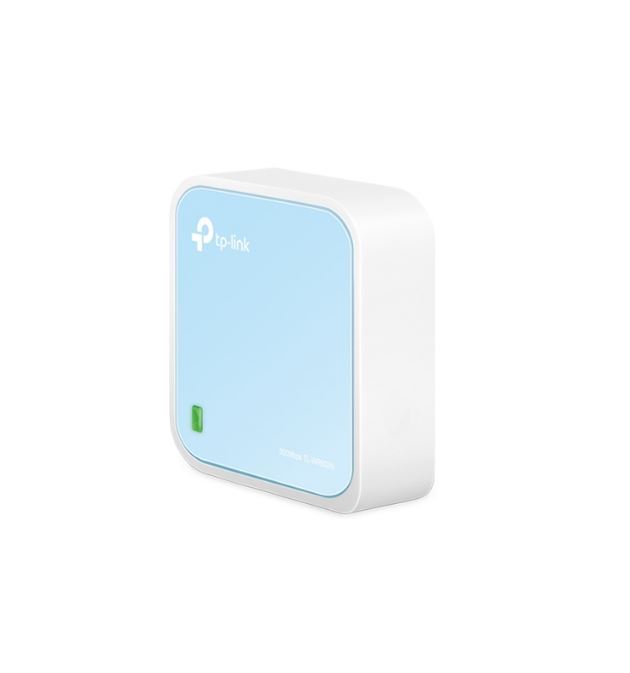

TP-Link TL-WR802N N300 Wireless N Nano Router 2.4GHz (300Mbps) 1x100Mbps LAN/WAN 1xMicro USB 802.11bgn Onboard Antenna Pocket Size for Travel

300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling

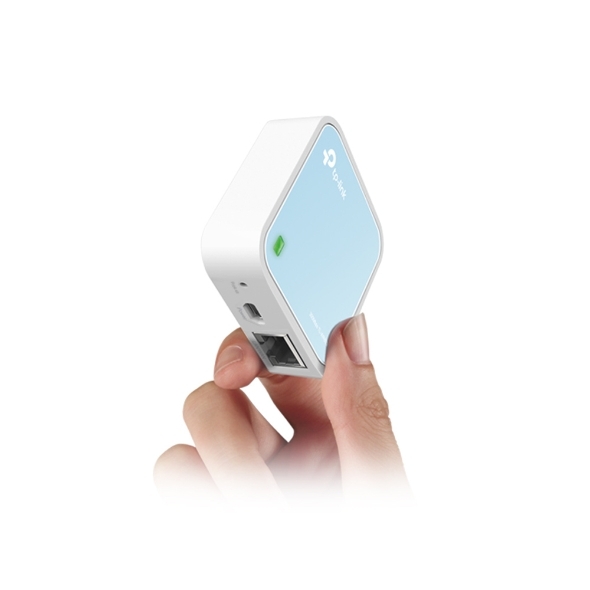

Pocket-size “ Ideal for home and travel use

Supports Router, Repeater, Client, AP and hotspot operation modes

Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation

Easy installation in minutes

HARDWARE FEATURES

Interface 1 10/100Mbps WAN/LAN Port

1 Micro USB Port

1 Reset Button

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)

Antenna Type On-Board

WIRELESS FEATURES

Frequency 2.4-2.4835GHz

Signal Rate 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 270M: -65dBm@10% PER

130M: -70dBm@10% PER

108M: -82dBm@10% PER

54M: -73dBm@10% PER

11M: -82dBm@8% PER

6M: -86dBm@10% PER

1M: -90dBm@8% PER

Transmit Power CE:

<20dBm(2.4GHz)

FCC:

<30dBm

Wireless Modes Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode

Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type Dynamic IP/Static IP/PPPoE/

PPTP/L2TP

Management Access Control

Local Management

Remote Management

DHCP Server, Client, DHCP Client List, Address Reservation

Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, Comexe, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)

Access Control Local Management Control, Host List, Access Schedule, Rule Management
