DESCRIPTION

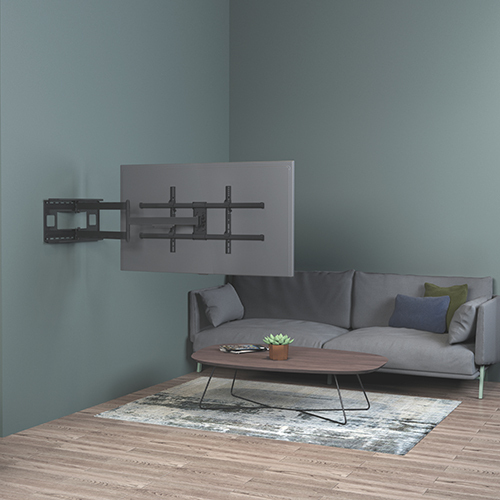

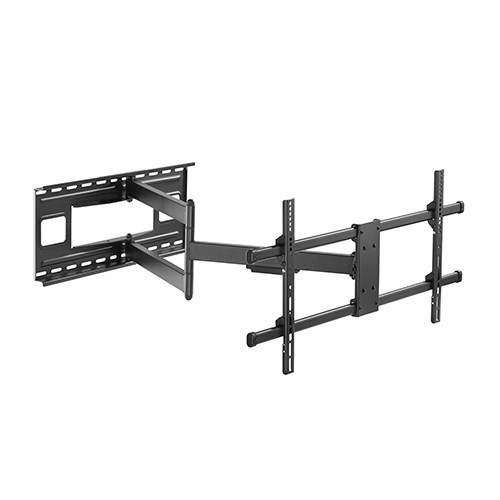

Featuring 1015mm (40')of arm extension and almost limitless swivel capability, the LPA49-483XLD offers maximum viewing range, meeting almost any mounting challenge. Heavy-duty arms provide strong support for larger and heavier TVs up to 50kg (110lbs).TV installation and removal is made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.

FEATURES

—�Extending Arm: provides a wide range of viewing angles

—�Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

—�Free-Tilting Design: for multiple monitor viewing angles

—�Quick-Release Latch: locks/unlocks the display in place

—�Cable Management: elegantly hides any cables that are attached to displays

SPECIFICATION

Product Category: Fixed TV Wall Mount

Rank: Standard

Material: Steel

Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet,VESA Panel THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059' cold-rolled sheet,Wall Plate THK=0.12' pickling sheet,VESA Panel THK=0.059' cold-rolled sheet)

Pipe Size: 50x25x1.5mm Square Steel Tube (2'x0.98'x0.059' Square Steel Tube)

Surface Finish: Powder Coating

Color: Fine Texture Black

Dimensions: 1015x885x430mm (40'x34.8'x16.9')

Fit Screen Size: 43'-80'

Fit Curved TV: Yes

Mounting Hole Pattern : VESA Only

VESA Compatible: 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400

Max. VESA: 819x410mm

Weight Capacity: 50kg (110lbs)

Strength Tested: 2 Times Approved

Profile: 82~1015mm (3.2'~40')

Tilt Range: +5°~-15°

Swivel Range: +90°~-90°

Screen Level: +3°~-3°

Screen Freely Tilting: Yes

Installation: Double Stud(406mm/450mm/600mm),Solid Wall

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

Direction Indicator: Yes

Cable Management: Yes

Bubble Level: Hook-on Bubble
