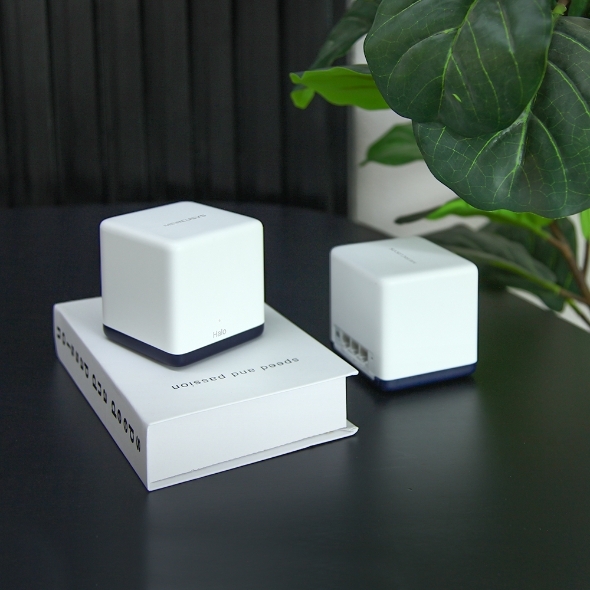

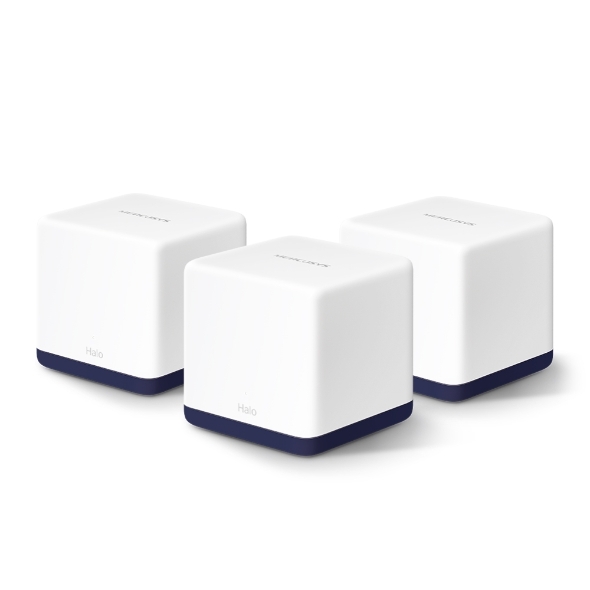

Mercusys Halo H50G(3-pack) AC1900 Whole Home Mesh Wi-Fi System

One Unified Network “ With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.

Seamless Roaming “ Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.

Whole Home Coverage “ Blanket up to 6,000 ft² (550 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.

1.9 Gbps Dual Band WiFi “ Halo H50G provides fast and stable connections for over 100 devices with speeds of up to 1,900 Mbps and works with major internet service providers (ISPs) and modems.

Easy App Control “ Use the MERCUSYS App to quickly set up and manage your WiFi.

Full Gigabit Ports “ 3× Gigabit ports per Halo unit for lightning-fast wired connections

Wireless Standards

IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz

Signal Rate

1300 Mbps on 5 GHz, 600 Mbps on 2.4 GHz

Reception Sensitivity

2.4 GHz:

11g 6Mbps:-96dBm

11g 54Mbps:-78dBm

11n HT20 MCS7:-76dBm

11n HT40 MCS7:-73dBm

5 GHz:

11a 6Mbps:-95dBm

11a 54Mbps:-77dBm

11ac VHT20 MCS8:-72dBm

11ac VHT40 MCS9:-67dBm

11ac VHT80 MCS9:-63dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK

Mesh protocol

802.11k/v/r

Software

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,

5 GHz Guest Network

Hardware

Dimensions (W X D X H)

(88 × 88 × 88 mm)

Interfaces

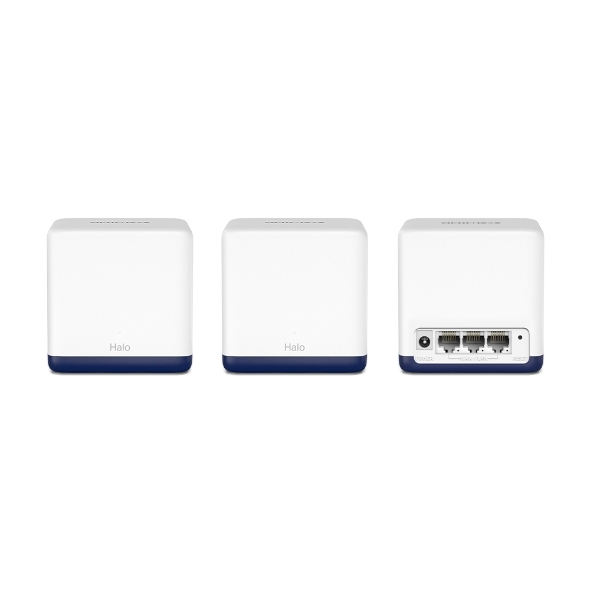

3× Gigabit Ports per Halo Unit

(WAN/LAN auto-sensing)

Button

Reset button

Package Contents

3× Halo H50G Units

1× RJ45 Ethernet Cable

3× Power Adapters

1× Quick Guide
