Description

Using airMAX ac technology, the PBE-5AC-GEN2 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade.


Management Wi-Fi Radio

The PowerBeam AC5 Gen2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

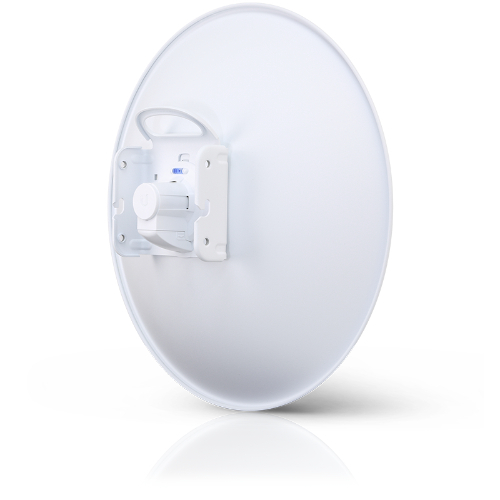

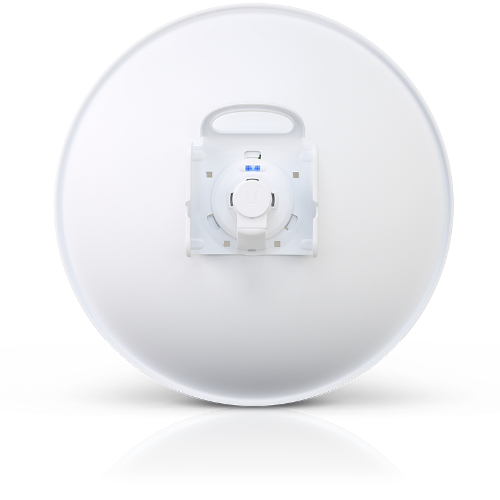

Improved Mounting and Surge Protection

Featuring enhanced protection against ESD events, the PowerBeam AC5 Gen2 offers a more robust mount with a convenient lifting loop or handle.

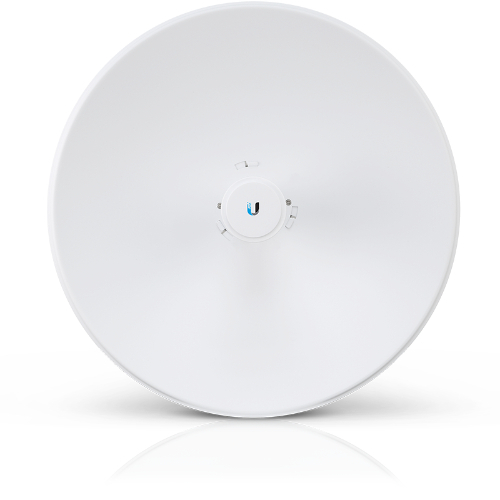

Integrated Radio Design

Ubiquitis InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.


Plug and Play Installation

The PowerBeam AC5 Gen2 requires no tools for assembly; only a single wrench is required for pole-mounting.


Processor Specs: MIPS 74Kc

Memory: 64 MB

Wireless transmission speed: Up to 450+ Mbps

Operating Frequency: Worldwide 2400-2483.5 5150 - 5875

Net. Interface: (1) 10/100/1000 Ethernet Port

Gain: 25 dBi

Max. Power Consumption: 8.5W

Wi-Fi Range: 15+ km

Dimensions: 420 x 420 x 230 mm (16.54 x 16.54 x 9.06')

Weight: 2.22 kg (4.89 lb)

Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

Mounting: Pole Mounting Kit Included

Operating Temperature: -40 to 70° C (-40 to 158° F)

Operating Humidity: 5 to 95% Noncondensing

Specifications
SKU NHU-PBE-5AC-GEN2
Barcode # 817882024488
Brand Ubiquiti
Shipping weight 4.3000kg
Shipping width 0.244m
Shipping height 0.584m
Shipping length 0.604m
Assembled length 5.040m
Assembled height 4.840m
Assembled width 1.440m

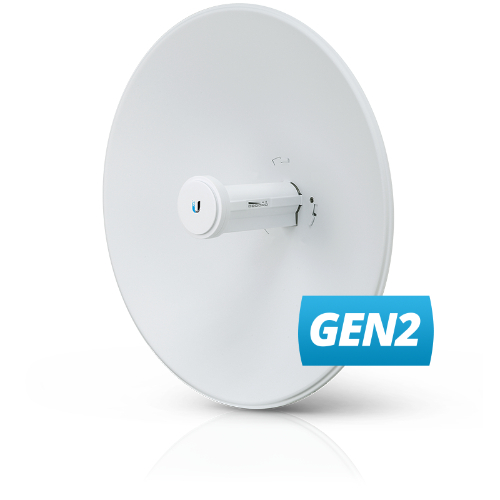

Ubiquiti Airmax PowerBeam 5AC-Gen2 5 GHz Point-to-Point (PtP) Bridge with Integrated Dish Reflector 450 Mbps throughput 5 GHz 15 km range

$213.44
RRP $229.00 save 7%

or 4 payments of $53.36 with Learn more

NHU-PBE-5AC-500
In Stock

Product Information

SKU:

NHU-PBE-5AC-GEN2

Brand:

Ubiquiti

Barcode #:

817882024488

Shipping Weigth:

4.3000kg

Warranty:

12
