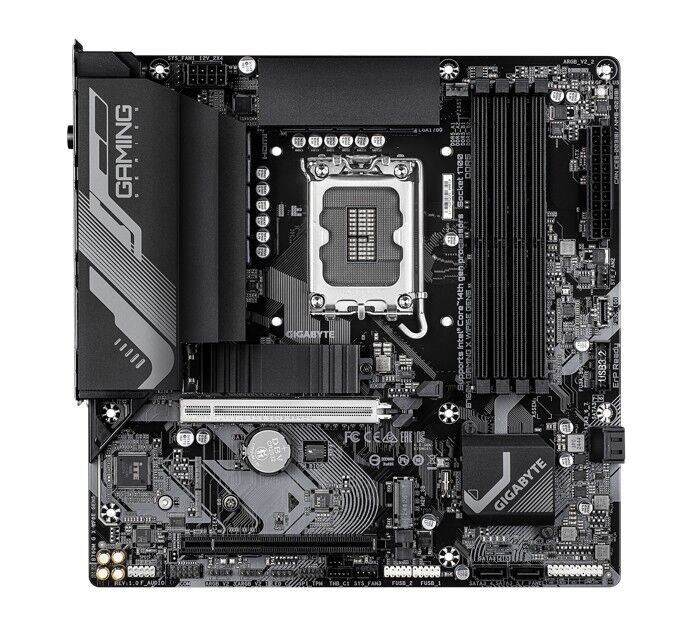

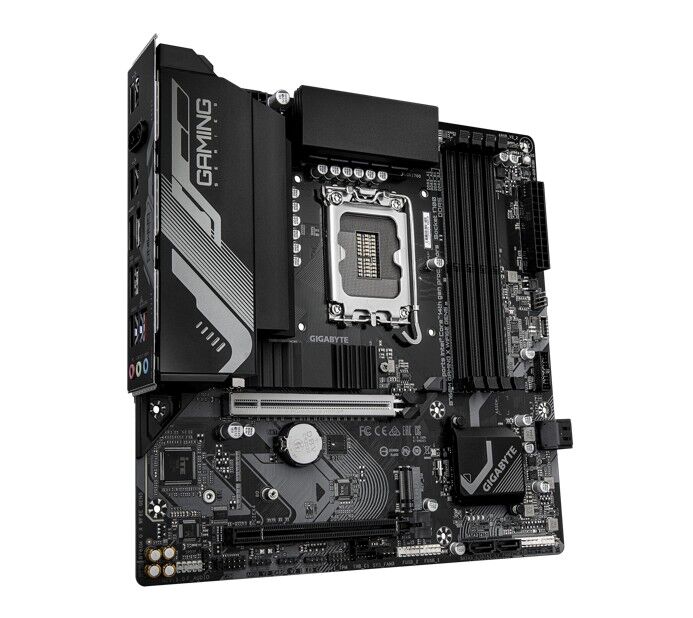

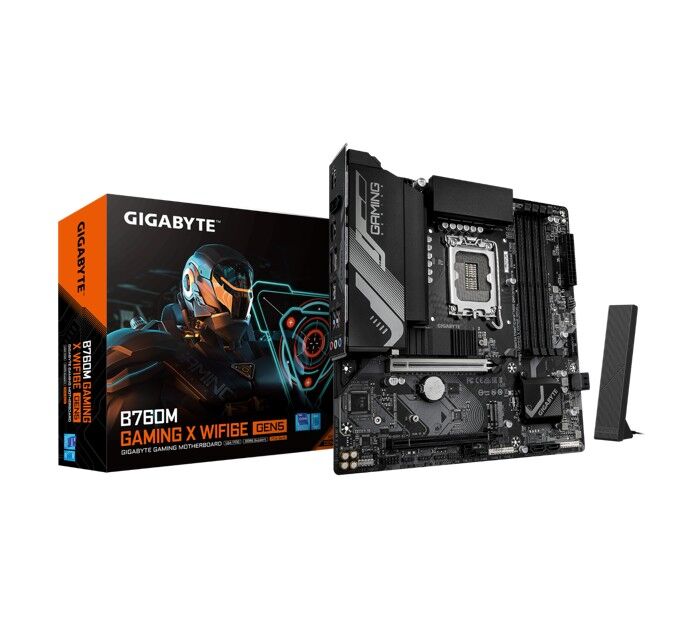

Gigabyte B760M GAMING X WIFI6E GEN5, Intel LGA 1700 m-ATX Motherboard, 4x DDR5 ~256GB, 2x PCI-E x16, 2x M.2, 4x SATA, 6x USB 3.2, 9x USB 2.0

Features:

PCIe Gen5 Performance : Perfect Sync to Win

Supports Intel Core„ 14th 13th 12 processors

Efficient Thermal : VRM Thermal Armor Advanced M.2 Thermal Guard

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal

EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design

PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Unparalleled Performance : Hybrid 811 Phases VRM Solution

Dual Channel DDR5 : 4DIMMs with XMP Memory Module Support

Fast Networks : 2.5GbE LAN Wi-Fi 6E 802.11ax

Extended Connectivity : Front USB-C 10Gb s, DP, HDMI

Next Generation Storage : 2PCIe 4.0 x4 M.2 Connectors

Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification:

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core„, Pentium Gold and Celeron Processors

L3 cache varies with CPU

Chipset

Intel B760 Express Chipset

Memory

14th and 13th Generation Intel Core„ i9 i7 Processors:

- Support for DDR5 5600 5200 4800 4400 MT s memory modules

13th Generation Intel Core„ i5 i3 and 12th Generation Intel Core„, Pentium Gold and Celeron Processors:

- Support for DDR5 4800 4400 MT s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

Support native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz

Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4 x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 22110 2280 PCIe 4.0 x4 x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb s connectors

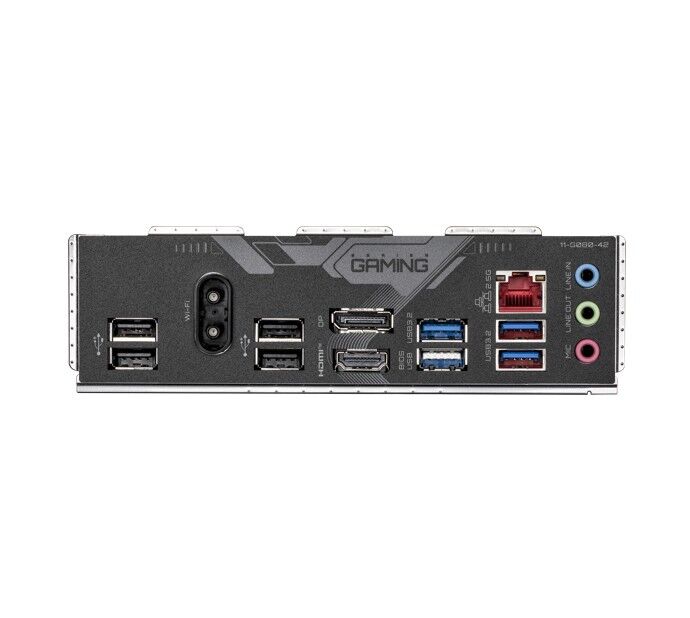

Back Panel Connectors

3 x USB 3.2 Gen 1 ports

5 x USB 2.0 1.1 ports

2 x antenna connectors (2T2R)

1 x HDMI port (Note)

1 x DisplayPort (Note)

1 x RJ-45 port

3 x audio jacks

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor 24.4cm x 24.4cm
