Description

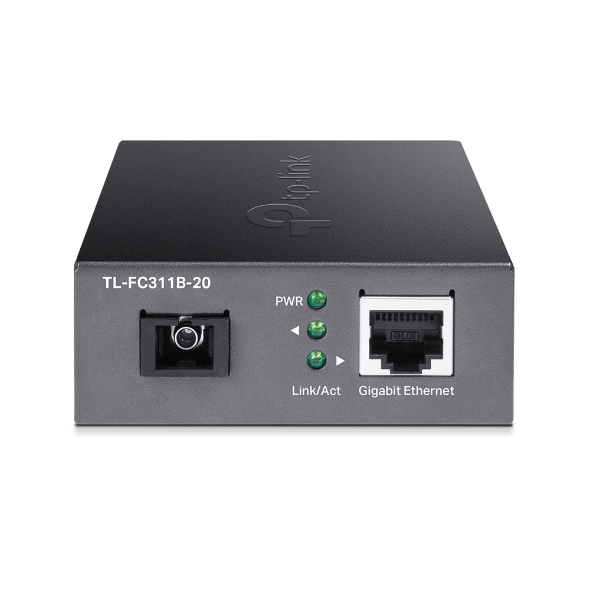

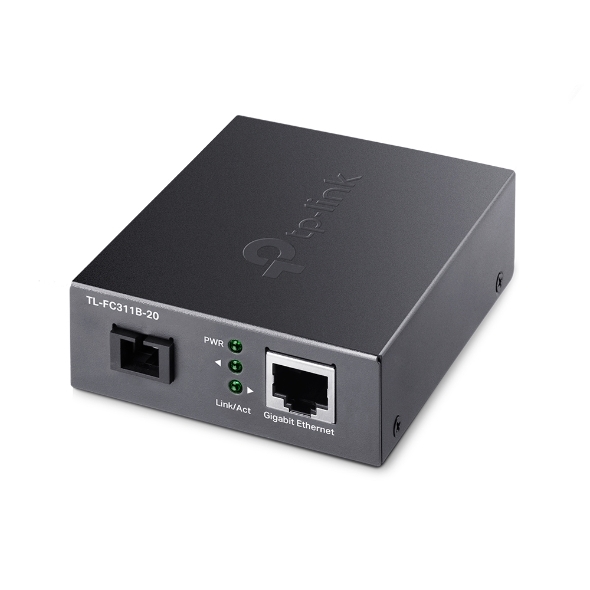

TP-Link TL-FC311B-20 Gigabit WDM Media Converter


1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX

Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

Adopts WDM technology, transmitting and receiving data on one single fibre

Extends fibre distance up to 20 km (for TL-FC311A-20 & TL-FC311B-20)


NETWORK

Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

ENVIRONMENT

Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)

Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)

Operating Humidity 10% to 90% RH non-condensing

Storage Humidity 5% to 90% RH non-condensing


HARDWARE FEATURES

Interface 1× Gigabit SC Fiber Port

1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

Network Media Single-mode Fiber

UTP category 5, 5e cable (maximum 100m)

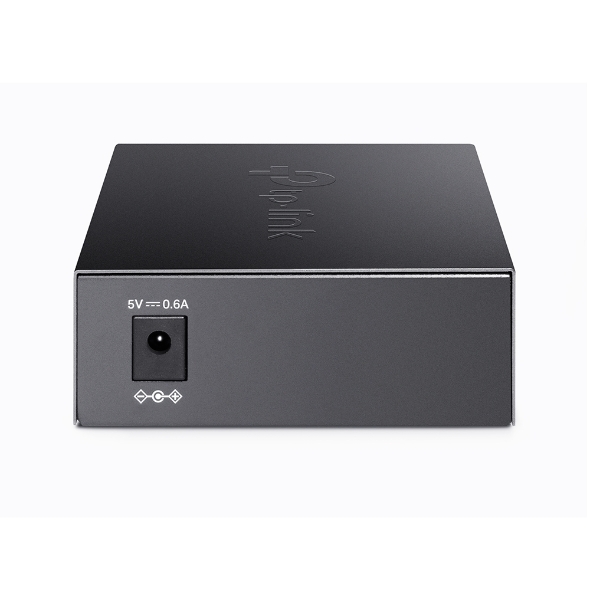

Power Supply External Power Adapter: 5 V/0.6 A

LED PWR, Link/Act

Dimensions ( W x D x H ) 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)

Wave Length 1310 nm TX

1550 nm RX


MEDIA CONVERTER & MODULE

Fiber Type 9/125 μm single-mode fiber

Specifications
SKU NWTL-FC311B-20
Barcode # 6935364072926
Brand TP-LINK
Shipping weight 0.9600kg
Shipping width 0.268m
Shipping height 0.166m
Shipping length 0.306m
Assembled length 2.060m
Assembled height 0.660m
Assembled width 1.680m

TP-Link TL-FC311B-20 Gigabit WDM Media Converter - IEEE 802.3u 1550nm 20KM 9 125 μm Single-Mode Fiber (Compatible with TL-FC311A-20)

$52.20
RRP $59.00 save 12%

or 4 payments of $13.05 with Learn more

In Stock

Product Information

SKU:

NWTL-FC311B-20

Brand:

TP-LINK

Barcode #:

6935364072926

Shipping Weigth:

0.9600kg

Warranty:

36
