Description

Output

Output power capacity:210 Watts / 350 VA

Max Configurable Power (Watts):210 Watts / 350 VA

Nominal Output Voltage:230V

Output Frequency (sync to mains): 47 - 63 Hz

Output Frequency (not synced):50/60 Hz +/-1 Hz

Topology:Standby

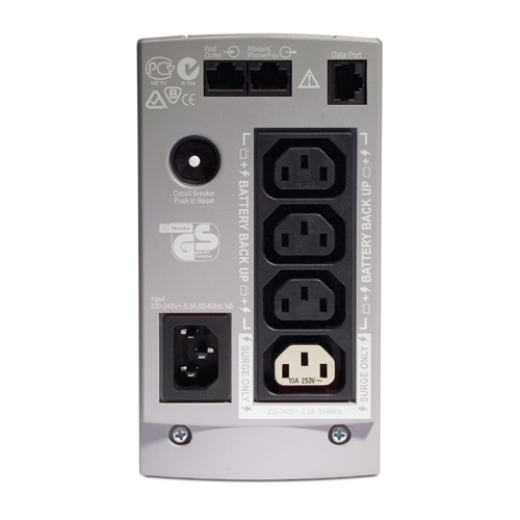

Output Connections:

—¦ (3) IEC 320 C13 (Battery Backup)

—¦ (1) IEC 320 C13 (selector_surgetitle)

Transfer Time: 6ms typical: 10ms maximum


Input

Nominal Input Voltage:230V

Input frequency:50/60 Hz +/- 3 Hz (auto sensing)

Input Connections:IEC-320-C14 inlet

Cord Length:1.83 meters

Input voltage range for main operations:180 - 266 V Number of Power Cords 2

Maximum Input Current:7.0 A


Batteries & Runtime

Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 6 hour(s)

Replacement Battery:RBC2

RBC Quantity:1

Battery Volt-Amp-Hour Capacity: 116

Runtime:View Runtime Graph View Runtime Chart

Efficiency: View Efficiency Graph


Communications & Management

Interface Port(s):Optional Simple Signalling RS232 cable, USB

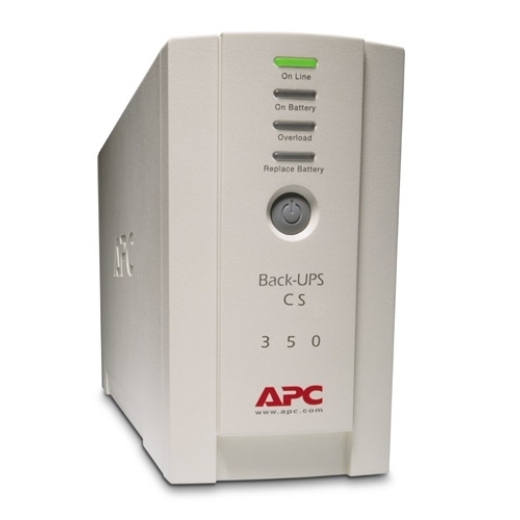

Control panel:LED status display with On Line: On Battery: Replace Battery and Overload indicators

Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm


Surge Protection and Filtering

Surge energy rating:310 Joules

Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector)

Filtering:Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449

Specifications
SKU UPAPCBK350EI
Barcode # 731304016342
Brand APC
Shipping weight 7.6500kg
Shipping width 0.341m
Shipping height 0.278m
Shipping length 0.468m
Assembled length 3.680m
Assembled height 1.780m
Assembled width 2.410m

APC Back-UPS 350VA 210W Standby UPS Tower 230V 10A Input 4x IEC C13 Outlets Lead Acid Battery User Replaceable Battery

$169.36
RRP $172.73 save 2%

or 4 payments of $42.34 with Learn more

Only 3 Left!

Product Information

SKU:

UPAPCBK350EI

Brand:

APC

Barcode #:

731304016342

Shipping Weigth:

7.6500kg

Warranty:

24
