Description

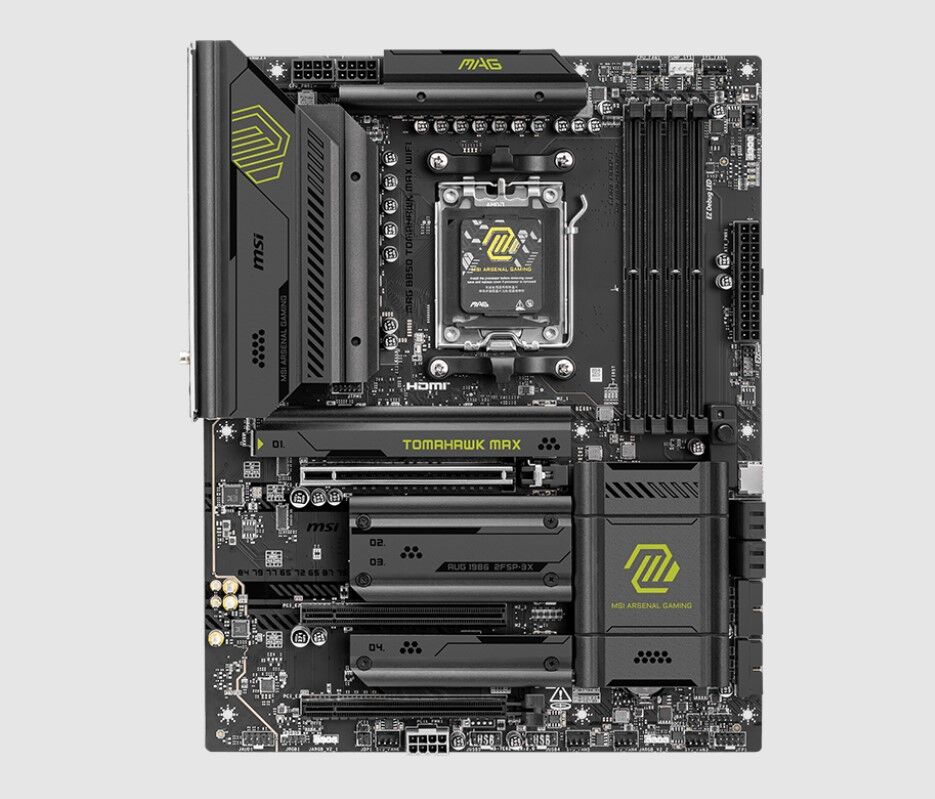

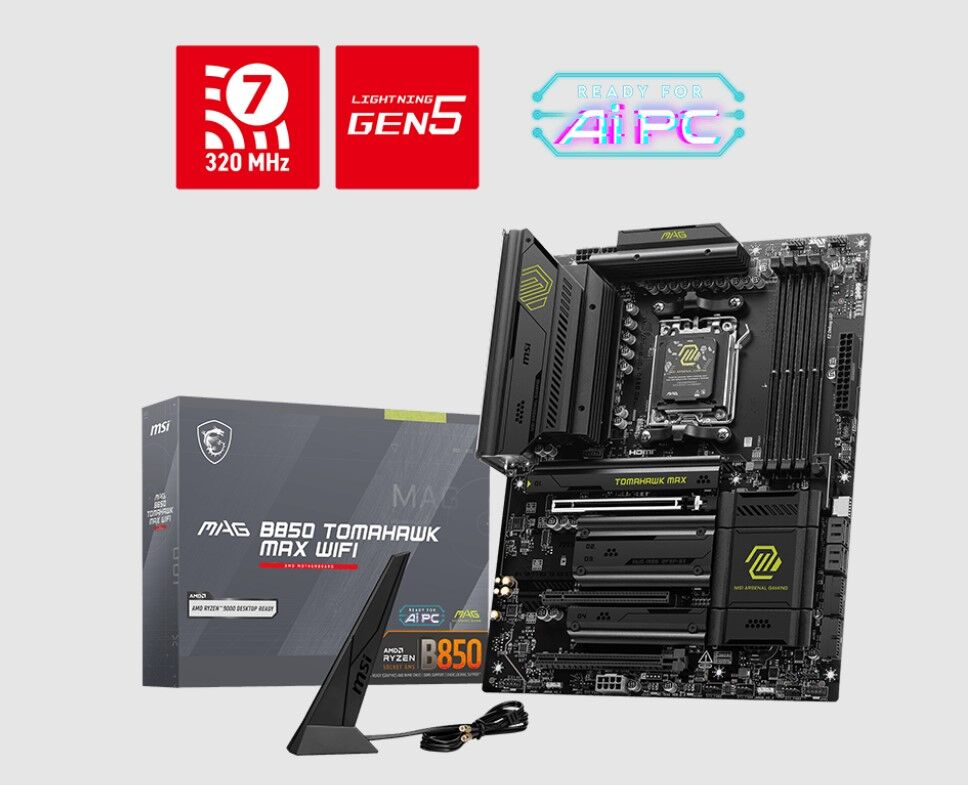

MSI MAG B850 TOMAHAWK MAX WIFI, AMD B850. 4x DDR5 256GB, 1x HDMI, 3x PCI-E x16 slot, 4x M.2, 8x USB 2.0, Wi-Fi 7


Chipset

AMD B850


CPU

Supports AMD Ryzen„ 9000 8000 7000 Series Desktop Processors

Socket AM5


Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB


Onboard Graphics

1x HDMI„

Support HDMI„ 2.1 FRL, maximum resolution of 8K 60Hz


Slot

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)


PCI_E1 slot

Supports PCIe 5.0 x16 (For Ryzen„ 9000 7000 Series processors)

Supports PCIe 4.0 x8 (For Ryzen„ 8700 8600 8400 Series processors)

Supports PCIe 4.0 x4 (For Ryzen„ 8500 8300 Series processor)


Storage

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110 2280 devices

M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 2260 devices

4x SATA 6G


M.2_1 slot

Supports up to PCIe 5.0 x4 (For Ryzen„ 9000 7000 Series processors)

Supports up to PCIe 4.0 x4 (For Ryzen„ 8000 Series processors)


M.2_2 slot

Supports up to PCIe 5.0 x4 (For Ryzen„ 9000 7000 Series processors)

Supports up to PCIe 4.0 x4 (For Ryzen„ 8000 Series processors)


RAID

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

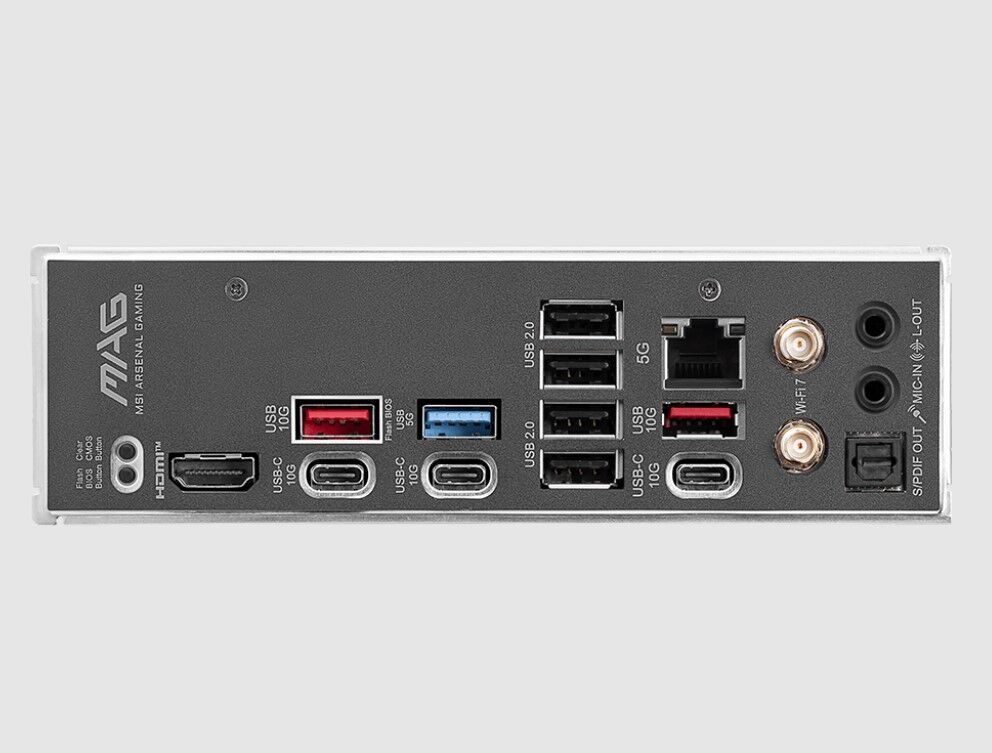

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

3x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)


LAN

Realtek 8126VB 5G LAN


WIRELESS LAN BLUETOOTH

Wi-Fi 7

Supports Bluetooth 5.4, MLO, 4KQAM


OPERATING SYSTEM

Support for Windows 11 64-bit


PCB Info ATX

243.84mmx304.8mm

Specifications
SKU MBM-B850TOMAHAWKMAXWF
Barcode # 4711377290623
Brand MSI
Shipping weight 1.9200kg
Shipping width 0.174m
Shipping height 0.368m
Shipping length 0.444m

MSI MAG B850 TOMAHAWK MAX WIFI, AMD B850. 4x DDR5 256GB, 1x HDMI, 3x PCI-E x16 slot, 4x M.2, 8x USB 2.0, Wi-Fi 7

$459.56

or 4 payments of $114.89 with Learn more

In Stock

Product Information

SKU:

MBM-B850TOMAHAWKMAXWF

Brand:

MSI

Barcode #:

4711377290623

Shipping Weigth:

1.9200kg
