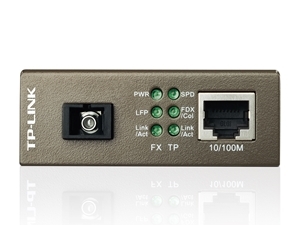

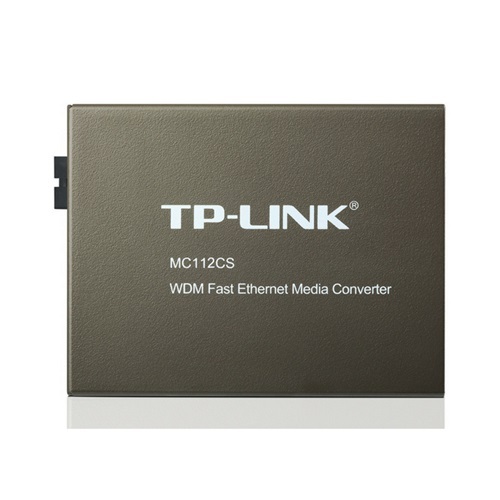

TP-Link MC112CS WDM Media Converter 10/100Mbps RJ45 to 100M single-mode SC fiber Tx:1310nm Rx:1550nm up to 20km

Complies with 802.3u 10/100Base-TX, 100Base-FX standards.

Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Adopts WDM technology, transmitting and receiving data on one single fiber

What This Product Does

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you.

Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector.

The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data.

So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINKs media converter MC111CS is just one of the examples to cooperate with MC112CS.

MEDIA CONVERTER & MODULE

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic Function Adopts WDM technology

Half/Full-Duplex transfer mode for FX port

Full Duplex Flow Control (IEEE 802.3x)

Half Duplex Flow Control (Backpressure)

Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Extends fiber distance up to 20km

Ports 1 100M SC/UPC port

1 100M RJ45 port (Auto MDI/MDIX)

Wave Length 1310nm Tx/1550nm Rx

WDM TX 1310nm

WDM RX 1550nm

Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-FX Single-mode Fiber

LED Indicators PWR, FDX/Col, Link/Act, SPD

Power Supply External Power Adapte
