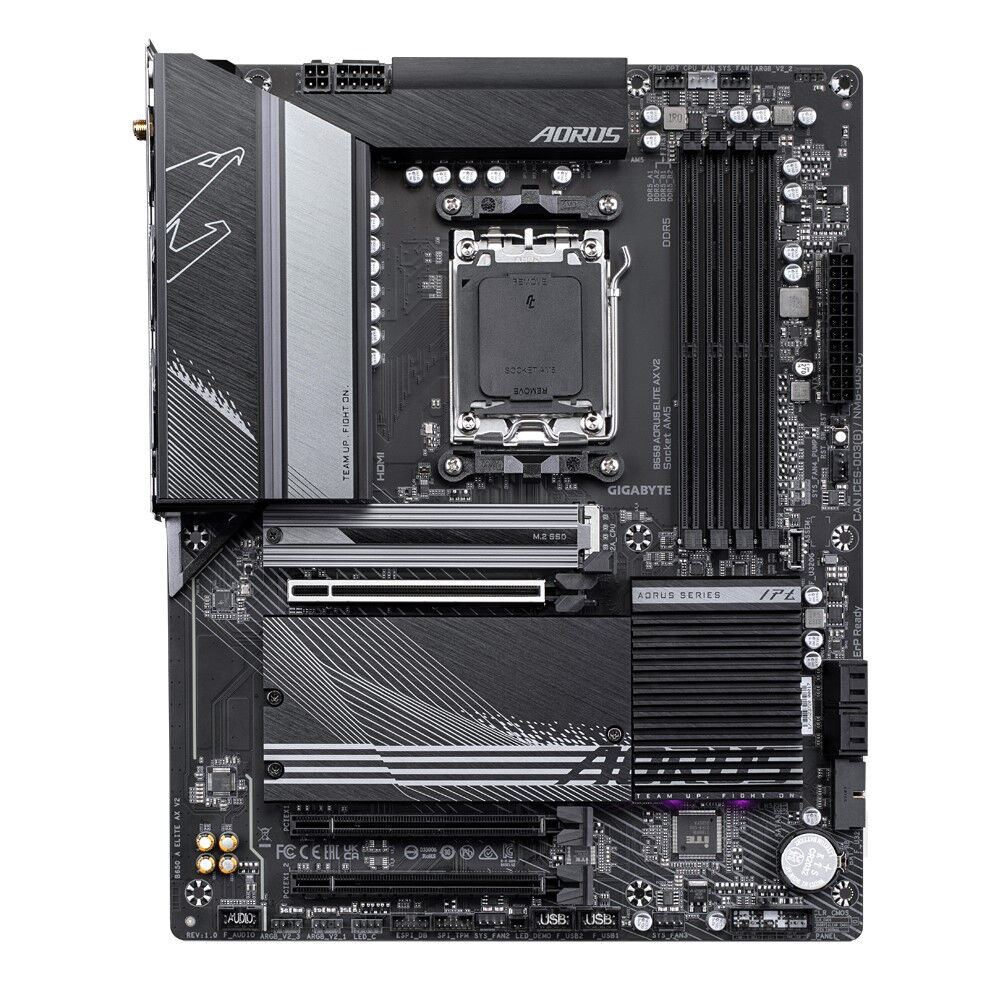

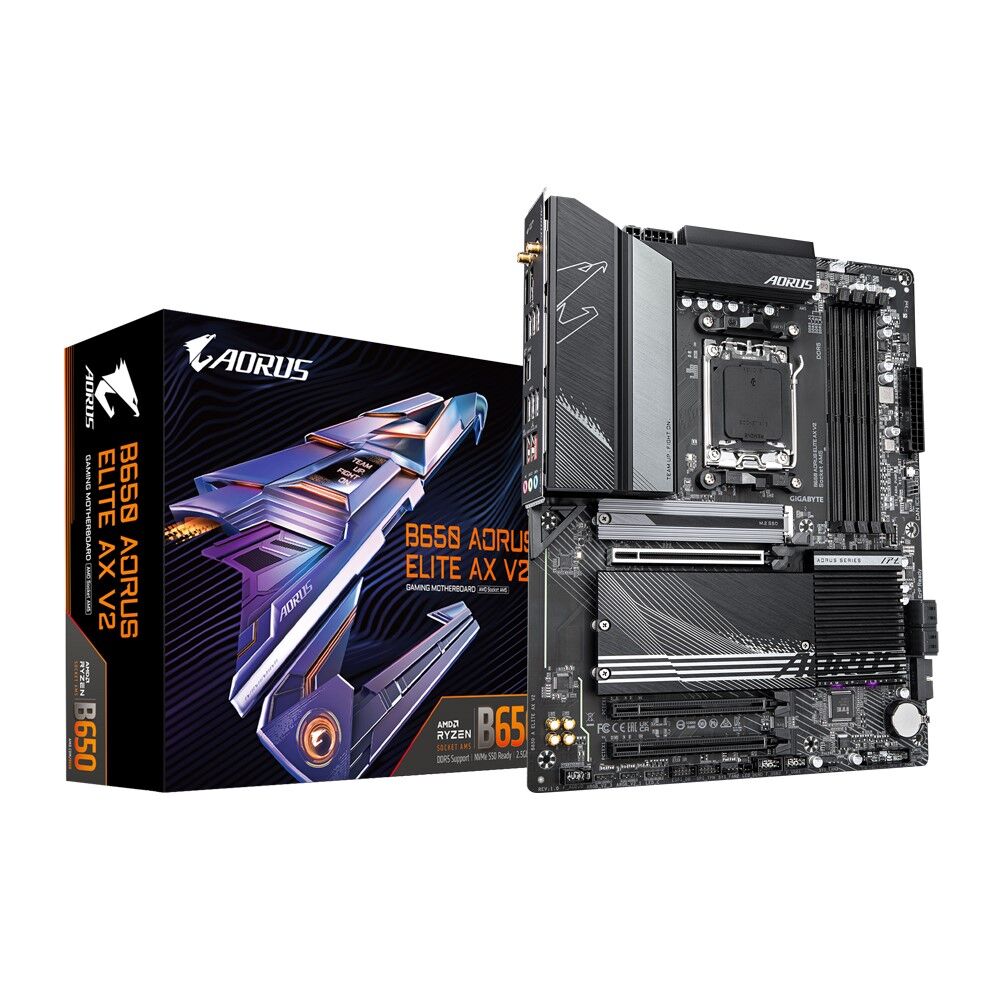

Gigabyte B650 AORUS ELITE AX 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,3x PCIe x16, 3x M.2, 4x SATA 6, 7x USB 3.2, 1x USB-C, 4x USB 2.0

CPU

AMD Socket AM5, support for: AMD Ryzen„ 7000 Series Processors

Chipset

AMD B650

Memory

Support for DDR5 6600(OC) 6400(OC) 6200(OC) 6000(OC) 5600(OC) 5200 4800 4400 MT s memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO„) and Extreme Memory Profile (XMP) memory module

Onboard Graphics

Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 3840x2160 144 Hz

Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

Support native HDMI 2.1 TMDS compatible ports.

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1 2)

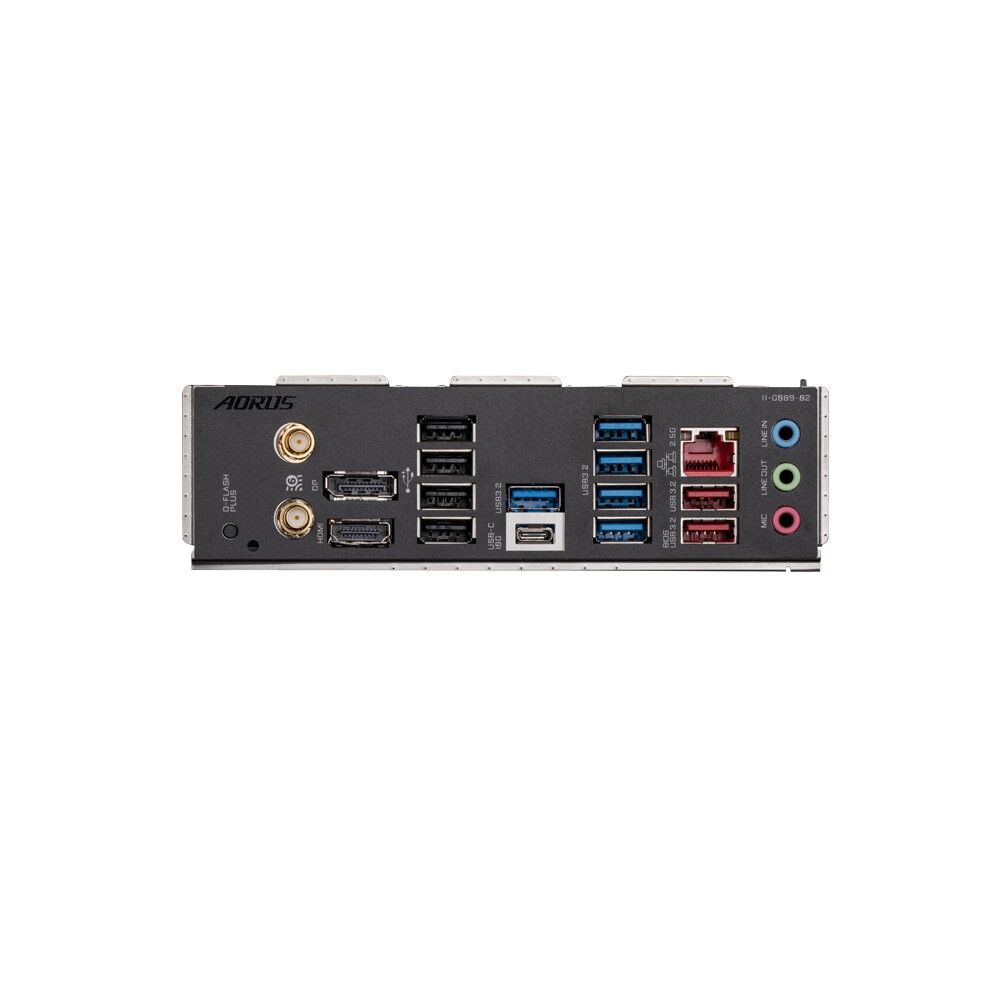

USB

CPU:

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU USB 2.0 Hub:

4 x USB 2.0 1.1 ports on the back panel

Chipset:

1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0 1.1 ports available through the internal USB headers

ChipsetUSB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports on the back panel

Form Factor

ATX Form Factor 30.5cm x 24.4cm
