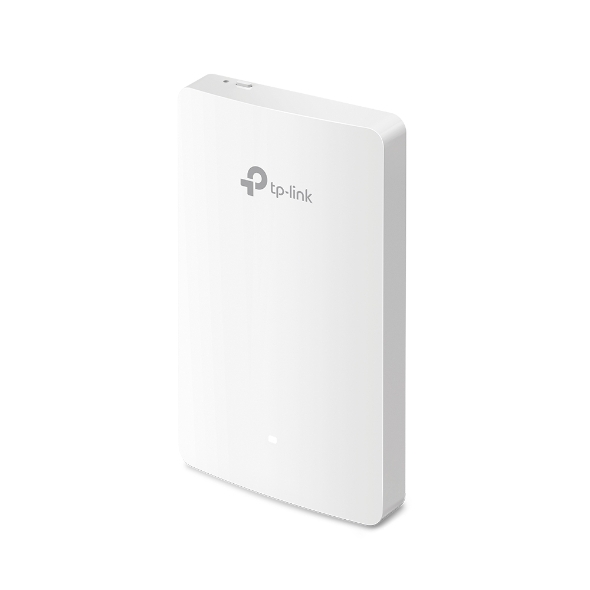

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.

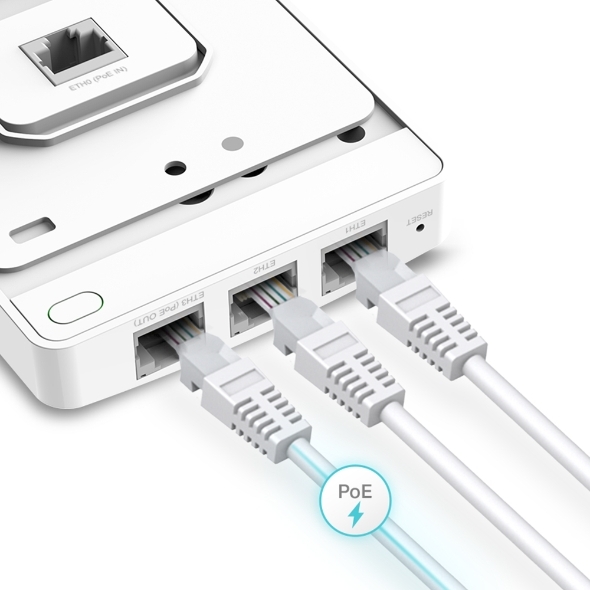

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for a wired device.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)¡, Centralised Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

HARDWARE FEATURES

Interface Uplink: 10/100/1000 Mbps Ethernet Port*1

Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)

Physical Security Lock Yes

Button Reset

Power Supply 802.3af/802.3at PoE

Power Consumption 9.8 watts /24.4 watts (PoE Out Included)

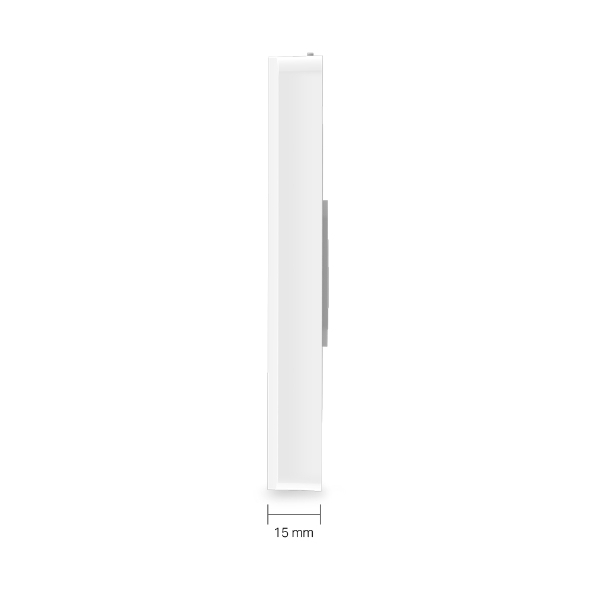

Dimensions 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)

Antenna 2 Dual-Band Antennas

2.4GHz: 2*4dBi

5GHz: 2*4dBi

Mounting Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/b/g/n/ac

Frequency 2.4GHz and 5GHz

Signal Rate 5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

Wireless Functions 16 SSIDs（Up to 8 SSIDs on each band）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

Band Steering
