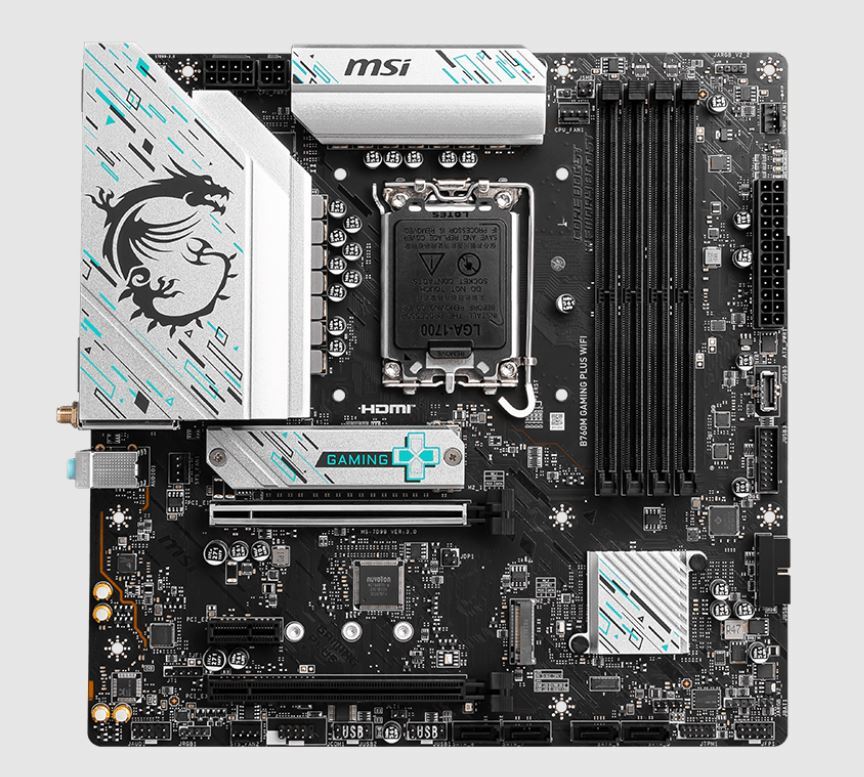

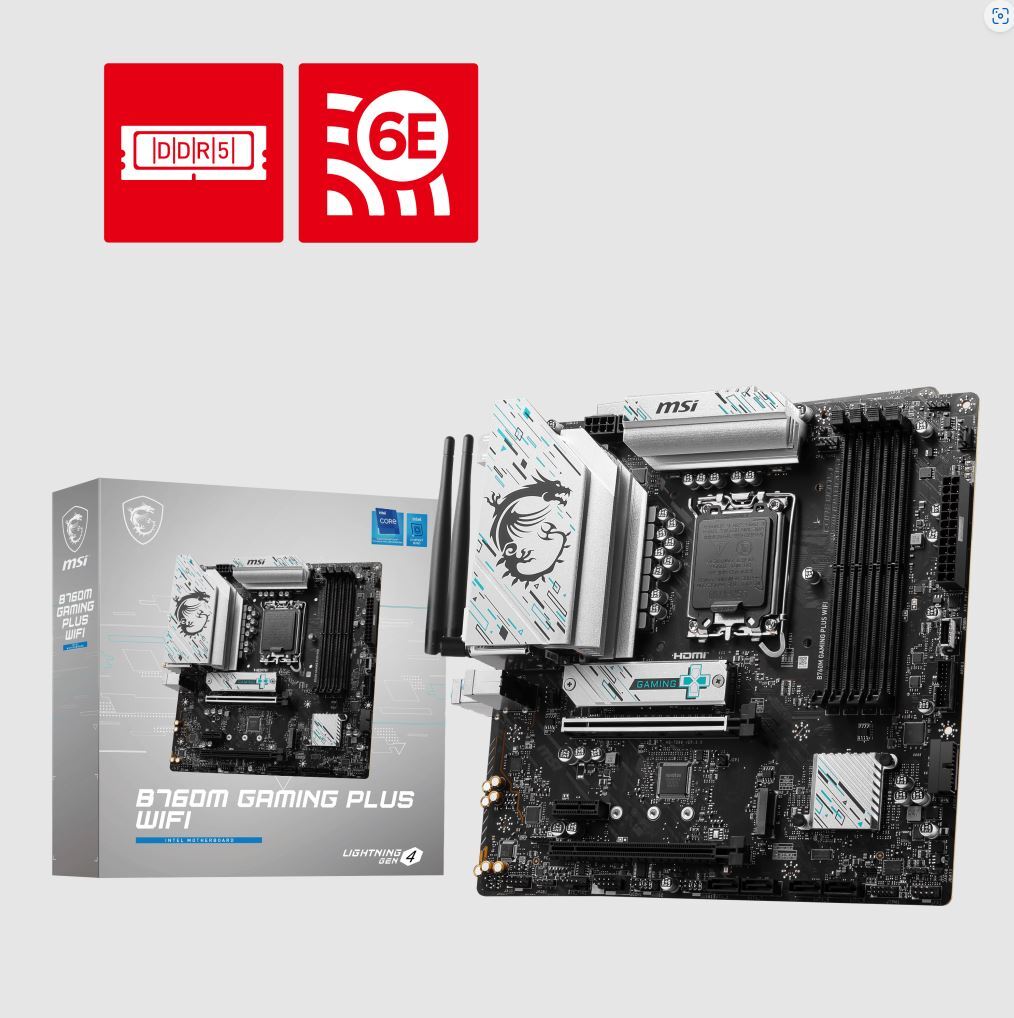

pMSI B760M GAMING PLUS WIFI ATX Motherboard 4x DDR5~192GB 5x PCI-E x 16 2x M.2 4x SATA 2x USB 3.2 4x USB 2.0 1 USBx C
pp
ppFEATURES:
ppSupports 12th 13th Gen Intel Core„ Pentium Gold and Celeron processors for LGA 1700 socket
ppSupports DDR5 Memory Dual Channel DDR5 6800MHz (OC)
ppEnhanced Power Design: 121 Duet Rail Power System with P-PAK 8-pin 4-pin CPU power connectors Core Boost Memory Boost
ppPremium Thermal Solution: Extended Heatsink MOSFET thermal pads rated for 7W mK additional choke thermal pads are built for high performance system and non-stop gaming experience
ppLightning Fast Game experience: PCIe 4.0 slot Lightning Gen 4 x4 M.2 with M.2 Shield Frozr Turbo USB 3.2 Gen 2 10G
pp2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure stable and fast network connection
ppHigh Quality PCB: 6-layer PCB made by 2oz thickened copper
ppAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
pp
ppSPECIFICATIONS:
ppCHIPSET INTEL B760
ppCPU SUPPORT Supports 12th 13th Gen Intel Core„ Processors Pentium Gold and Celeron Processors
ppLGA 1700
ppMEMORY 4x DDR5 Maximum Memory Capacity 192GB
ppMemory Support DDR5 6800(OC) 6600(OC) 6400(OC) 6200(OC) 6000(OC) 5800(OC) 5600(JEDEC) 5400(JEDEC) 5200(JEDEC) 5000(JEDEC) 4800(JEDEC) MHz
ppMax. overclocking frequency:
pp 1DPC 1R Max speed up to 6800 MHz
pp 1DPC 2R Max speed up to 6400 MHz
pp 2DPC 1R Max speed up to 6000 MHz
pp 2DPC 2R Max speed up to 5600 MHz
pp
ppONBOARD GRAPHICS 1x HDMI„
pp 1x DisplayPort
pp
ppEXPANSION SLOT 5x PCI-E x16 slot
ppSTORAGE 2x M.2 4x SATA 6G
pp
ppUSB 4x USB 2.0 (Rear)
pp 2x USB 3.2 Gen2 Type A (Rear)
pp 1x USB 3.2 Gen2 Type C (Rear)
ppPCB DIMENSION (W — L) ATX 243.84mmx304.8mm p
