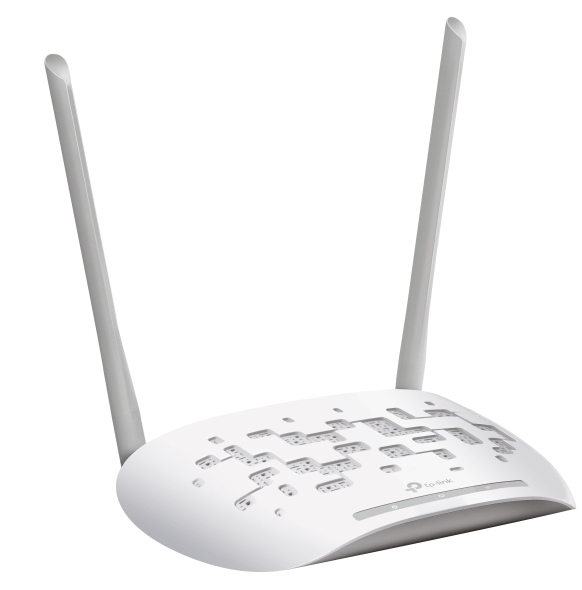

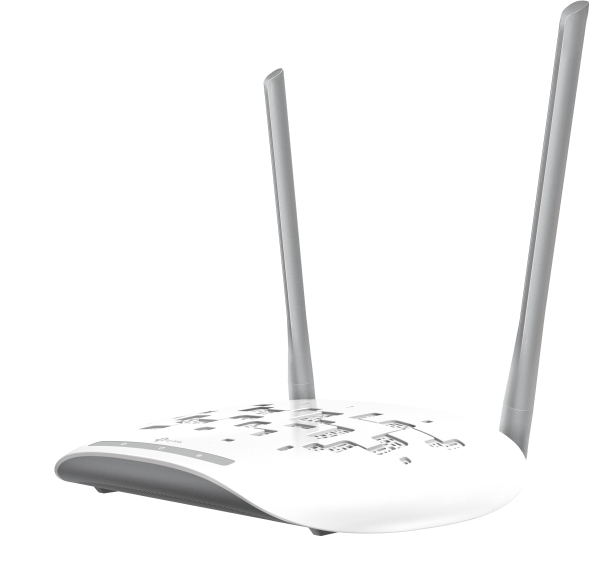

TP-Link TL-WA801N 300Mbps Wireless N Access Point

300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming

Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes

Protects your home network with WPA2 encryption and makes quick connection with the push of a button

Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

HARDWARE FEATURES

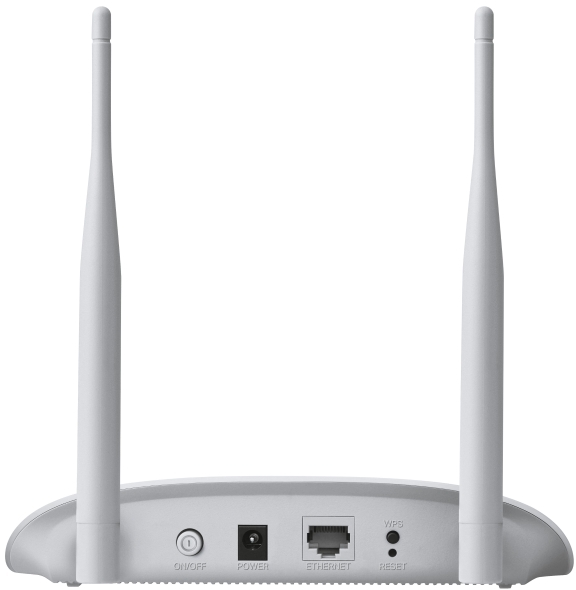

Interface 1× 10/100 M Ethernet Port(RJ45)

Support Passive PoE

Button Power On/Oï¬ Button, WPS Button, Reset Button

External Power Supply 9VDC / 0.6A

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)

Antenna Type 2 Fixed Omni-Directional Antennas

WIRELESS FEATURES

Frequency 2.4 GHz

Signal Rate 300 Mbps at 2.4 GHz

Reception Sensitivity 11g 6Mbps: -90dBm

11g 54Mbps: -77dBm

11n HT20 MC7: -73dBm

11n HT40 MC7: -70dBm

Transmit Power CE: <15dBm; FCC: <20dBm

Wireless Modes AP Mode

Multi-SSID Mode

Client Mode

Range Extender Mode

Wireless Functions Enable/Disable Wireless Radio, WMM, Short GI, AP

Isolation, Wireless Statistics, Throughput Monitor

Wireless Security WEP, WPA/WPA2, WPA/WPA2-PSK encryptions

Quality of Service WMM

Management SNMP

Advanced Functions Up to 30 meters Passive PoE is supported

OTHERS

Certification CE, FCC, RoHS

Package Contents Wireless Access Point TL-WA801N

Power Adapter

Passive PoE Power Injector

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista„/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an Internet Service Provider (for Internet access)

Environment Operating Temperature: 0°C~40°C (32°F ~104°F)

Storage Temperature: -40°C~70°C (-40°F ~158°F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90
