Description

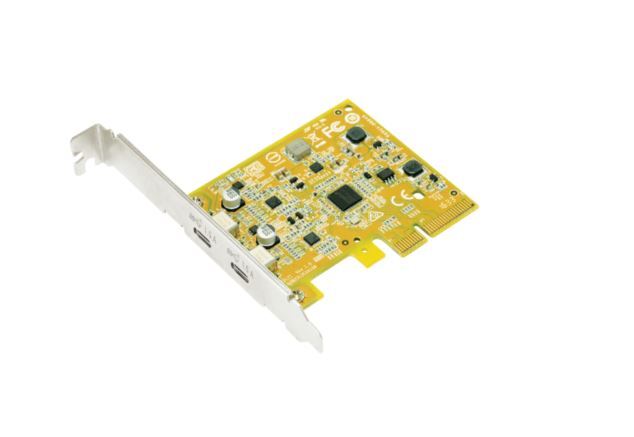

SUNIX USB2312C is a 2 port SuperSpeed+ USB 3.1 PCI Express card, and its compliant with the PCI Express Revision 2.0 & 3.0 for host PC system. Based on USB Type-C pure DFP (Downstream Facing Port) mode, it works up to 10 Gbps for data transfer when connecting to USB 3.1 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB 3.1 performance is 2 times faster than USB 3.0 and 20 times faster than USB 2.0 connectivity.


With USB Type-C Receptacle, SUNIX USB2312C sports reversible plug orientation and cable direction, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. The new connector is smaller and thinner design, but drive higher power output capacity to USB device. SUNIX USB2312C supports 5VDC@1500mA power output to USB device with over current protection on each USB port.


BUS PCI Express Revision 2.0 & 3.0, Dual-Lane (x2)

Controller PCI Express USB 3.1 Host controller, Asmedia ASM3142

USB Standard eXtensible Host Controller Interface (xHCI) Rev1.1

Interface Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1

Speed SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps)

No. of Port 2-port

PCB Connector USB 3.1 USB Type-C port (Downstream Facing Port)

Protection ±15KV IEC61000-4-2 Air Gap Discharge

Source PCI Express bus power

Output Capacity

USB Type-C Port : +5VDC / 1.5A

Note:

* USB Power Delivery Protocol does NOT support.

* Built-in over current protection on each USB port.

* Maximum total power output depends on the capacity of users power supply unit


Power Consumption 1.1 W @ 3.3V (board only without power output to USB device)

Windows Windows 7 (X86/X64)

Windows 8.x / 10 (X86/X64) (Windows in-box driver)

Linux Linux 4.6 or later


one extra low profile bracket added inside onto each box pack

Specifications
SKU IDSUN-USB2312C
Barcode # 4715109710991
Brand Sunix
Shipping weight 0.5000kg
Assembled length 0.202m
Assembled height 0.042m
Assembled width 0.176m

(LS) Sunix 2 port USB3.1 Enhanced superSpeed PCIe 3.0 Dual Lane with Type-C Receptable, eXtensible Host Controller Interface (xHCI) Rev1.1

$61.71
RRP $178.20 save 65%

or 4 payments of $15.43 with Learn more

Sold Out

Product Information

SKU:

IDSUN-USB2312C

Brand:

Sunix

Barcode #:

4715109710991

Shipping Weigth:

0.5000kg
