Essentials

Product Collection Intel NUC Kit with 12th Generation Intel Core„ Processors

Code Name Products formerly Wall Street Canyon

Supported Operating Systems Windows 11 Home* | Windows 11 Pro* | Windows 10 Home* | Windows 10 IoT Enterprise* | Windows 10 Pro* | Red Hat Linux* | Ubuntu 20.04 LTS*

Board Form Factor UCFF (4' x 4')

Socket Soldered-down BGA

Internal Drive Form Factor M.2 SSD

# of Internal Drives Supported 2

TDP 20 W

DC Input Voltage Supported 12-20 VDC

Processor Included Intel Core„ i3-1220P Processor (12M Cache | up to 4.40 GHz)

Total Cores 10

Total Threads 12

Lithography Intel 7

Max Turbo Frequency 4.40 GHz

Embedded Options Available No

Max Memory Size (dependent on memory type) 64 GB

Memory Types DDR4-3200 1.2V SODIMMs

Max # of Memory Channels 2

Max # of DIMMs 2

ECC Memory Supported ¡ No

Integrated Graphics ¡ Yes

Graphics Output 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C

# of Displays Supported ¡ 4

PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

PCI Express Configurations ¡ PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)

M.2 Card Slot (wireless) 22x30 (E)

M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)

# of USB Ports 4

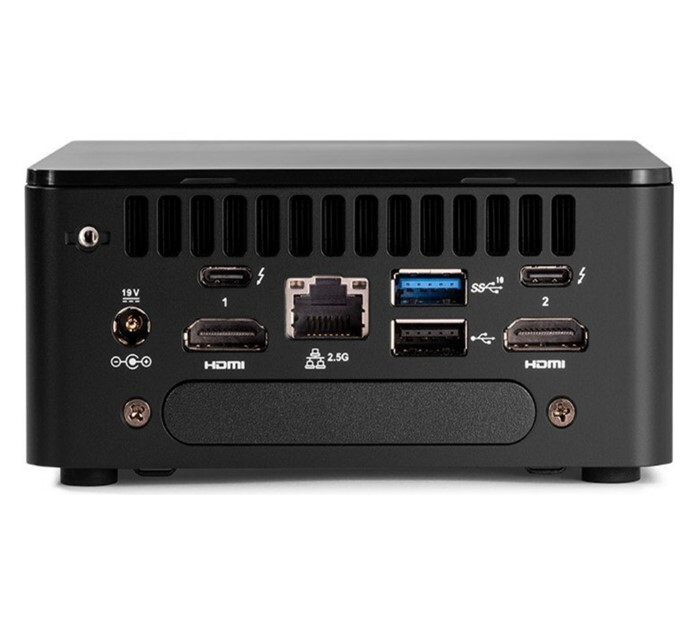

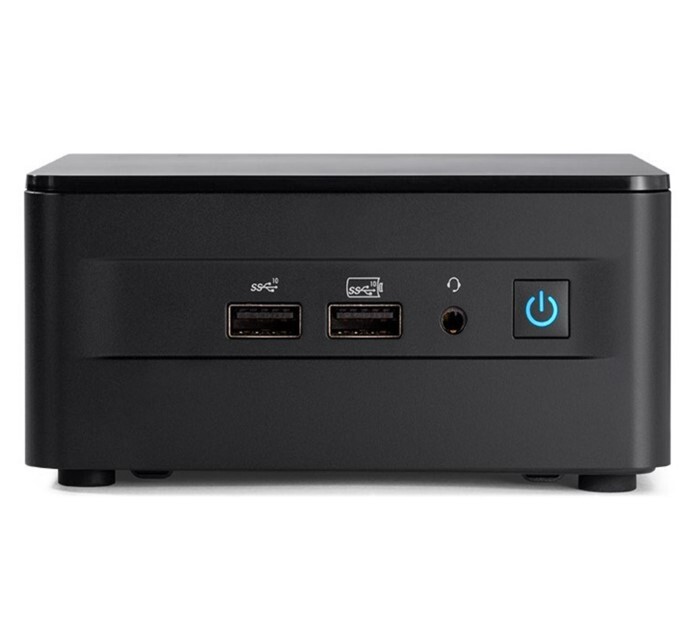

USB Configuration Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers)

Serial Port via Internal Header No

Audio (back channel + front channel) Front panel: 3.5mm headphone/mic jack

Integrated LAN Intel Ethernet Controller i225-V

Integrated Wireless¡ Intel Wi-Fi 6E AX211(Gig+)

Integrated Bluetooth Yes

Additional Headers Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector

# of Thunderbolt„ Ports 2x Thunderbolt„ 4
