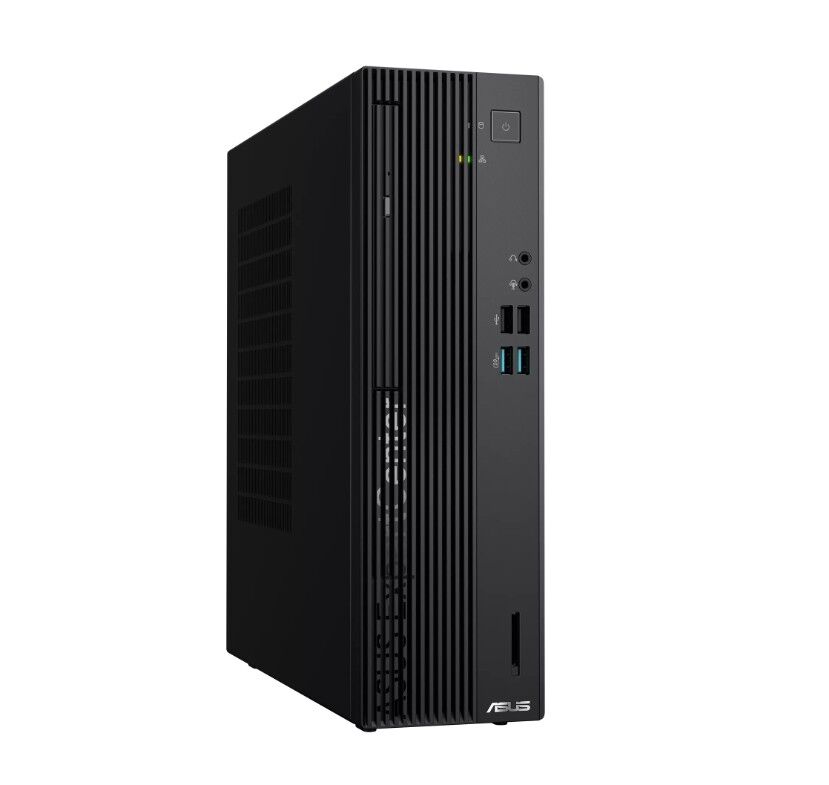

ASUS INTEL I5-14500 B760 8GB DDR5 U-DIMM 2 512G 2280 PCIE G4 SSD 330W 80PLATINUM WD KBMOUSE TPM 2.0 CARD READER WIFI6E 22 WWBT_INTEL WIN11 PRO 3Y ON-SITE

Part No 90PF05M1-M01V50

Sales Model Name D501SERES-514500068X

EAN Code 4711636078962

UPC Code 199291078963

WEEE 5.997

BASE UNIT VSPF05M1-BU0010

Size 8.6L

Color Black

Form Factor Small form factor

Operating System Windows 11 Pro - ASUS recommends Windows 11 Pro for business

Office 1-month trial for new Microsoft 365 customers. Credit card required.

Processor ftIntel Core„ i5-14500 Processor 2.6GHz (24MB Cache, up to 5.0GHz, 14 cores, 20 Threads)

N A ft

Chipset Intel B760 Chipset

DIMM Memory 8GB DDR5 U-DIMM 2

Memory Speed Memory speed is 5600MHz, but run at 4000~4400MHz.

Memory Max. 64GB

Integrated GPU Intel UHD Graphics 770

Storage 512GB M.2 2280 NVMe„ PCIe 4.0 SSD

Optical Drive Without optical drive

LAN Intel WGI219V 10 100 1000 Mbps, non-vPro

Audio High Definition 7.1 Channel Audio

Wireless Wi-Fi 6E(802.11ax) (Dual band) 22 Bluetooth 5.4 Wireless Card

Power Supply 330W power supply (80 Platinum, peak 660W)

Rear I O Port ft1x RJ45 Gigabit Ethernet

1x HDMI 1.4

1x VGA Port

1x 7.1 channel audio (microphone, line-out, Line-in)

1x Kensington lock

1x Padlock loop

2x USB 2.0 Type-A

2x USB 3.2 Gen 1 Type-A

1x FLEX I O port (DP1.4 HBR3) ft

Front I O Port ft1x Headphone

1x 3.5 mm combo audio jack (Mic in or Headphone out)

2x USB 2.0 Type-A

2x USB 3.2 Gen 2 Type-A

1x 2 in 1 card reader SD MMC ft

Drive Bay ft2.5 ft ft x 1

3.5 ft ft x 1 ft

Serial ATA 4 x SATA 6.0Gb s ports

Expansion Slot(includes used) ft1x PCIe 4.0 x 16

2x PCIe 3.0 x 1

1x M.2 2230 connector for storage

1x M.2 2280 connector for storage

1x M.2 connector for WiFi

2x DDR5 U-DIMM slot ft

Keyboard Mouse ftWired keyboard (USB)

Wired optical mouse (USB) ft

Accessory Intrusion cable (Intrusion Switch)

Dimension (WxDxH) 09.30 x 29.60 x 30.90 cm (3.66 ft x 11.65 ft x 12.17 ft)

Weight 06.00 kg (13.23 lbs)

My ASUS features ftSystem diagnosis

Fan profile

AppDeals ft

Built-in Apps ftMyASUS

ASUS Business Manager ft

Adobe Creative Cloud Hard Bundle One-Month Membership of Adobe Creative Cloud All Apps, Individual The redemption duration from September 15, 2021 to November 15, 2022.

Security ftHDD User Password Protection and Security

Kensington Security Slot„(7x 3mm)

McAfee 30 days free trial

Padlock loop

Trusted Platform Module (Firmware TPM) ft

Antivirus N A

TPM Trusted Platform Module (TPM) 2.0

Ecolabels Compliances ftEPEAT Gold (selected SKU only)

All ExpertCenter models are EPEAT Silver certified. Some models outperform to achieve EPEAT Gold certification. Contact local sales representative for details.

EPEAT Silver

Energy star 8.0

REACH

RoHS ft

Base Warranty 3Y OnSite Service

Recommended Warranty Package Part number Extension and or upgrade service from base warran ft

If you would like to know the details, please contact your sales teams. ft

Sustainable Material_Front bezel 65pct PCR recycled plastic front bezel
