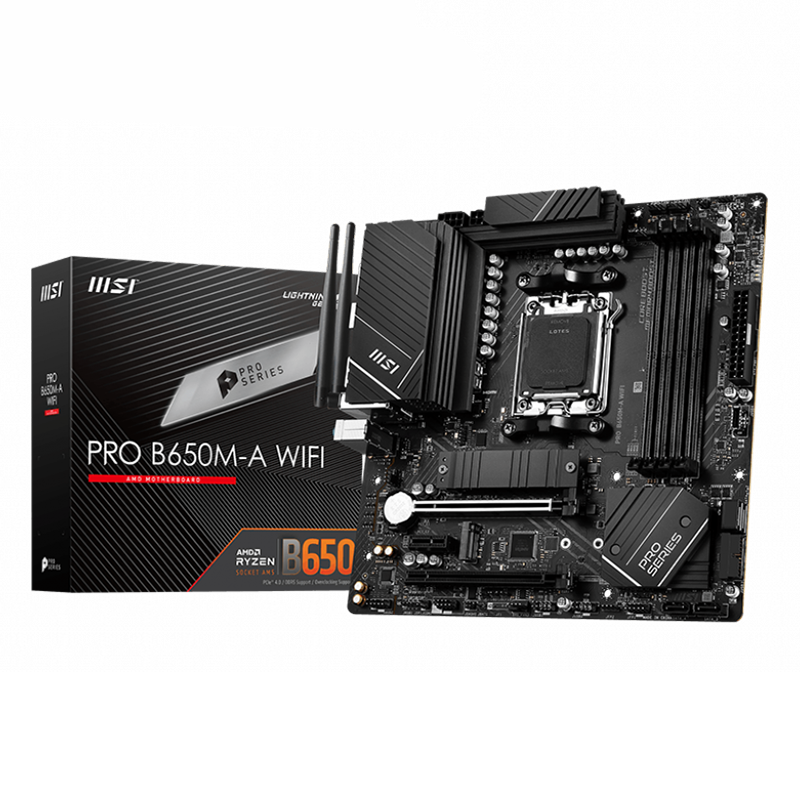

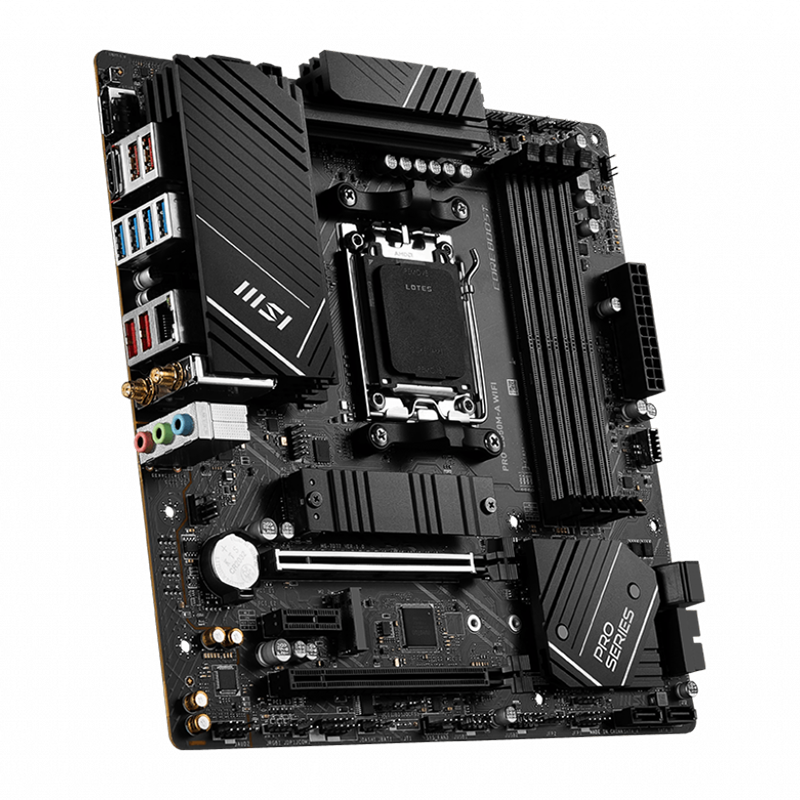

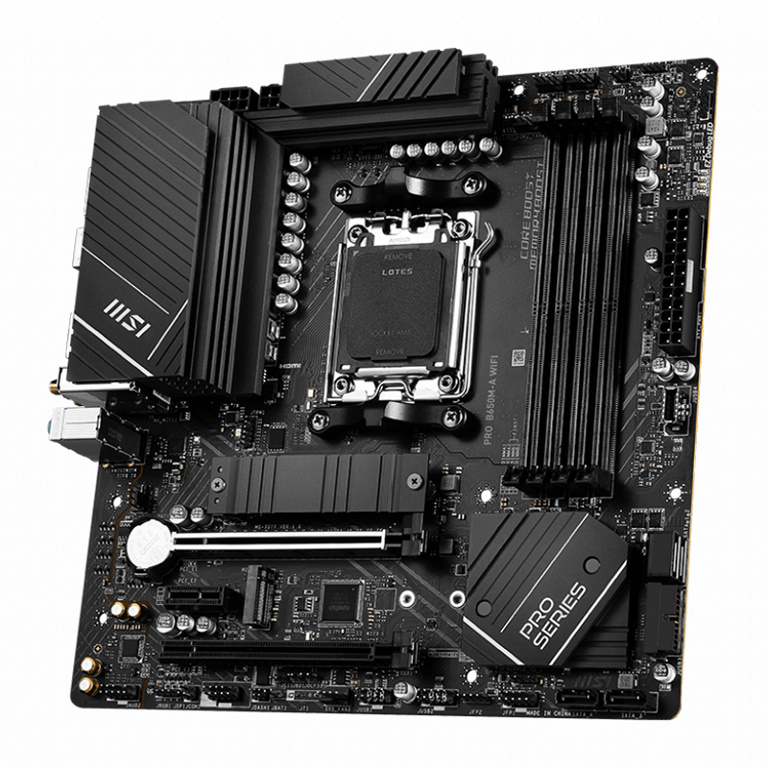

MSI PRO B650M-A WIFI AMD AM5 MATX Motherboard, 4x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 8x USB 3.2,


CHIPSET AMD B650

CPU SUPPORT Supports AMD Ryzen„ 7000 Series Desktop Processors

Socket AM5


MEMORY 4x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz

Max. overclocking frequency:

1DPC 1R Max speed up to 6400+ MHz

1DPC 2R Max speed up to 5800+ MHz

2DPC 1R Max speed up to 6000+ MHz

2DPC 2R Max speed up to 4000+ MHz


Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO


ONBOARD GRAPHICS 1x HDMI„

1x DisplayPort

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

Supports DP1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.


EXPANSION SLOT 2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)


STORAGE 2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G port

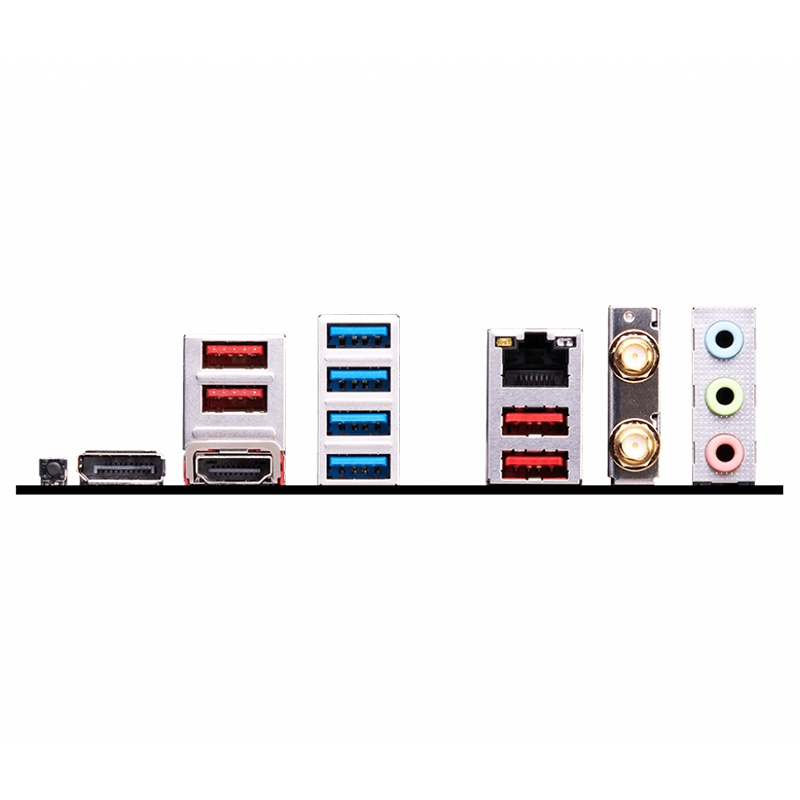

USB 4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

4x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)


PCB DIMENSION mATX

243.84mmx243.84mm

Specifications
SKU MBM-PROB650M-AWIFI
Barcode # 4711377010160
Brand MSI
Shipping weight 1.6000kg
Shipping width 0.343m
Shipping height 0.200m
Shipping length 0.343m
Assembled length 2.430m
Assembled height 1.000m
Assembled width 2.430m

MSI PRO B650M-A WIFI AMD AM5 MATX Motherboard 4x DDR5 ~128GB 1x PCI-E x16 2x M.2 4x SATA 8x USB 3.2

$313.20
RRP $346.50 save 10%

or 4 payments of $78.30 with Learn more

In Stock

Product Information

SKU:

MBM-PROB650M-AWIFI

Brand:

MSI

Barcode #:

4711377010160

Shipping Weigth:

1.6000kg
