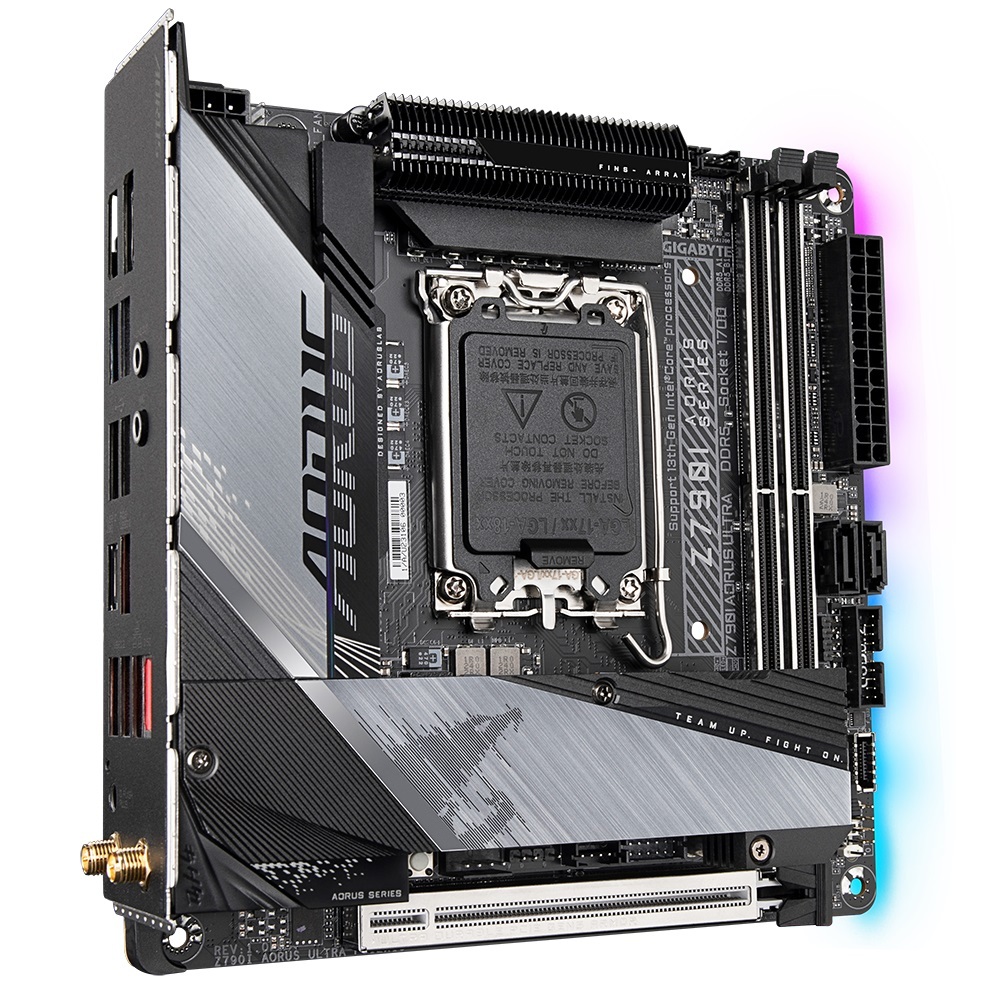

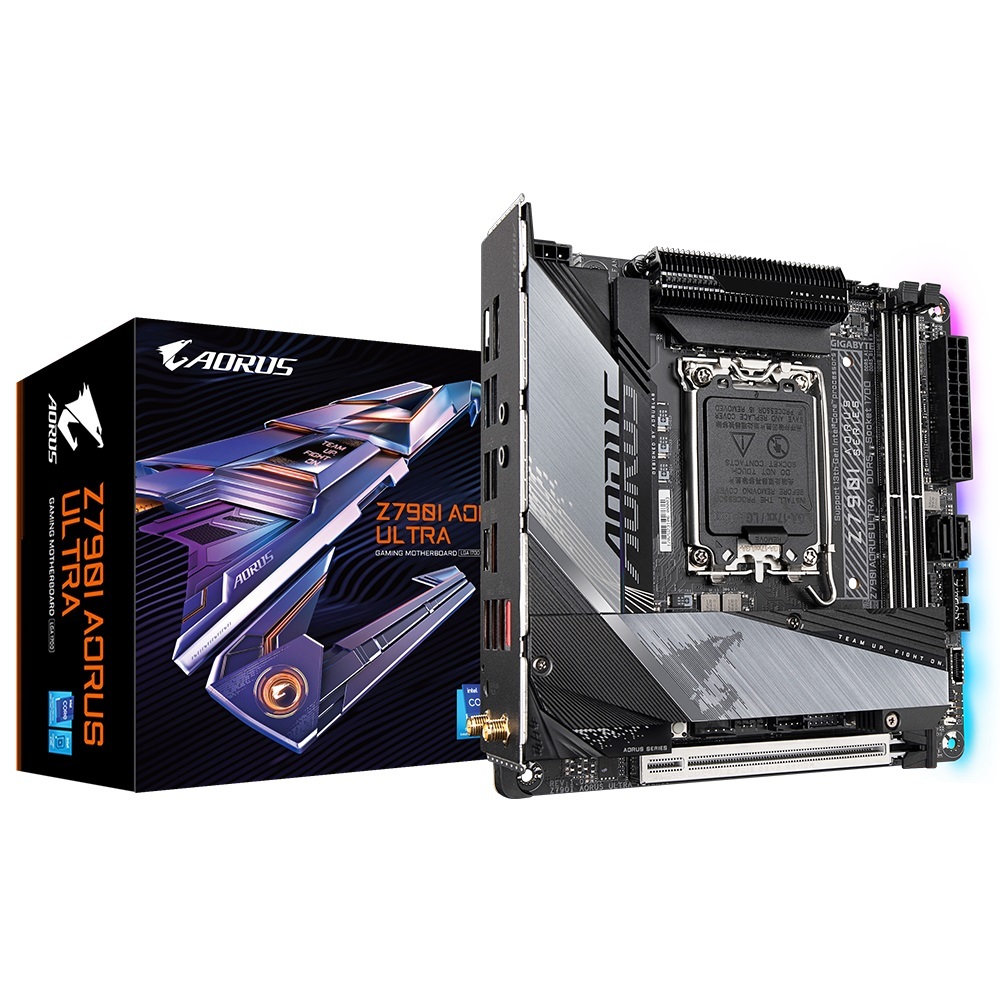

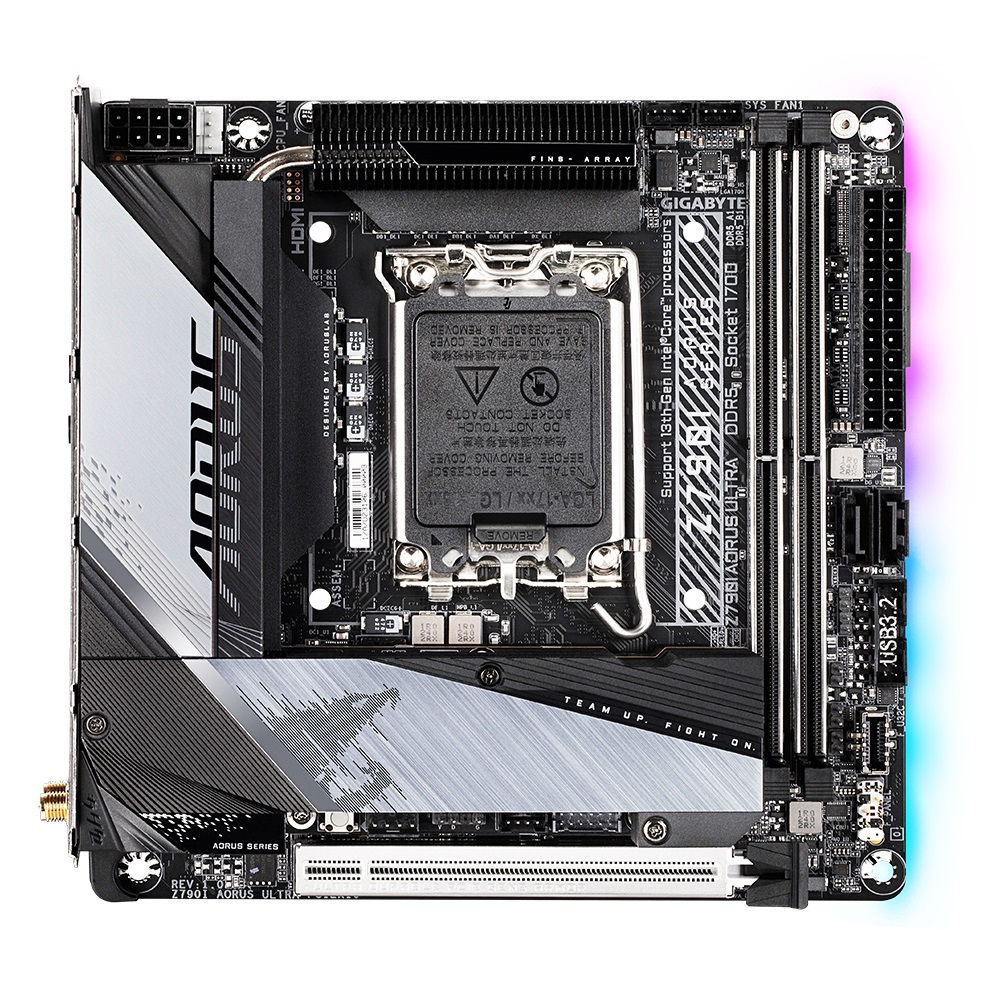

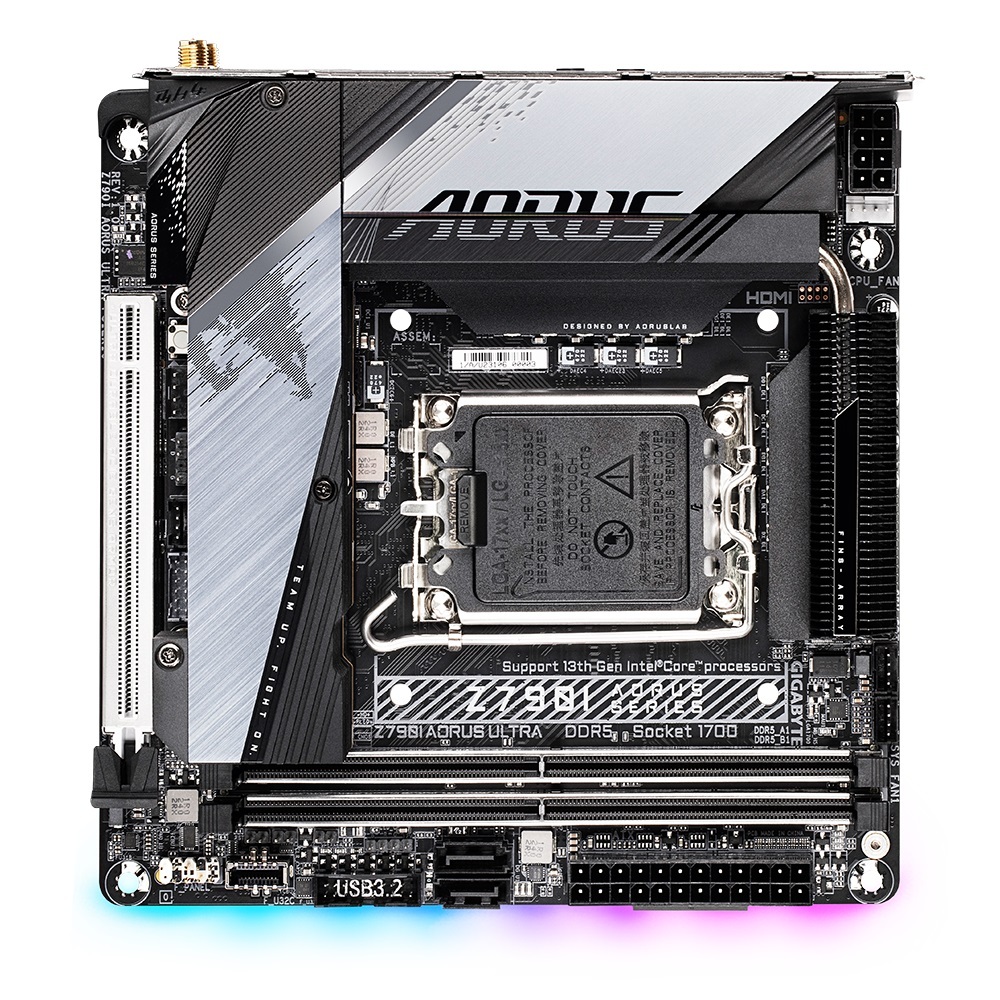

Gigabyte Z790I AORUS ULTRA Intel LGA 1700 E-ATX Motherboard, 2x DDR5 ~96GB, 1x PCI-E x16, 2x M.2, 2x SATA, 2x

FEATURES:

Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors‹

Unparalleled Performance：Direct 10+1+2 Phases Digital VRM Solution‹

Dual Channel DDR5：2*SMD DIMMs with XMP 3.0 Memory Module Support‹

Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors‹

Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance‹

EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design‹

Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax‹

Extended Connectivity：DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s‹

Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP‹

Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card‹

SPECIFICATGIONS:

CPU

LGA1700 socket: Support for the 13th and 12th Generation Intel Core„, Pentium Gold and Celeron Processors

L3 cache varies with CPU

Memory

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Onboard Graphics

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

2 x SATA 6Gb/s connectors

Back Panel Connectors

2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x HDMI port

1 x USB Type-C port, with USB 3.2 Gen 2x2 support

3 x USB 3.2 Gen 2 Type-A ports (red)

2 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x audio jacks

Form Factor

E-ATX Form Factor; 30.5cm x 28.5cm
