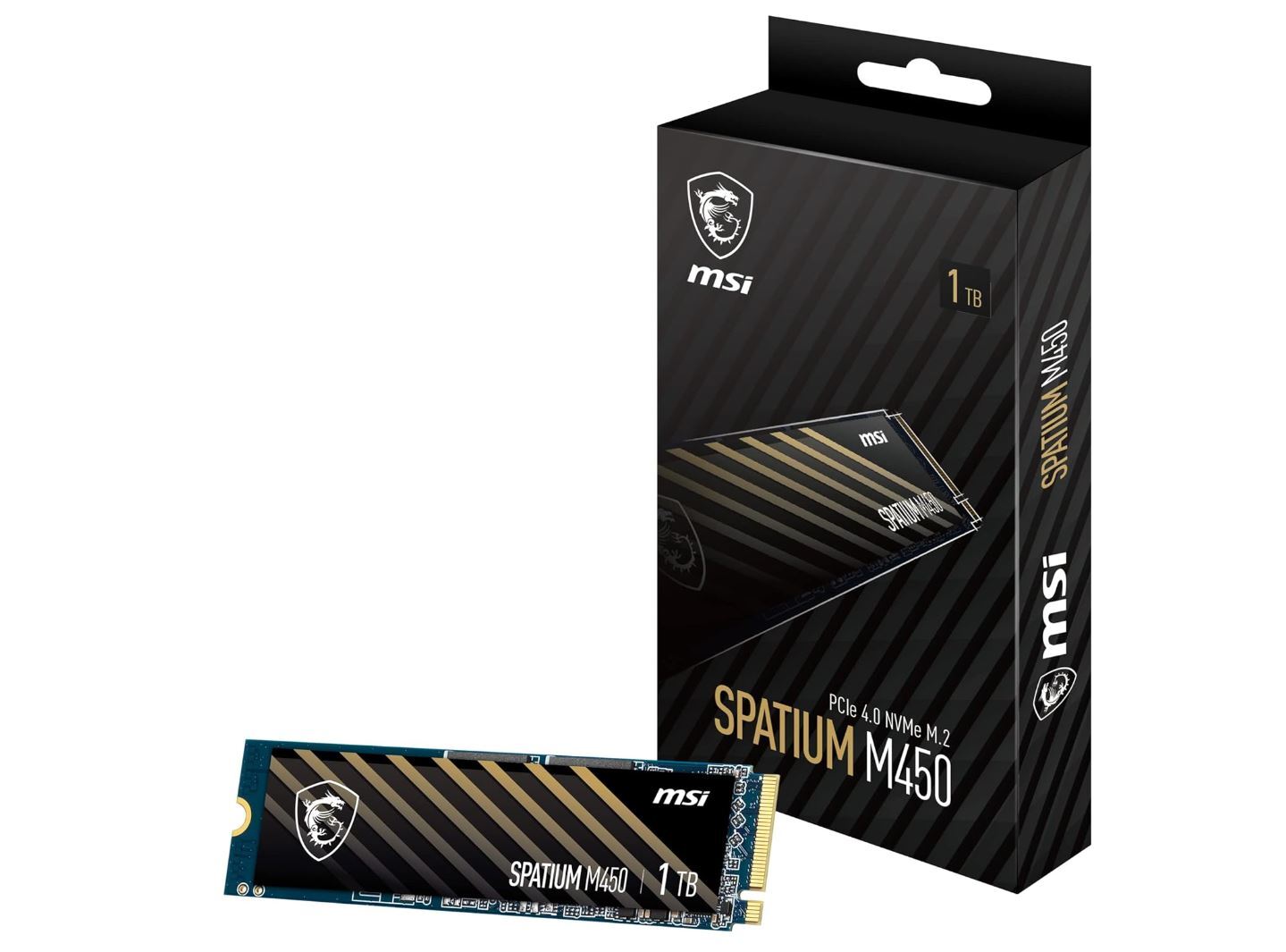

MSI SPATIUM M450 1TB M.2 NVME PCIE GEN4 SSD, 5 Year Warranty

CAPACITY 1TB

CONTROLLER PHISON E19T

FLASH MEMORY 3D NAND

FORM FACTOR M.2 2280

INTERFACE PCIe Gen4x4, NVMe 1.4

COMPATIBILITY PCIe Gen4 / Gen3 / Gen2 / Gen1

DIMENSIONS 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

SEQUENTIAL READ UP TO (MB/S): 3600

SEQUENTIAL WRITE UP TO (MB/S): 3000

RANDOM READ 4KB UP TO (IOPS): 420,000

RANDOM WRITE 4KB UP TO (IOPS): 550,000

MAXIMUM OPERATING POWER (W): 4.0

IDLE POWER PS3 (MW): 40

LOW POWER L1.2 (MW): 5

OPERATING TEMPERATURES: 0°C “ 70°C

STORAGE TEMPERATURES: -40°C “ 85°C

TERABYTES WRITTEN (TBW): 600

MEAN TIME BETWEEN FAILURE (MTBF): Up to 1,500,000 Hours

LIMITED WARRANTY: 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

ADVANCED FEATURES

TRIM (Performance Optimization, OS support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

Pyrite (Encryption, Data Security)
