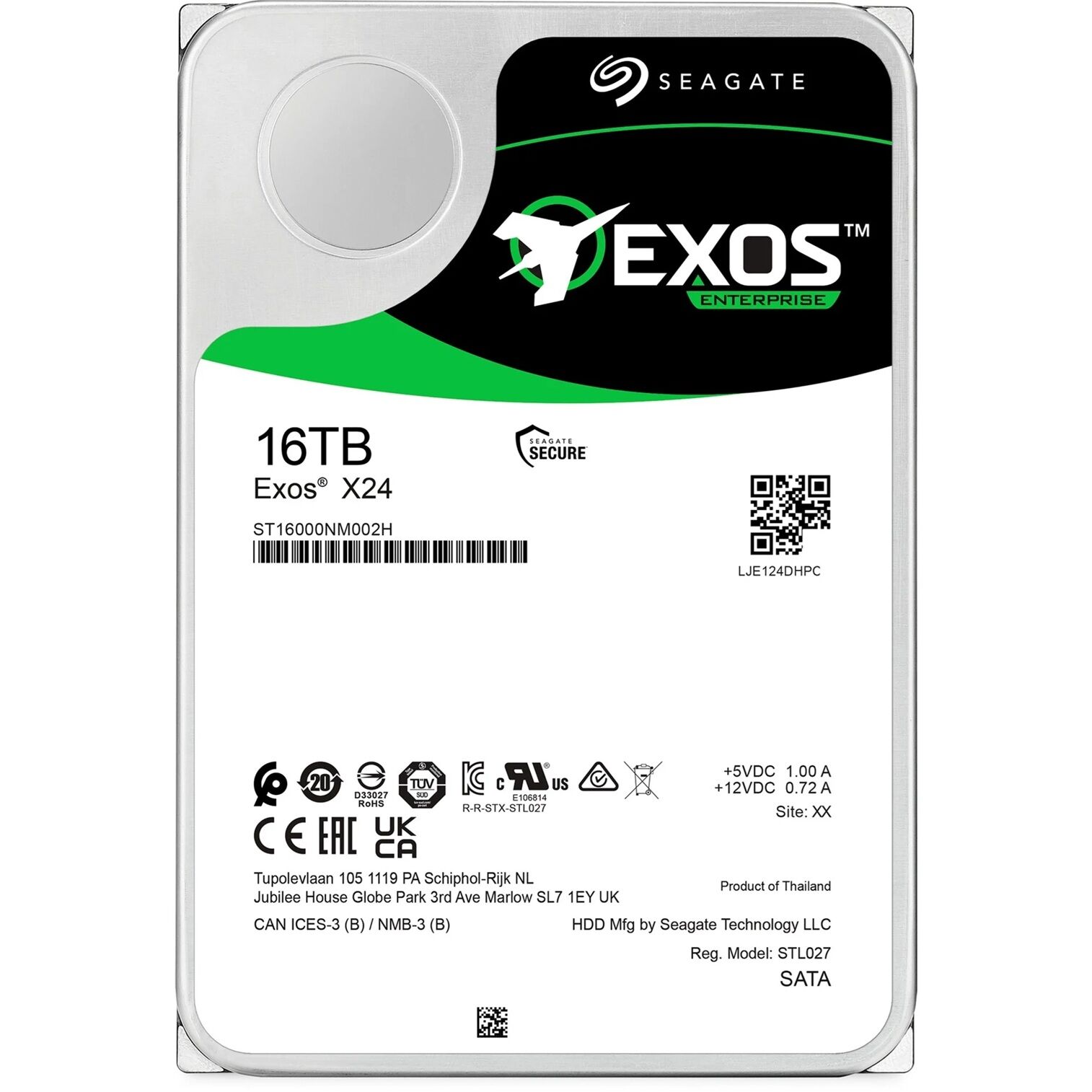

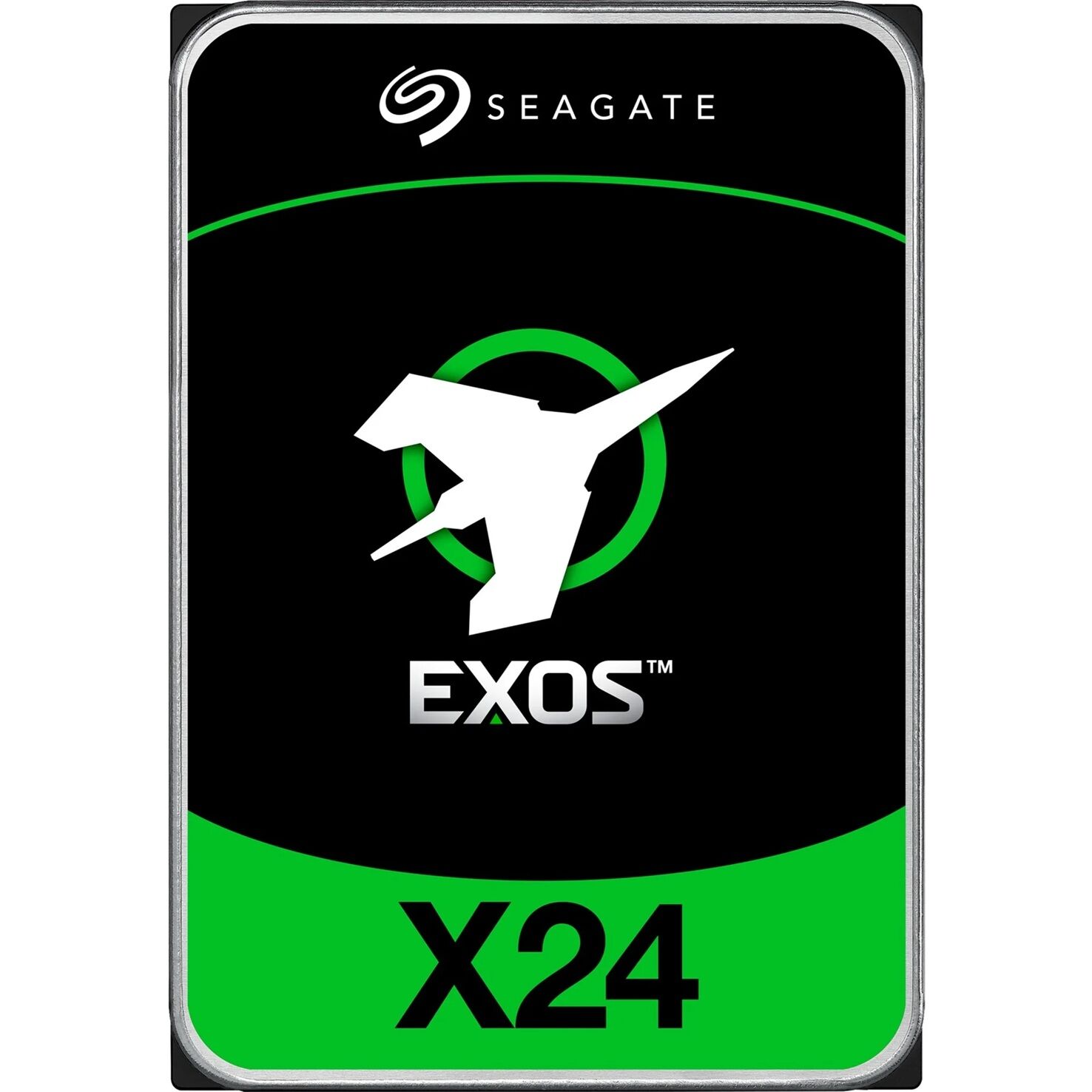

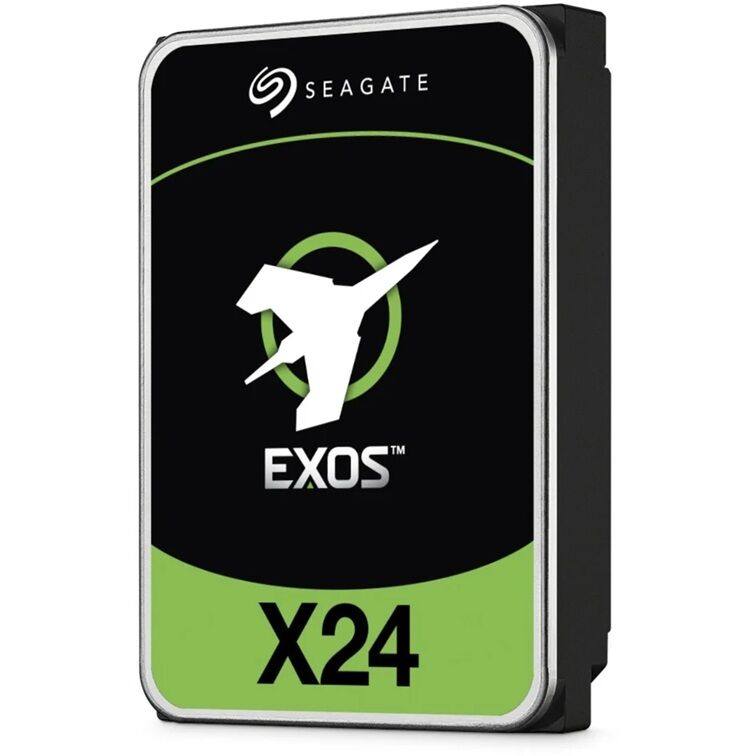

Seagate16TB 3.5 ft SATA EXOS X24, 512mb CACHE, Enterprise, 512E 4KN, 6GB S, 7200RPM, 24x7 data availability HDD. 5 Years Warranty

Powerful performance with proven technology”Seagates Exos X24 drives are built off the platform thats shipped millions globally and deployed in leading cloud service provider solutions”making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure„, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Specifications

Capacity 16TB

Standard Model - Seagate Instant Secure Erase (ISE) 1 ST16000NM002H

SED Model2 ST16000NM001H

FEATURES

Helium Sealed-Drive Design Yes

Conventional Magnetic Recording (CMR) Yes

Super Parity Yes

PowerChoice„ Idle Power Technology Yes

PowerBalance„ Power Performance Technology Yes

Hot-Plug Support3 Yes

Cache, Multisegmented (MB) 512

RSA 3072 Firmware Verification (SDD) Yes

RELIABILITY DATA INTEGRITY

Mean Time Between Failures (MTBF, hours) 2500000 hrs

Reliability Rating Full 24—7 Operation (AFR) 0.35pct

Nonrecoverable Read Errors per Bits Read 1 in 10E15

Power-On Hours per Year (24—7) 8760

512e Sector Size (Bytes per Sector) 512

4Kn Sector Size (Bytes per Sector) 4096

Limited Warranty (years) 5

PERFORMANCE

Spindle Speed (RPM) 7200RPM

Max. Sustained Transfer Rate OD (MB s,MiB s) 285 272

Random Read Write 4K QD16 WCD (IOPS) 168 550

Interface Ports Single

Rotation Vibration 20-1500 Hz (rad sec²) 12.5

POWER

Idle A (W) Average 6.3

Max Operating, Random Read Write 4K 16Q (W) 8.9, 7.1

Power Supply Requirements 12V and 5V

ENVIRONMENTAL

Temperature, Operating ( degreeC) (Ambient Drive Reported) 5 60

Vibration, Nonoperating: 2 to 500Hz (Grms) 2.27

Shock, Operating 2ms (Read Write) (Gs) 40Gs

Shock, Nonoperating 2ms (Gs) 200

PHYSICAL

Height (mm in, max) 4 26.1mm 1.028in

Width (mm in, max) 4 101.85mm 4.010in

Depth (mm in, max) 4 101.85mm 4.010in

Depth (mm in, max) 4 147mm 5.787in

Weight (gm lb) 685g 1.51lb

Carton Unit Quantity 20

Cartons per Pallet Cartons per Layer 40 8
