Description

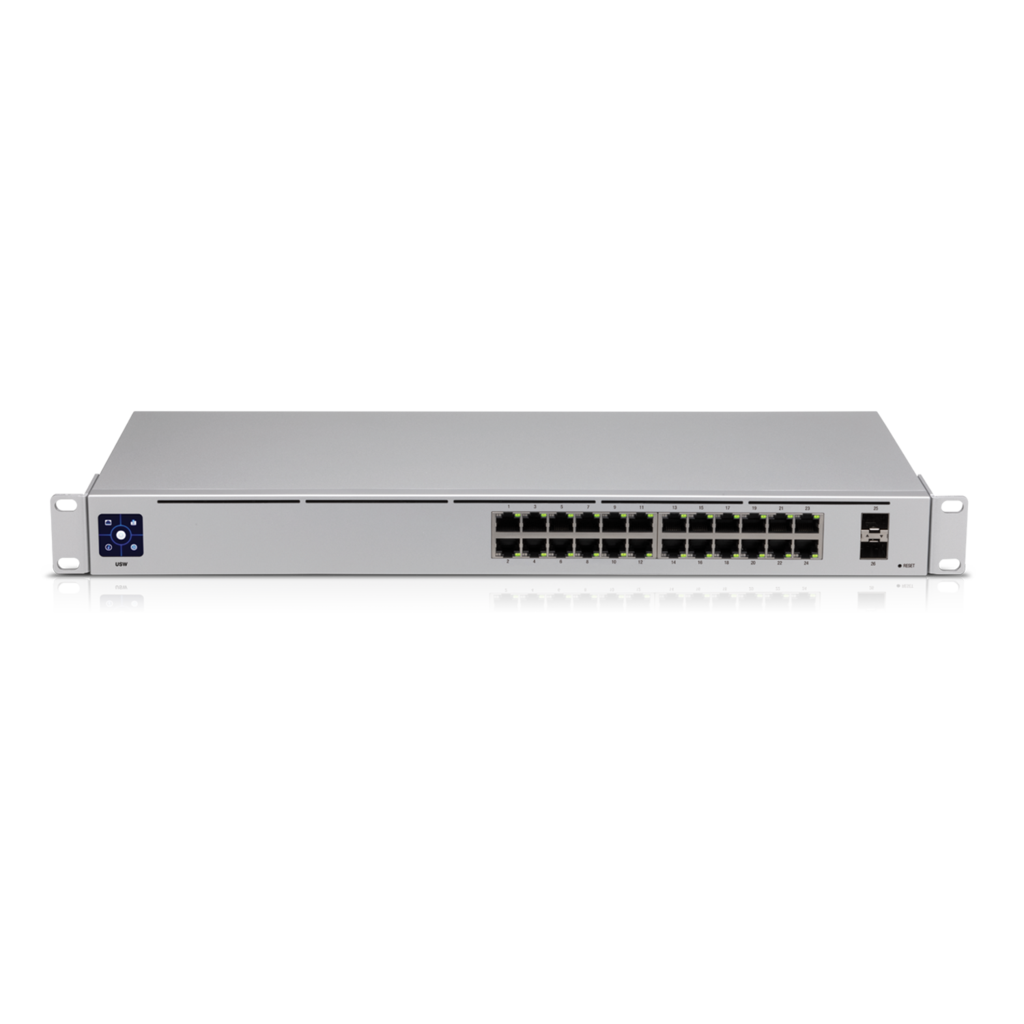

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3' touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.


Features:

(24) Gigabit Ethernet Ports

(2) Gigabit SFP Ports

1.3' color touchscreen for status information

Managed by UniFi Network Controller


Product Specifications

USW-24

Dimensions 442.4 x 200 x 43.7 mm

(17.42 x 7.87 x 1.72')

Weight

With Rackmount Brackets 2.70 kg (5.95 lb)

2.79 kg (6.15 lb)

Interfaces 0

Interfaces

Networking


Management

(24) 10/100/1000 RJ45 Ports

(2) 1G SFP Ethernet Ports

Ethernet In-Band

Power Method 100-240VAC, 50/60 Hz, Universal Input

Power Supply AC/DC, Internal, 36W

Supported Voltage Range 100 to 240VAC

Max. Power Consumption 25W

LEDs

RJ45 Data Ports

SFP Data Ports

Speed/Link/Activity

Link/Activity

ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 45° C (23 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certifications CE, FCC, IC

Specifications
SKU NHU-USW-24
Barcode # 810010071415
Brand Ubiquiti
Shipping weight 3.4000kg
Shipping width 0.300m
Shipping height 0.144m
Shipping length 0.542m
Assembled length 4.424m
Assembled height 0.437m
Assembled width 2.000m

Ubiquiti UniFi Network Switch USW-24 24-Port No POE (24) Gb ERJ 45 Ports (2) 1G SFP Ethernet Ports Layer 2 Rack Mount

$436.16
RRP $469.00 save 7%

or 4 payments of $109.04 with Learn more

Sold Out

Product Information

SKU:

NHU-USW-24

Brand:

Ubiquiti

Barcode #:

810010071415

Shipping Weigth:

3.4000kg

Warranty:

12
