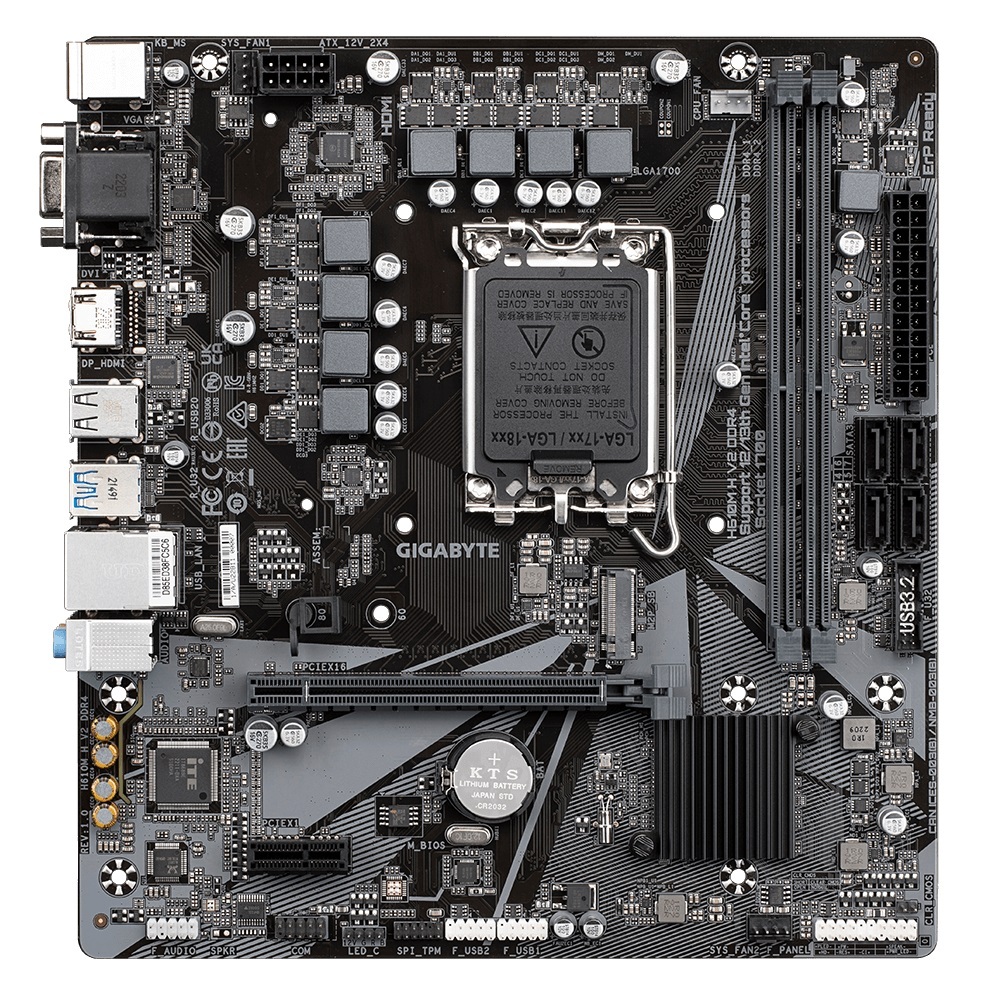

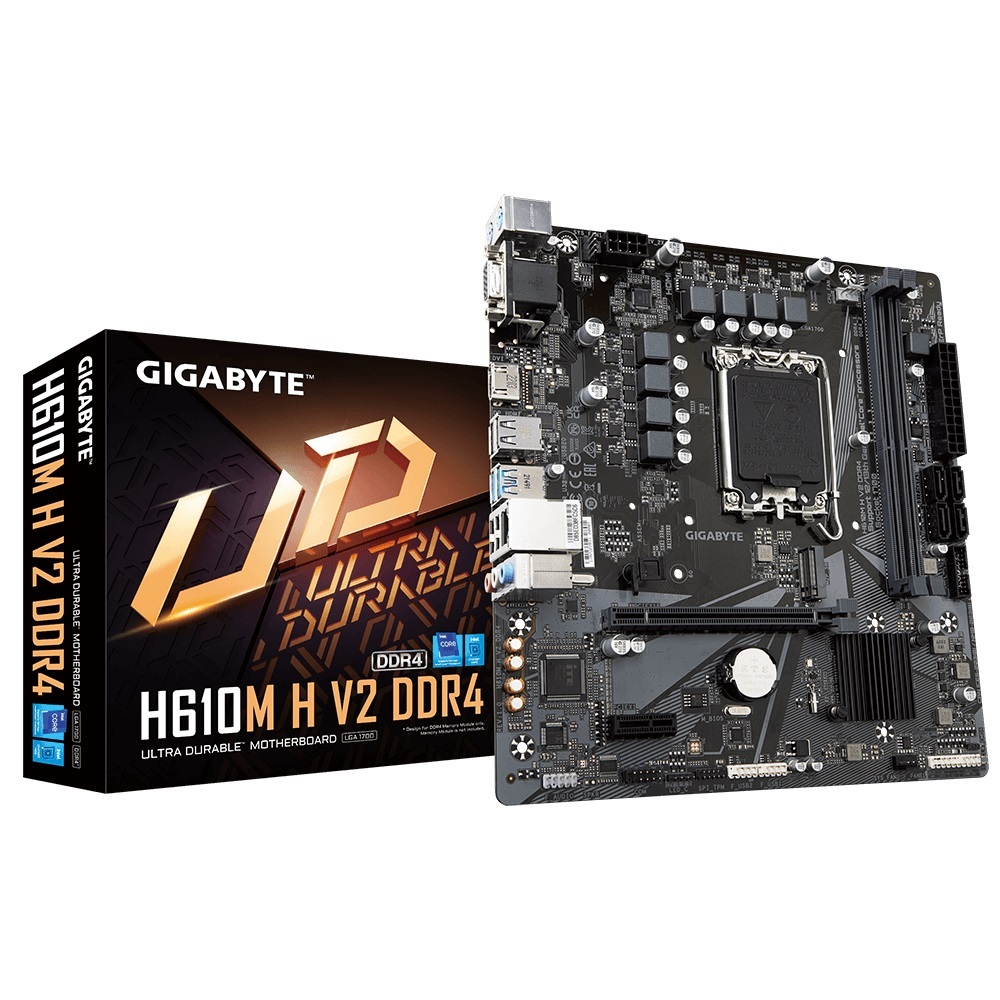

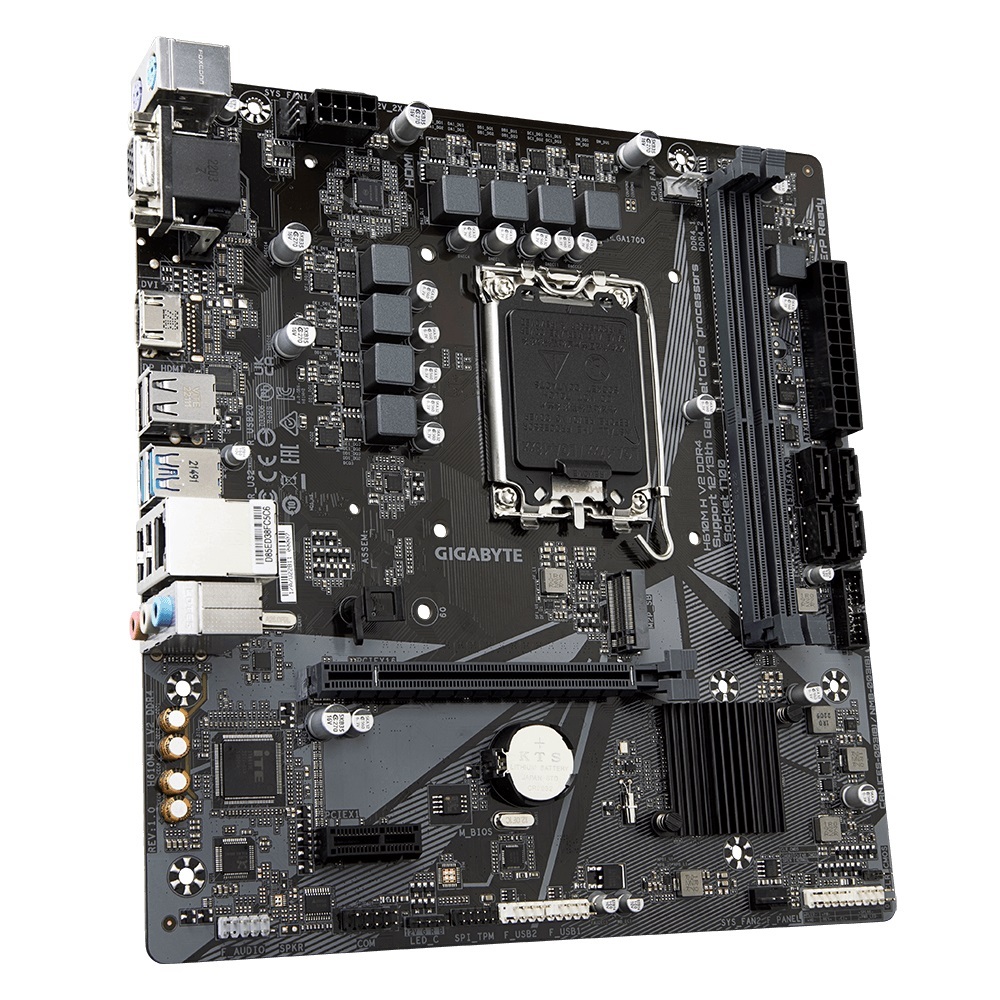

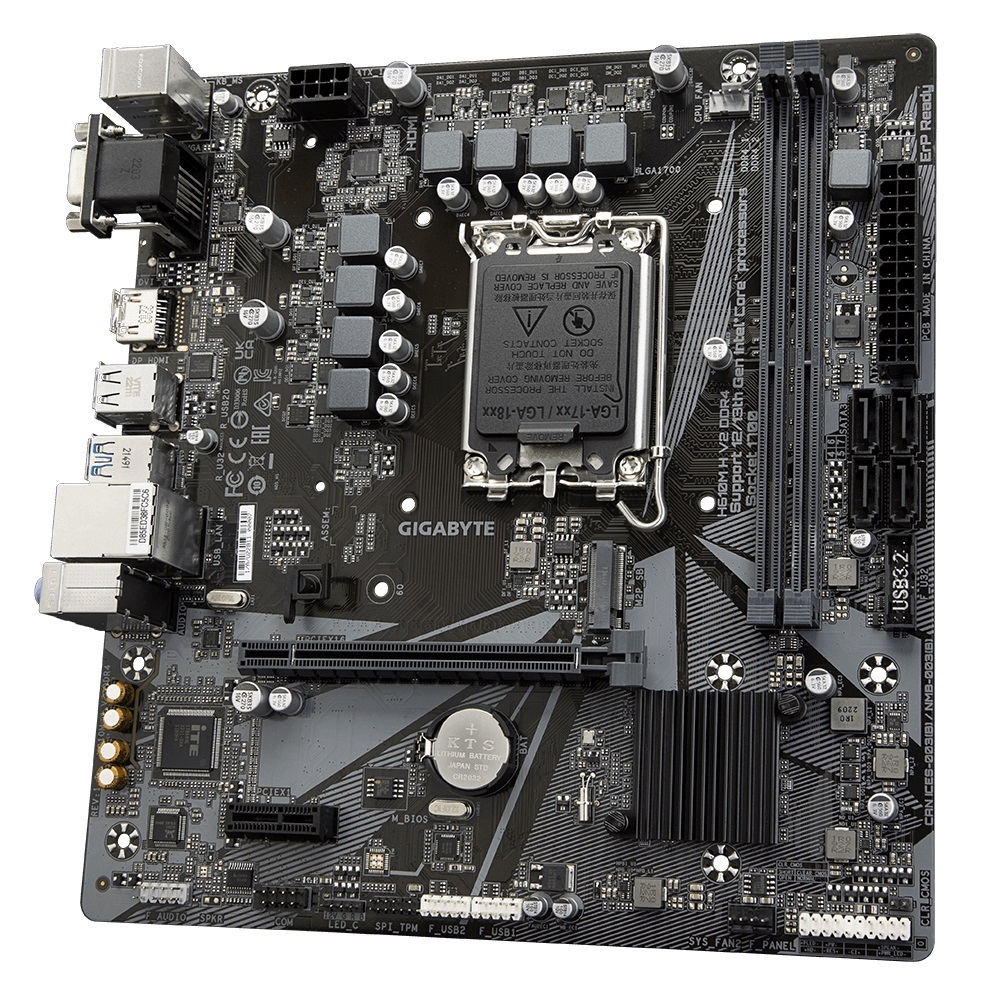

Gigabyte H610M H V2 DDR4 1.0 LGA 1700 mATX Motherboard, 2x DDR4 ~64GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 2x USB 3.2, 4x

FEATURES:

Supports 13th and 12th generation Intel Core„ processors

Integrates 2 memory slots, supports dual-channel Non-ECC DDR4 memory‹

6+1+1 phase power supply design

Gigabit high-speed network card equipped with intelligent management software

High-speed NVMe PCI-E M.2 SSD slot‹‹

High-quality audio dedicated capacitor + independent audio block isolation line

Smart fan 6 technology, integrated multi-point temperature measurement function and adopts hybrid fan socket and supports FAN STOP technology‹‹‹‹

Easy-to-use GIGABYTE APP Center

Anti-sulfur resistance design prolon

CPU

LGA1700 socket, supports 13th generation Intel Core„ processors and 12th generation Intel Core„, Pentium Gold and Celeron processors*

L3 cache depends on CPU

Memory

Support DDR4 3200/3000/2933/2666/2400/2133 MT/s

2 x DDR4 DIMM slots, can support up to 64 GB (single slot supports 32 GB capacity)

Supports dual-channel memory technology

Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory (running in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display Function

Graphics-based processor - supports Intel HD Graphics:

1 VGA interface, can support up to 1920x1200@60 Hz resolution

1 HDMI interface, can support resolution up to 4096x2160@60 Hz

* Support HDMI 2.0 version and HDCP 2.3.

Expansion Slot

1 PCI-E x16 slot, supports PCI-E 4.0x16 operation specification

1 PCI-E x1 slot, supports PCI-E 3.0x1 operation specification

USB

4 USB 3.2 Gen 1 ports (2 are on the rear window IO, 2 need to be connected to the USB socket on the motherboard via a cable)

4 USB 2.0/1.1 ports on the rear window IO

4 USB 2.0/1.1 ports on the rear window IO4 USB 2.0/1.1 ports, connected from the USB socket on the motherboard via cables

PCB specificationMicro ATX format; 23.0cm
