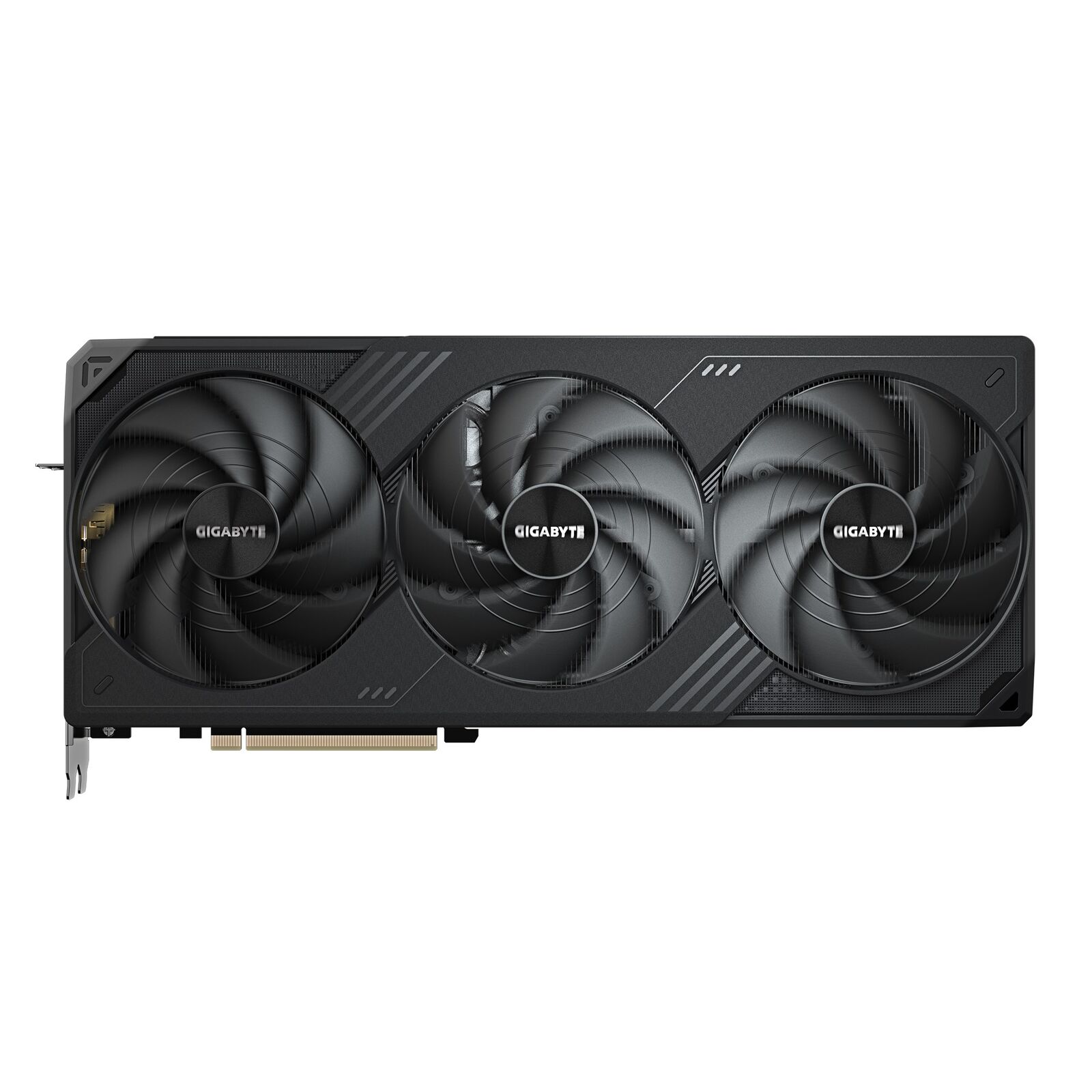

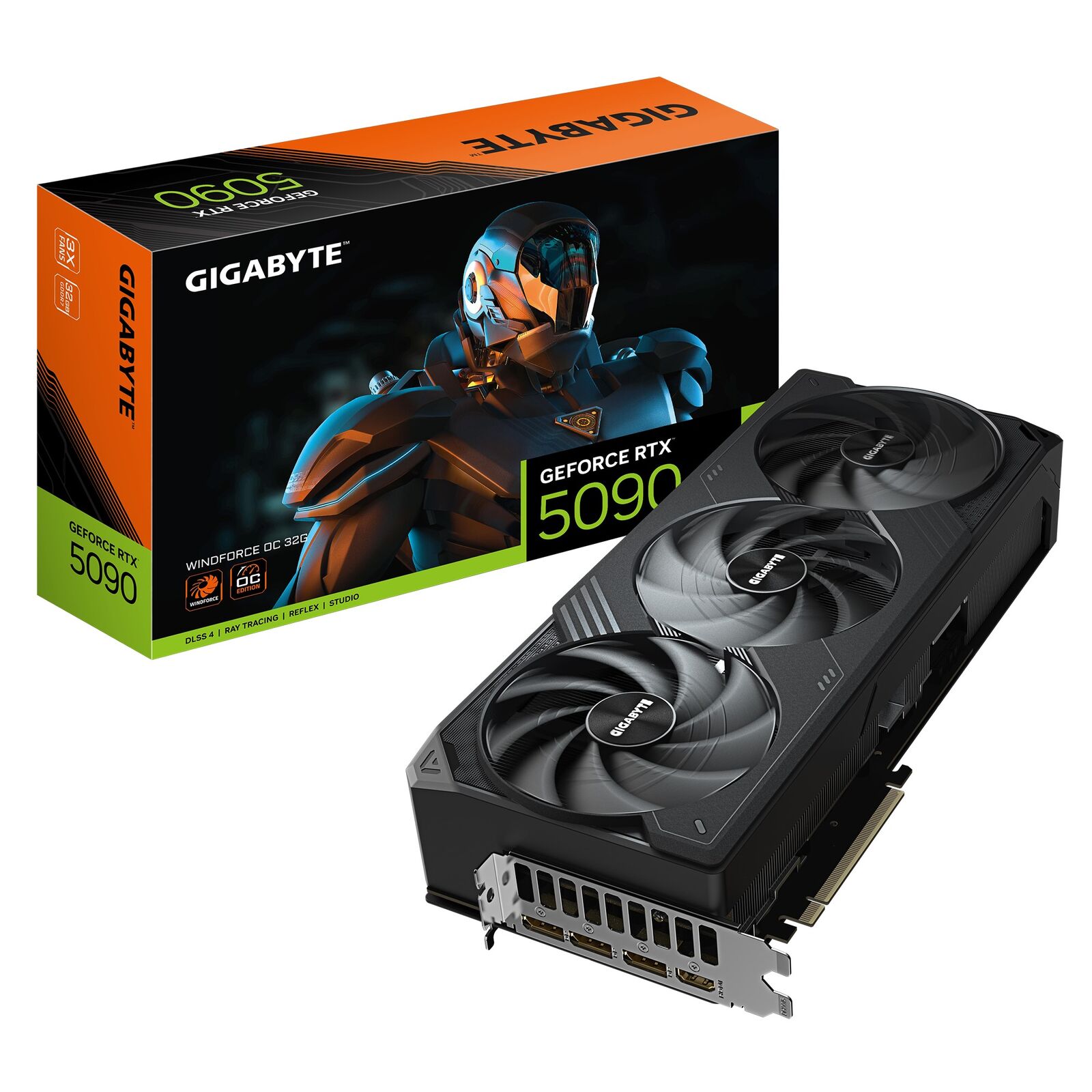

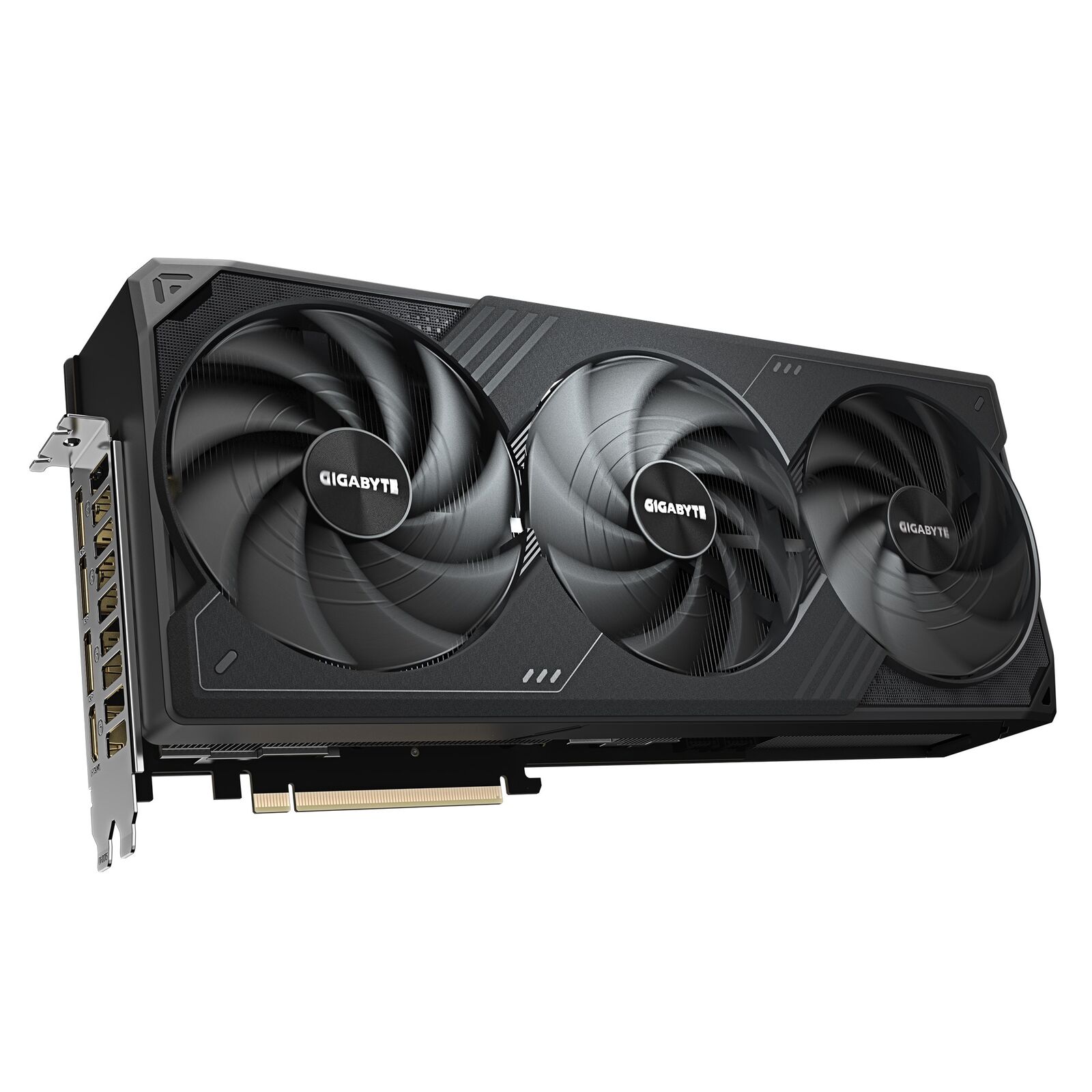

Gigabyte GeForce RTX„ 5090 WINDFORCE OC 32G, 2467 MHz, CUDA 21760, 28 Gbps, GDDR7, 512 bit, PCI-E 5.0, PSU 1000W, DisplayPort 2.1b 3 HDMI 2.1b 1

SPECIFICATION

Graphics Processing

GeForce RTX„ 5090

Core Clock

2467 MHz (Reference card : 2407MHz)

CUDA Cores

21760

Memory Clock

28 Gbps

Memory Size

32 GB

Memory Type

GDDR7

Memory Bus

512 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=342 W=150 H=65 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

1000W

Power Connectors

16 Pin1

Output

DisplayPort 2.1b 3

HDMI 2.1b 1

Accessories

1. Quick guide

2. 1x 12V-2x6 to 4x PCIe 8pin adapter

3. Versatile VGA holder

4. Versatile VGA holder manual

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX„ 5090

Integrated with 32GB GDDR7 512bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

Dual BIOS (Performance Silent)

Reinforced structure

Versatile VGA holder

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle fts wing. This design reduces air resistance and noise levels, resulting in up to a 53.6pct increase in air pressure and a 12.5pct increase in air volume without compromising acoustics.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE VAPOR CHAMBER COMPOSITE COPPER HEAT PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

DUAL BIOS (Performance Silent)

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the convention
