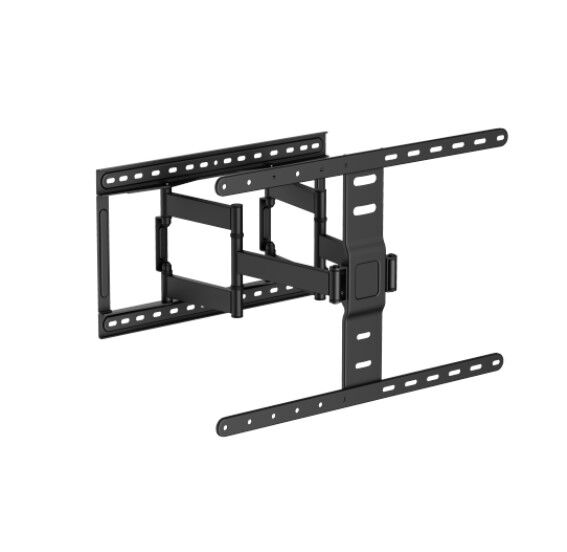

Brateck LPA83-466 MODERN ULTRA-SLIM FULL-MOTION TV WALL MOUNT For most 43 ft-90 ft TVs

FEATURES

—Ultra-slim design

—Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

—Folding Design: saves space (keeping the screen and arm out of the way when not in use)

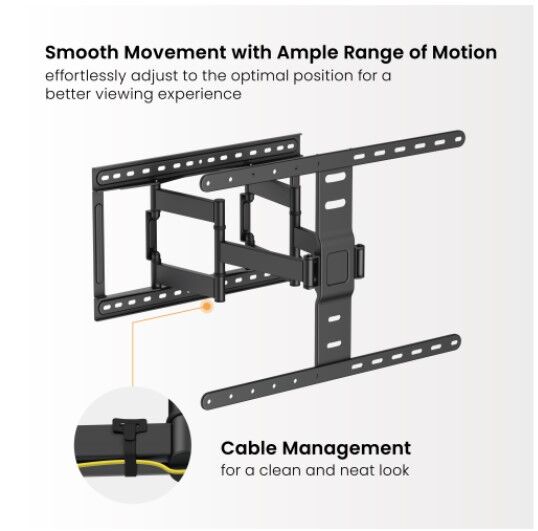

—Cable Management: keeps everything organized

—Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

—Leveling adjustments: allow TV to be perfectly positioned after hanging

—Easy Assembly: Installation is as easy as 1-2-3

SPECIFICATIONS

Product Category: Full-motion TV Wall Mount

Rank: Standard

Material: Steel

Metal Sheet Thickness:

Bracket Arm THK=3.0mm pickling sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.12 ft pickling sheet,VESA Panel THK=0.098 ft pickling sheet,Wall Plate THK=0.098 ft pickling sheet)

Pipe Size: 40x15x1.2mm Square Steel Tube (1.6 ftx0.59 ftx0.047 ft Square Steel Tube)

Surface Finish: Powder Coating

Color: Fine Texture Black

Dimensions: 420x509x632mm (16.5 ftx20 ftx24.9 ft)

Fit Screen Size: 43 ft-90 ft

Fit Curved TV: Yes

Mounting Hole Pattern: VESA Universal

VESA Compatible: 100x200,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400

Max. Mounting Hole: 602x400

Weight Capacity: 60kg (132lbs)

Strength Tested: 4 Times Approved

Profile: 27~420mm (1.1 ft~16.5 ft)

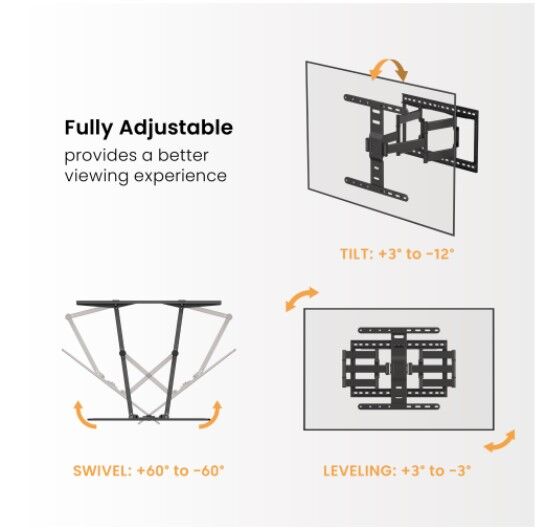

Tilt Range: 3 degree~-12 degree

Swivel Range: 60 degree~-60 degree

Screen Level: 3 degree~-3 degree

Screen Freely Tilting: Yes

Installation: Solid Wall,Double Stud(406mm 450mm)

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

AV Component Shelf: No

Direction Indicator: Yes

Cable Management: Yes

Anti-theft: No

Bubble Level: Hook-on Bubble Level(Included in Components Package)

Accessory Kit Package: Normal Ziplock Polybag,Compartment Polybag

Silk Screen: Can be silkscreen printed
