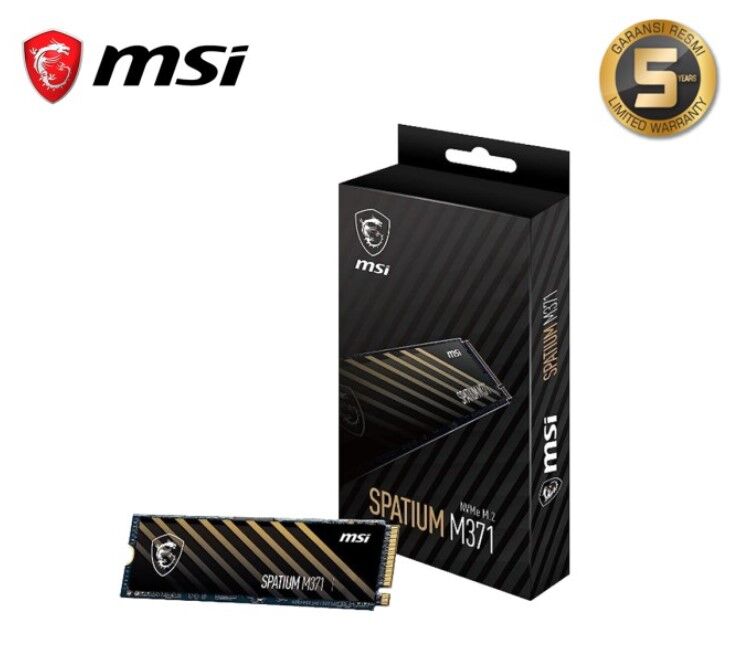

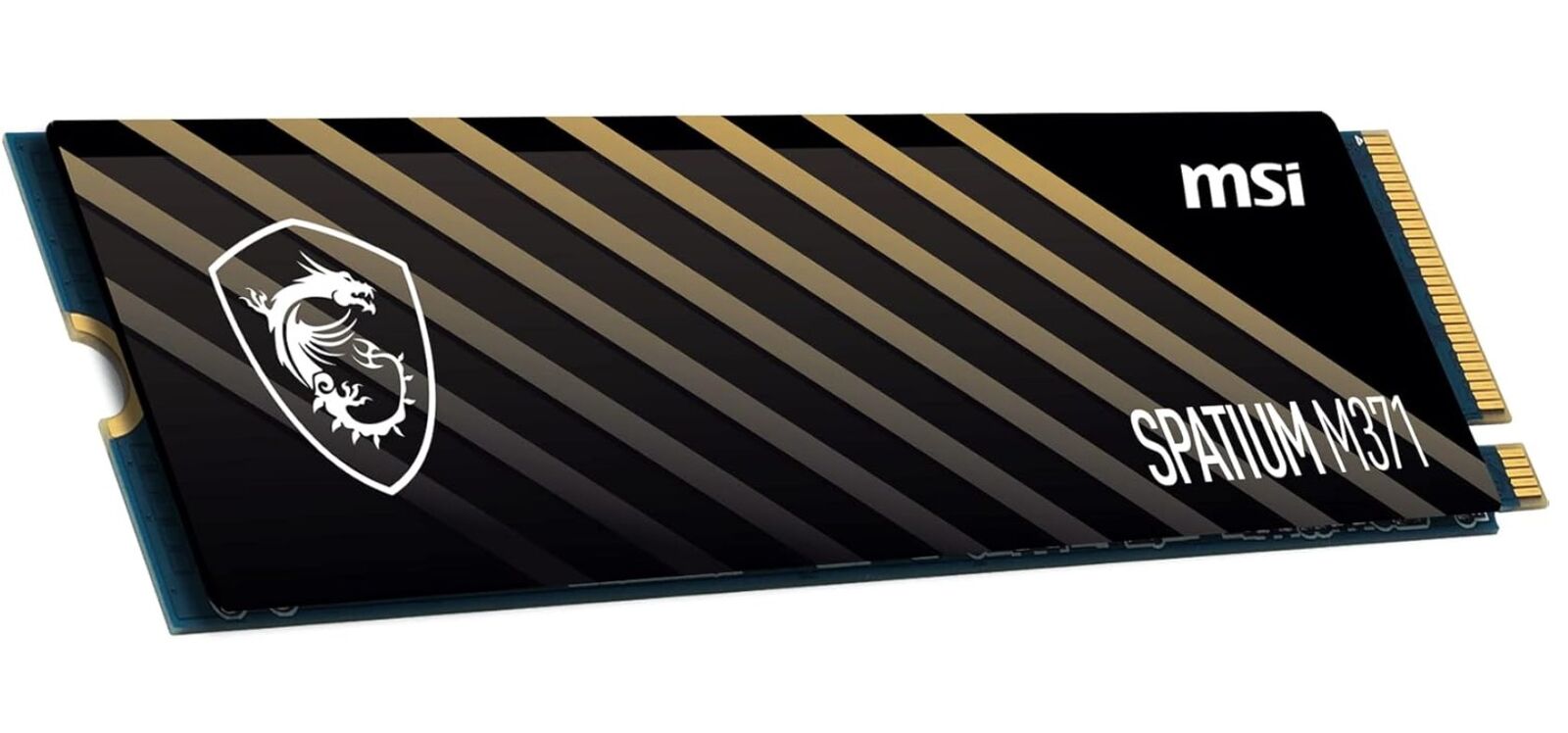

MSI SPATIUM M371 NVMe M.2 500GB, PHISON E13T, 3D NAND, M.2 2280, 2200 MB s Read, 1150 MB s Write, PCI-E 3.0, 110 TBW, 5 Year Warranty

Model Name SPATIUM M371 NVMe M.2 500GB

Capacity 500GB

Controller PHISON E13T

Flash Memory 3D NAND

Form Factor M.2 2280

Interface PCIe Gen3x4, NVMe 1.3

Compatibility PCIe Gen3 Gen2 Gen1

Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB s) 2200

Sequential Write up to (MB s) 1150

Random Read 4KB up to (IOPS) 60K

Random Write 4KB up to (IOPS) 200K

Maximum Operating Power (W) 2.4

Idle Power PS3 (mW) 30

Low Power L1.2 (mW) 5

Operating Temperatures 0 degreeC “ 70 degreeC

Storage Temperatures -40 degreeC “ 85 degreeC

Terabytes Written (TBW) 110

Mean Time Between Failure

(MTBF) Up to 1,500,000 Hours

Limited Warranty 5 Years, or the coverage for the maximum

TBW as stated, whichever comes first.

Advanced Features

TRIM (Performance Optimization, OS

support required)

SMART (Self-Monitoring, Analysis and

Reporting Technology)

LDPC (Low Density Parity Check) ECC

Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

AES256 TCG OPAL2.0 Pyrite (Encryption,

Data Security)
