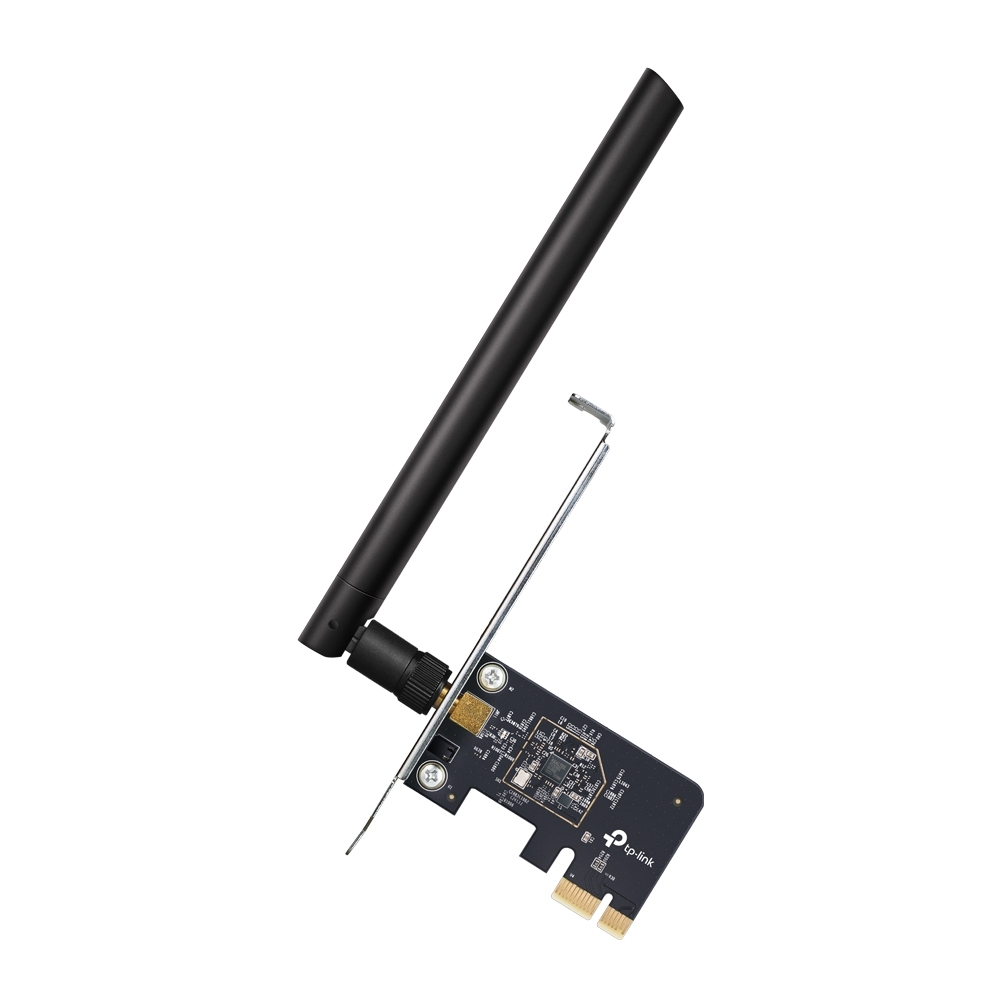

AC600 Wireless Dual Band PCI Express Adapter

AC600 Dual Band WiFi “ Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)

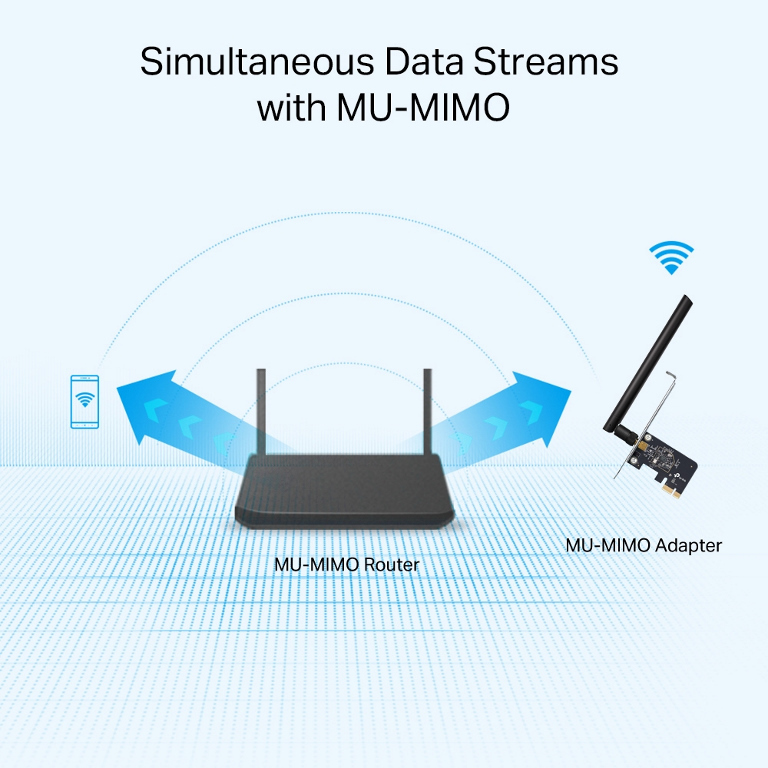

MU-MIMO Supported “ Boost network throughput and efficiency when working with a compatible MU-MIMO router

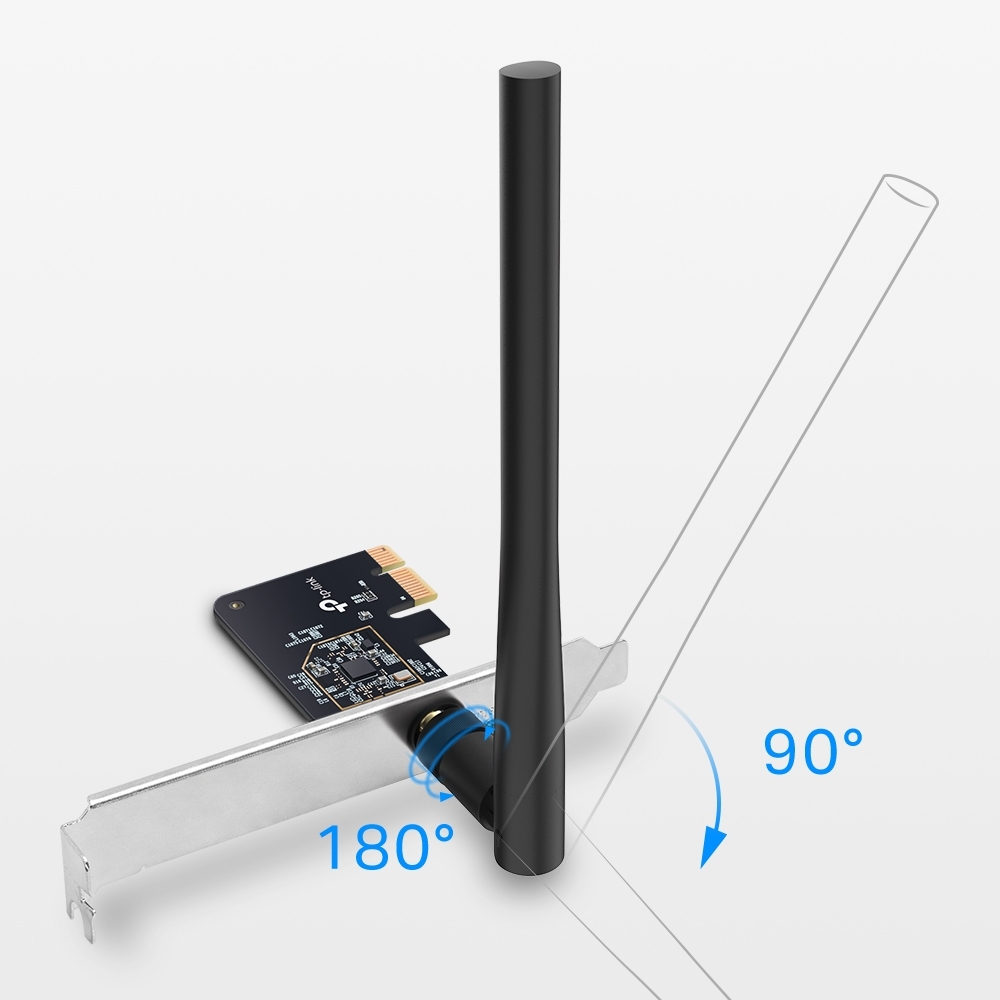

Broad Wireless Range “ Connect to your Wi-Fi in more parts of your home with a powerful signal-boosting high-gain antenna

WPA3 Supported “ Improve cybersecurity with more secure and individualized protection

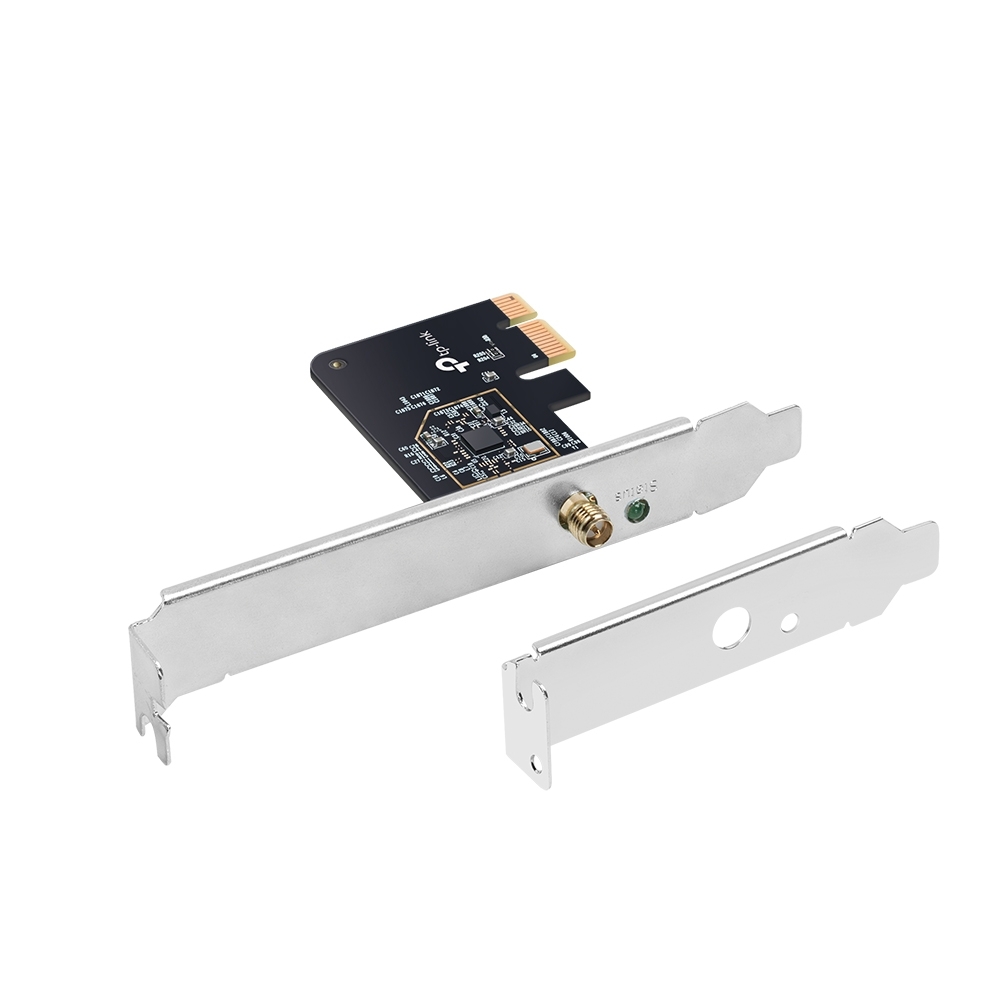

Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design

HARDWARE FEATURES

Interface PCI Express

Dimensions 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm)

Antenna 1 Detachable External Antenna

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz

Signal Rate 5 GHz:

11ac: Up to 433 Mbps(dynamic)

11n: Up to 200 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz:

11n: Up to 200 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

Reception Sensitivity 5GHz:

11ac HT80:-59.0dBm

11n HT40:-68.0dBm

11a 54Mbps:-73.0dBm

11a 6Mbps:-90.0dBm

2.4GHz:

11n HT40:-70dBm

11g 54Mbps:-75dBm

11b 11Mbps:-87dBm

Transmit Power 5GHz:18dBm(FCC)/23dBm(CE)(EIRP)

2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP)

Wireless Modes Infrastructure mode

Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE

Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

Certification FCC, CE, RoHS

Package Contents AC600 Wireless Dual Band PCI Express Adapter

Archer T2E

Low-Profile Bracket

Quick Installation Guide

Resource CD

System Requirements Windows 10

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰ ~104„‰)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
