Description

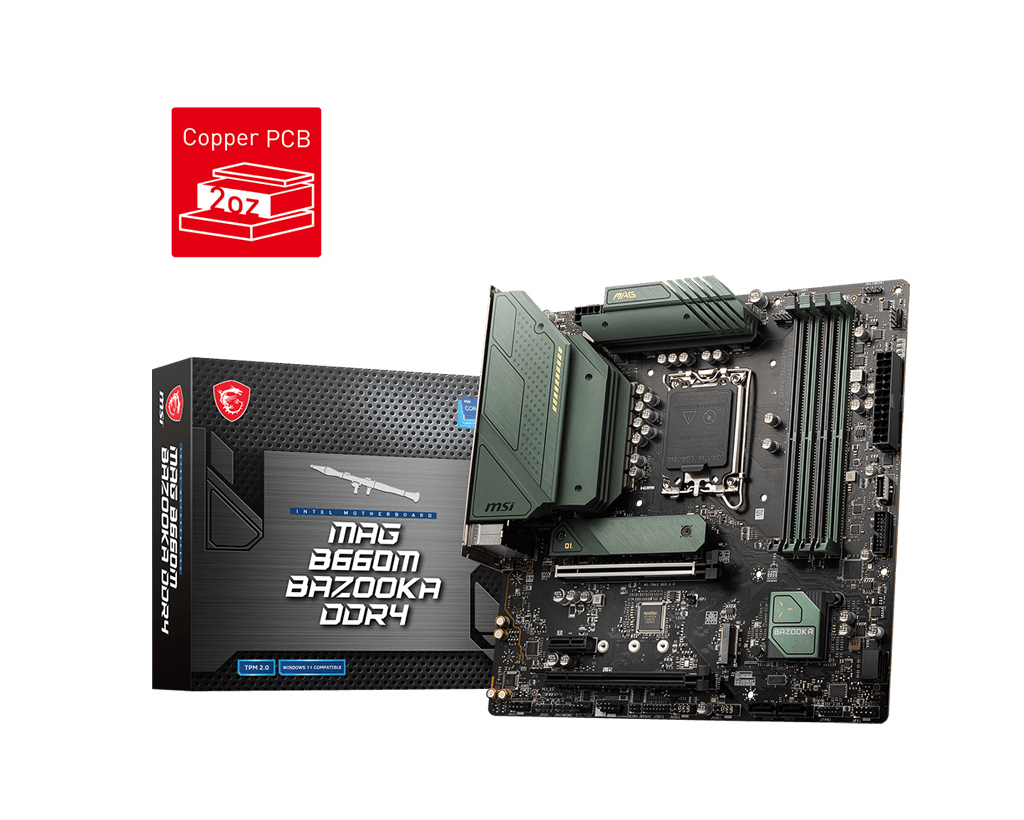

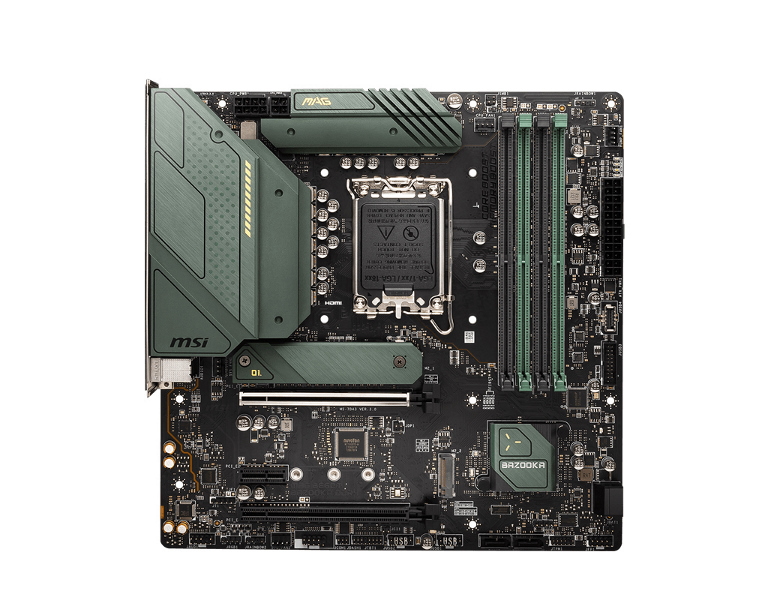

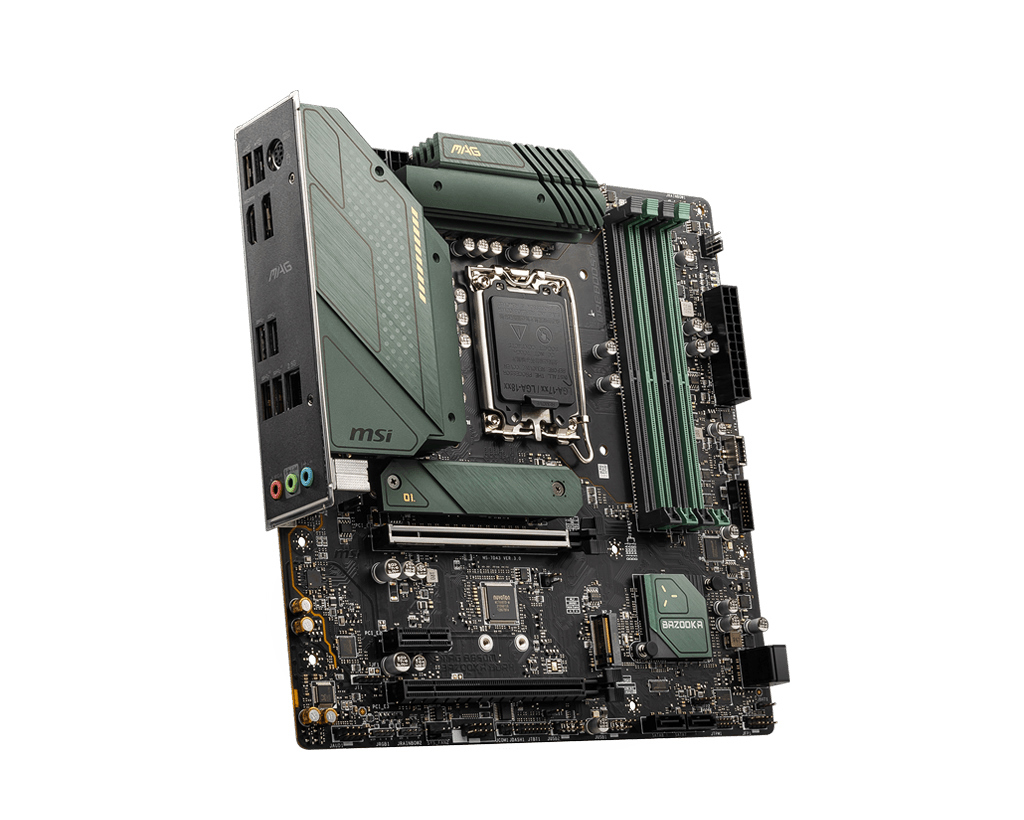

MSI MAG B660M BAZOOKA DDR4 Intel LGA 1700 mATX Motherboard, 4x DDR4 ~128GB, 2x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 4x USB 3.2, 2x USB 2.0


MAG B660M BAZOOKA DDR4

Supports 12th Gen Intel Core„, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR4 Memory, up to 4800+(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag

Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

Audio Boost: Reward your ears with studio grade sound quality

Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire„


SPECIFICATIONS

Model Name MAG B660M BAZOOKA DDR4

CPU Support Supports 12th Gen Intel

Core„ Processors, Pentium

Gold

and Celeron

Processors

CPU Socket LGA 1700

Chipset Intel

B660 Chipset

Graphics

Interface

1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot

Support AMD

CrossFire„ Technology

Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4

“ Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR4-4800+ (OC)

Expansion Slot 1x PCIe 3.0 x1 slot

Storage 2x M.2 Gen4 x4 64Gbps slots,

supports Intel

Optane„ Technology

4 x SATA 6Gb/s

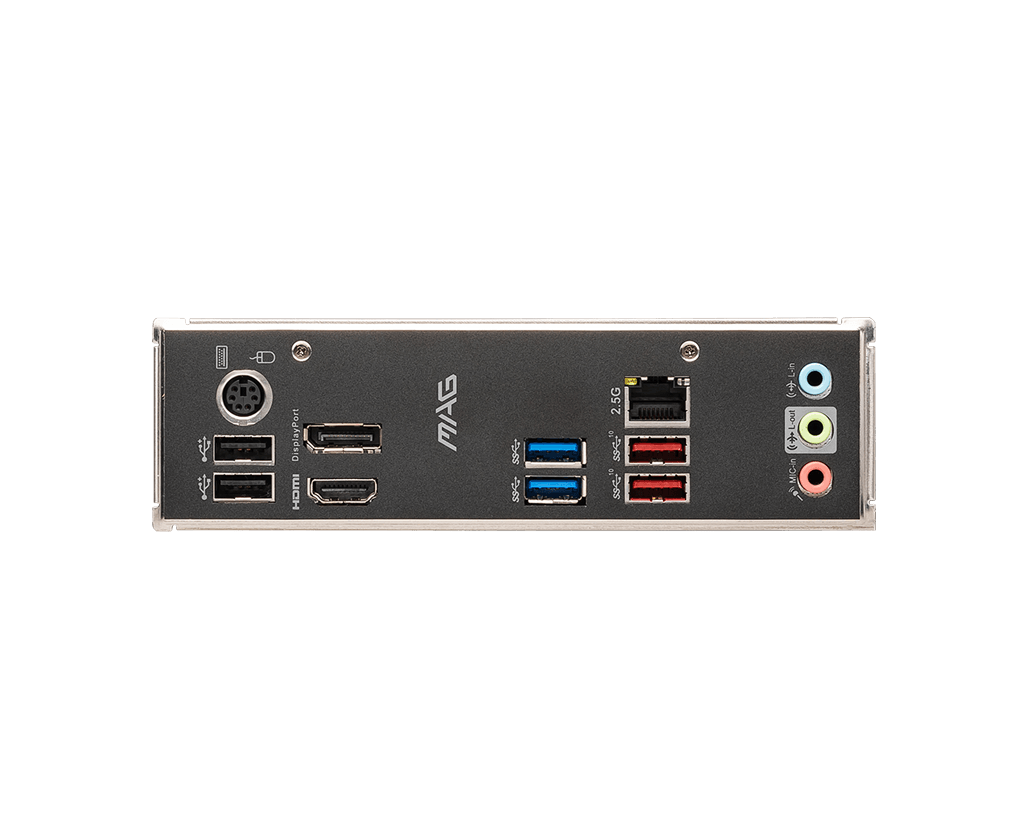

USB ports 2x USB3.2 Gen2 10Gbps (2 Type-A),

5x USB 3.2 Gen1 5Gbps (4 Type-A + 1 Type-C),

6x USB 2.0

LAN Realtek

RTL8125BG 2.5Gbps LAN

Audio 8-Channel (7.1) HD Audio with Audio Boost

Specifications
SKU MBM-B660MBAZOOKA-D4
Barcode # 753459000000
Brand MSI
Shipping weight 1.4600kg
Assembled length 0.282m
Assembled height 0.080m
Assembled width 0.272m
