PERFORMANCE

Processor Intel Core i7-14700, 20C (8P 12E) 28T, Max Turbo up to 5.4GHz, P-core 2.1 5.3GHz, E-core 1.5 4.2GHz, 33MB

AI PC Category AI-Ready Workstations

Processor Sockets 1x FCLGA1700

Integrated Graphics Integrated Intel UHD Graphics 770

Discrete Graphics 1x NVIDIA RTX 2000 Ada Generation 16GB

Chipset Intel W680 Chipset

Memory 2x 16GB SO-DIMM DDR5-4800 ECC

Memory Slots Four DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 192GB (4x 48GB DDR5 SO-DIMM)

PCIe NVMe Controller Integrated NVMe controller

PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal

SATA Controller Integrated SATA controller

SATA SAS Drive None

Audio Chip High Definition (HD) Audio, Realtek ALC897-Q codec

Power Supply 300W 90pct Adapter

DESIGN

Keyboard USB Calliope Keyboard, Black, English

Mouse USB Calliope Mouse, Black

Expansion Slots Two PCIe slots with one PCIe 4.0 x16 and one PCIe 3.0 x8. Slot 1: PCIe 4.0 x16 (via MXM to PCIe riser card), low profile, 75W, double-width Slot 2: PCIe 3.0 x8 (x4 lanes), low profile, 25W

Dust Filter None

Dimensions (WxDxH) 87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches)

Weight 3.6 kg (7.94 lbs, maximum configuration)

CONNECTIVITY

Onboard Ethernet Intel I225-LM I210-AT, 2x RJ-45, 2.5GbE GbE

Optional Ethernet None

WLAN Bluetooth Intel Wi-Fi 6E AX211, 802.11ax 2x2 BT5.1, vPro

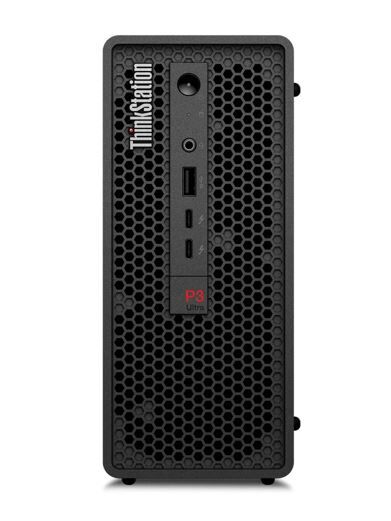

Front Ports 2x Thunderbolt„ 4

1x USB-A (USB 10Gbps USB 3.2 Gen 2)

1x headphone microphone combo jack (3.5mm)

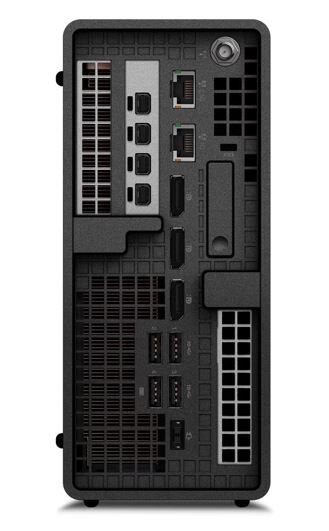

Rear Ports 4x USB-A (USB 10Gbps USB 3.2 Gen 2)

3x DisplayPort„ 1.2

1x Ethernet (2.5GbE RJ-45)

1x Ethernet (GbE RJ-45)

Optional Rear Ports (configured) 4x miniDP 1.4a on NVIDIA RTX 2000 Ada Generation

SECURITY PRIVACY

Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks Kensington Security Slot„, 3 x 7 mm

Chassis Intrusion Switch Chassis Intrusion Switch

MANAGEABILITY

System Management Intel vPro Enterprise with Intel AMT 16

SERVICE

Base Warranty 3-year, Onsite

Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite

CERTIFICATIONS

ISV Certifications Please visit ISV certifications for Lenovo Workstations

Mil-Spec Test MIL-STD-810H military test passed
