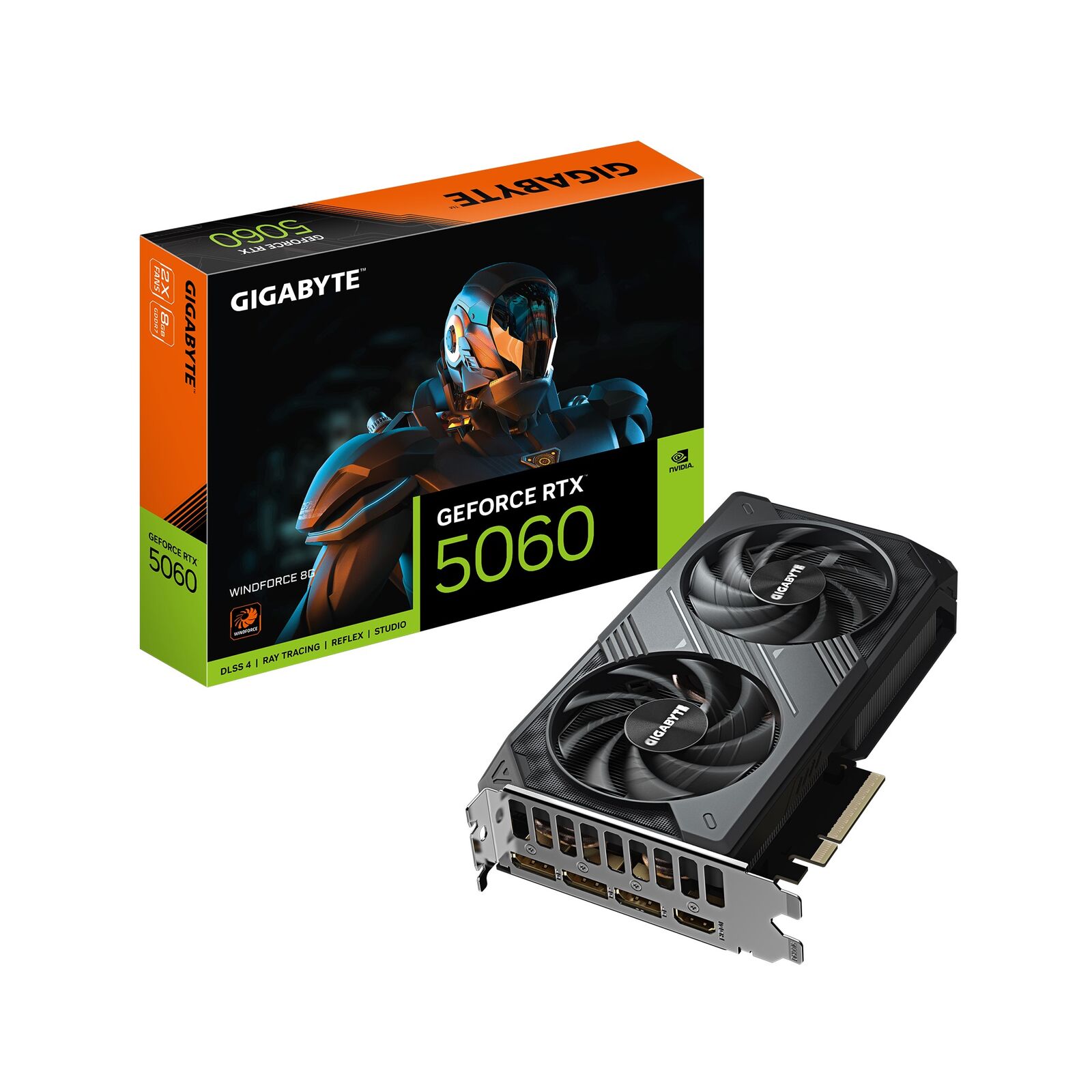

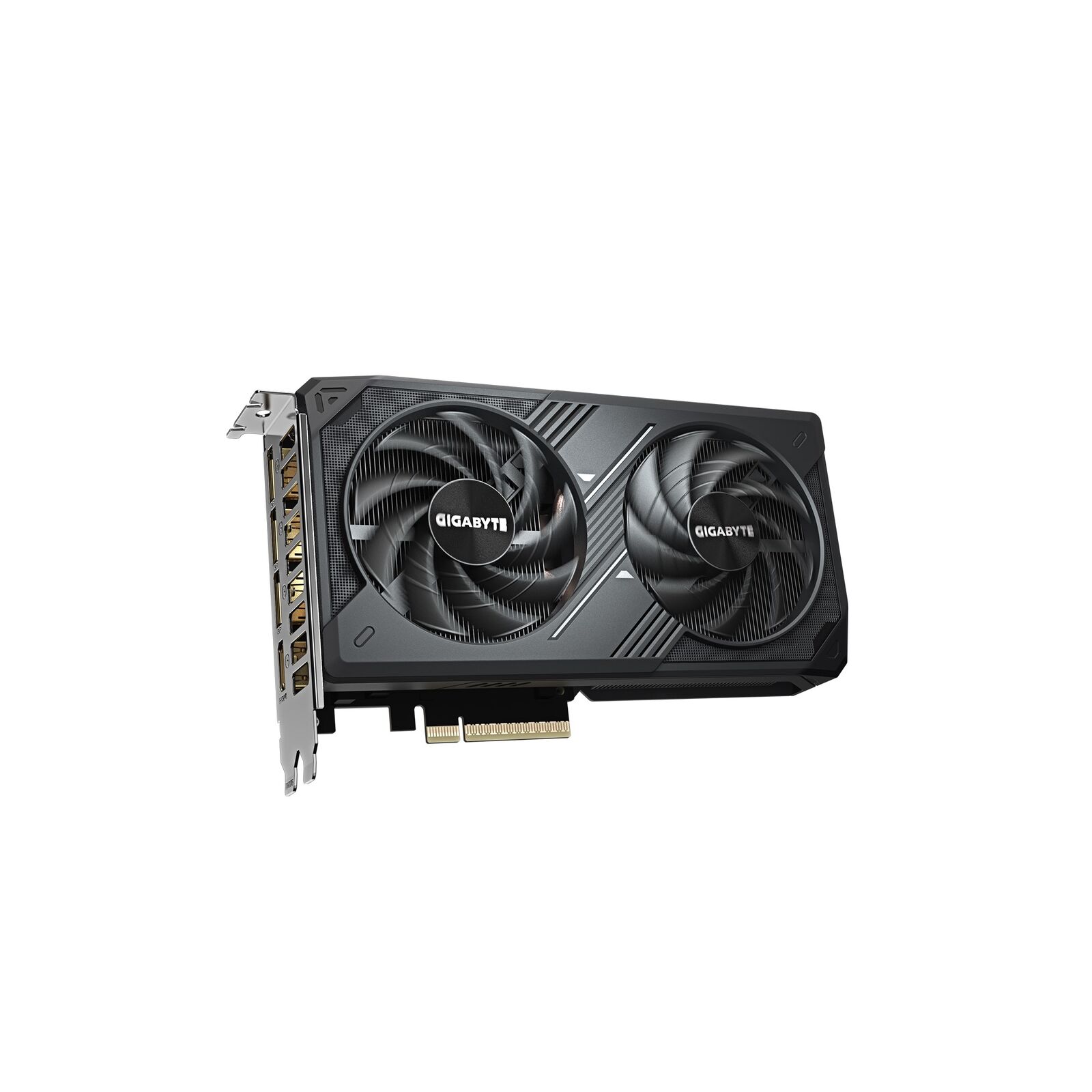

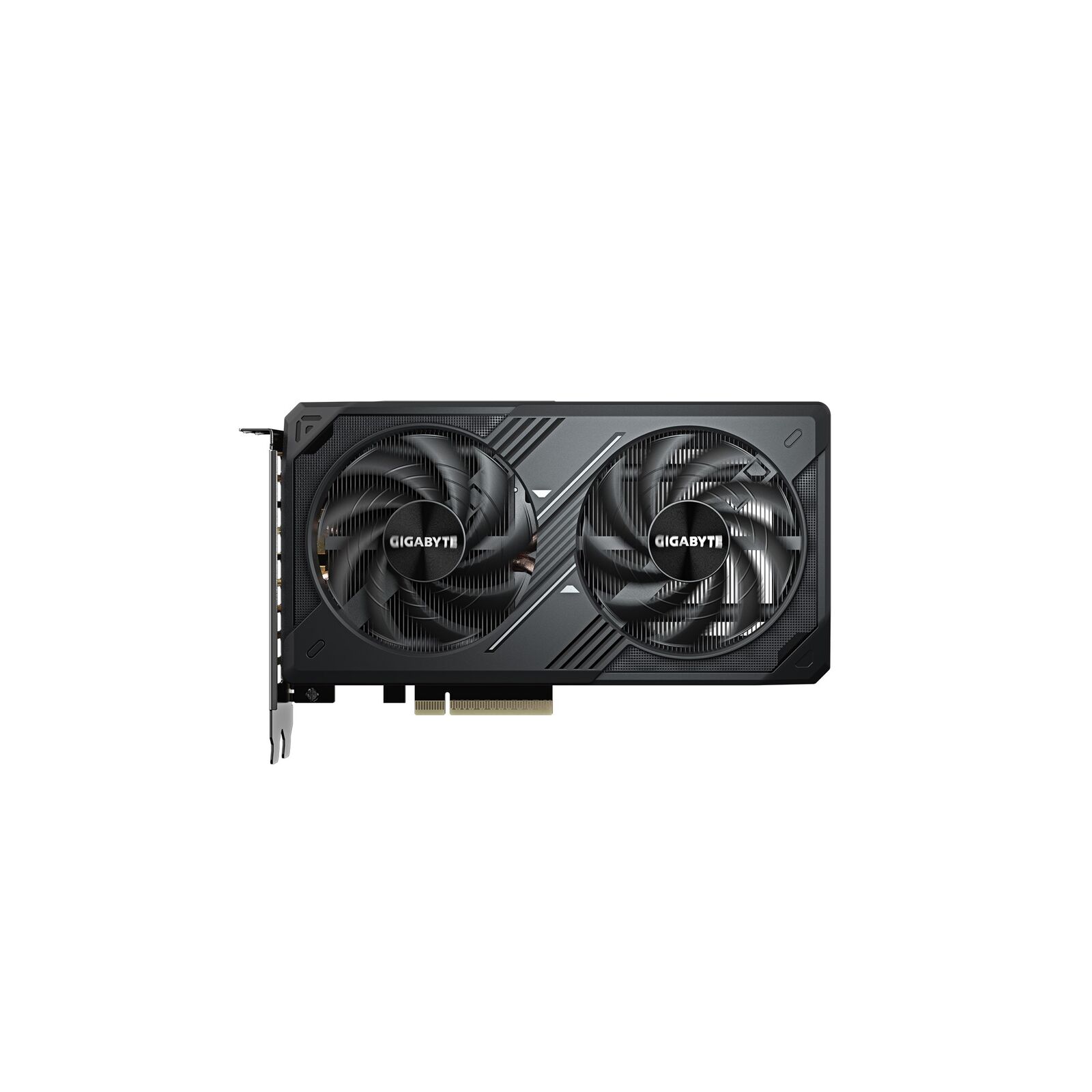

Gigabyte GeForce RTX„ 5060 WINDFORCE 8G, 2497MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 2.1b 3 HDMI 2.1b x1

SPECIFICATION

Graphics Processing

GeForce RTX„ 5060

Core Clock

2497MHz

CUDA Cores

3840

Memory Clock

28 Gbps

Memory Size

8 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=199 W=116 H=40

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

450W

Power Connectors

8 Pin1

Output

DisplayPort 2.1b 3

HDMI 2.1b 1

Accessories

Quick guide

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX„ 5060

Integrated with 8GB GDDR7 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

Reinforced structure

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle fts wing. This design reduces air resistance and noise levels, resulting in up to a 53.6pct increase in air pressure and a 12.5pct increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE

The reinforced backplate, securely fastened to the I O bracket, provides exceptional structural integrity.
