Description

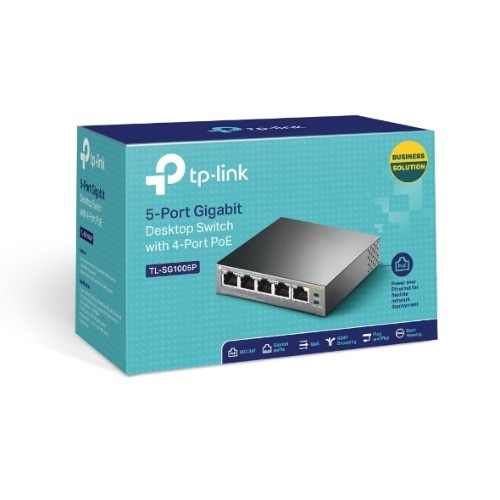

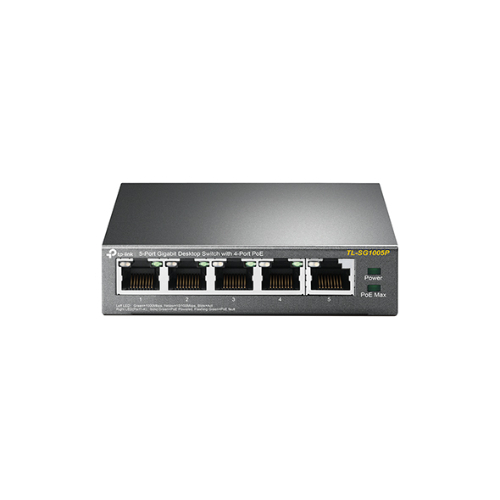

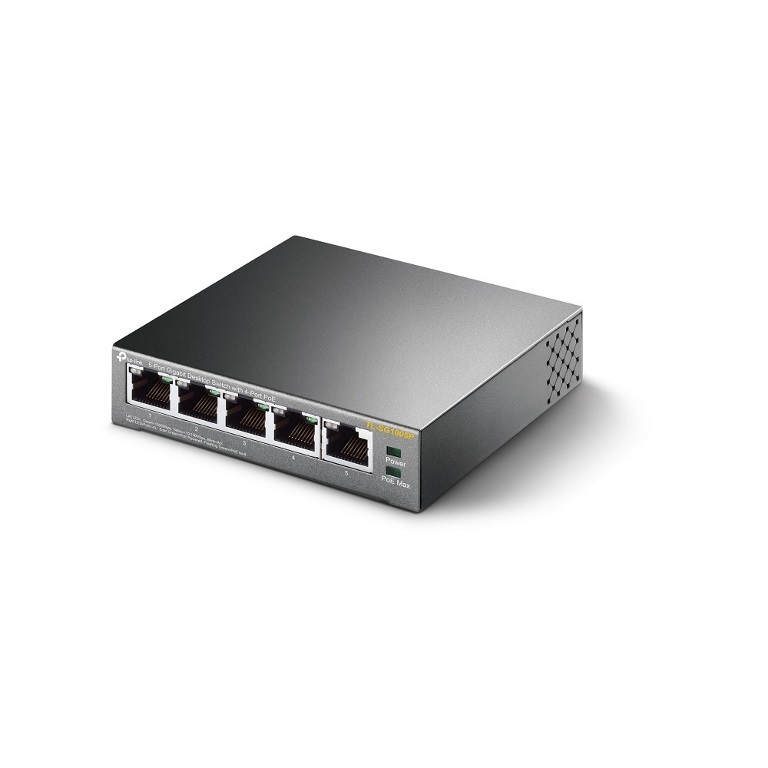

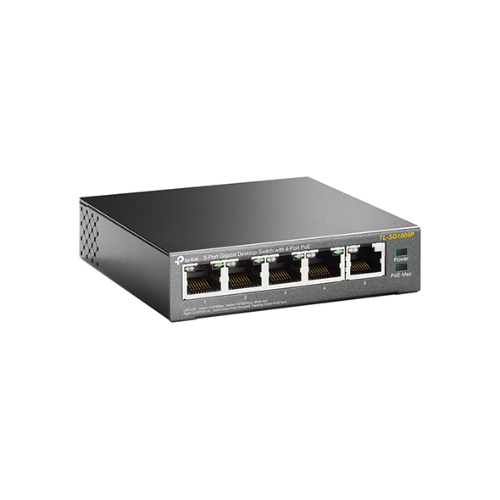

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W


5 10/100/1000Mbps RJ45 ports

With four PoE ports, transfers data and power on one single cable

Working with IEEE 802.3af compliant PDs, expands home and office network

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Supports PoE Power up to 15.4W for each PoE port

Supports PoE Power up to 56W for all PoE ports

Requires no configuration and installation


HARDWARE FEATURES

Interface 5× 10/100/1000Mbps RJ45 Ports

AUTO Negotiation

AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)

Packet Forwarding Rate 7.44 Mpps

PoE Ports (RJ45) Standard: 802.3 af/at compliant

PoE Ports: Ports 1“4

Power Supply: 65 W

Mac Address Table 2K

Jumbo Frame 16 KB

Switching Capacity 10 Gbps

Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption 4.29 W (220/50 Hz. no PD connected)

74.24 W (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation 14.63 BTU/h (no PD connected)

253.16 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Advanced Features Compatible With IEEE 802.3af/at Compliant PDs

Mac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Specifications
SKU NWTL-SG1005P
Barcode # 6935364083212
Brand TP-LINK
Shipping weight 1.3800kg
Shipping width 0.298m
Shipping height 0.222m
Shipping length 0.236m
Assembled length 1.360m
Assembled height 1.220m
Assembled width 1.980m

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

$95.12
RRP $109.00 save 13%

or 4 payments of $23.78 with Learn more

NWTL-SG1008P
In Stock

Product Information

SKU:

NWTL-SG1005P

Brand:

TP-LINK

Barcode #:

6935364083212

Shipping Weigth:

1.3800kg

Warranty:

60
