Description

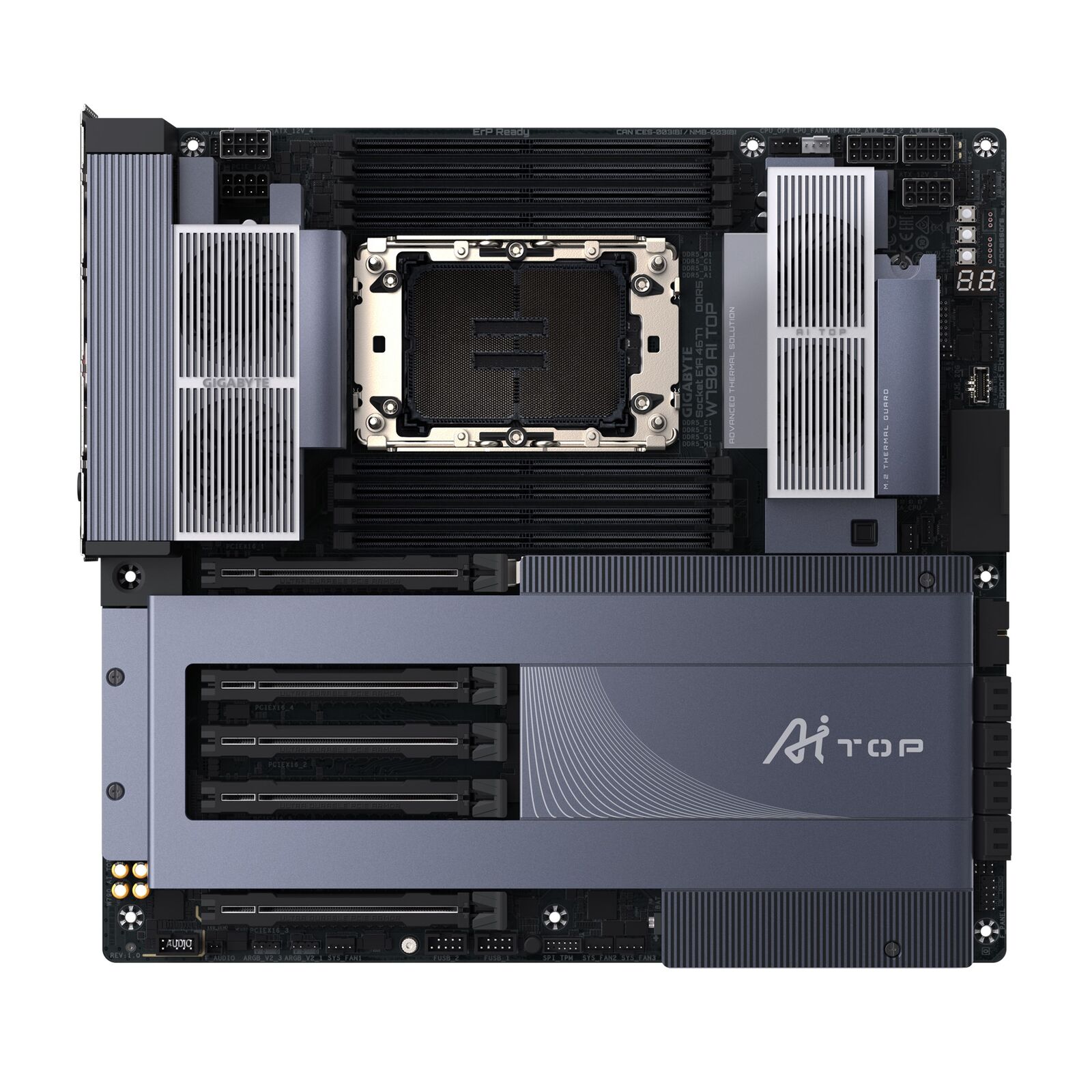

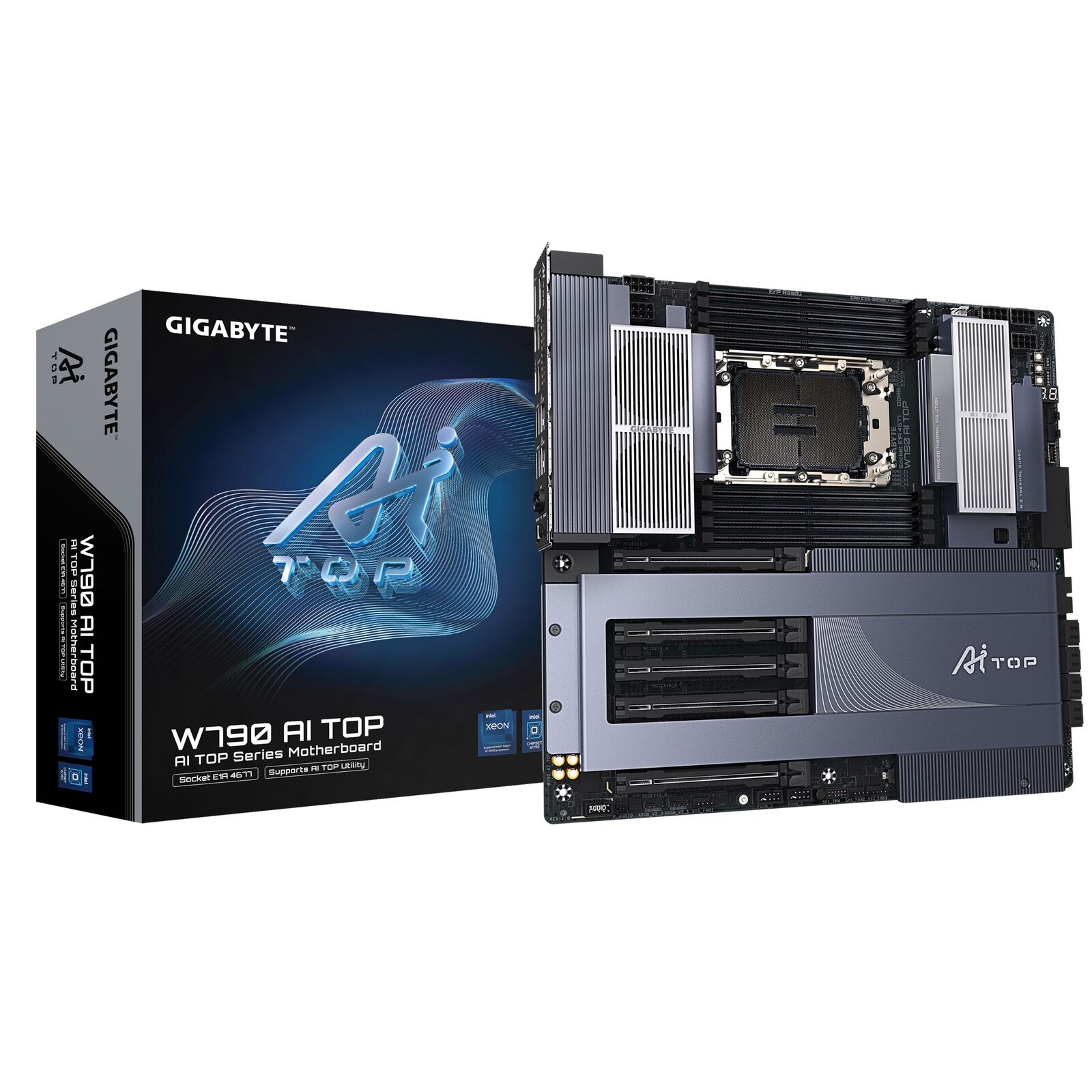

Gigabyte W790 AI TOP Motherboard, Intel W790, 5 x PCI Express x16 slots, 6x M.2, 8 x SATA, 8x USB 3.2, 1 x USB Type-C, Intel Wi-Fi 7


CPU

LGA4677 socket: Support for Intel Xeon W-3500 W-3400 W-2500 W-2400 Series Processors

L3 cache varies with CPU


Chipset

Intel W790 Express Chipset


Memory

Support for 5600(O.C.) 4800 MHz memory modules 8 x DDR5 DIMM sockets

Support for DDR5 ECC Registered memory modules and up to 2 TB of system memory

Support for Extreme Memory Profile (XMP) memory modules


LAN

Intel X710-AT2 10GbE LAN chip (10 Gbps 5 Gbps 2.5 Gbps 1 Gbps 100 Mbps)


Wireless Communication module

Intel Wi-Fi 7 BE200NGW


Expansion Slots

CPU:

- 5 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16


Storage Interface

CPU:

- 4 x M.2 connectors (Socket 3, M key, type 2280 PCIe 5.0 x4 x2 SSD support) (M2A_CPU, M2B_CPU, M2C_CPU, M2D_CPU)

Chipset:

- 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4 x2 SSD support) (M2E_SB, M2F_SB)

- 8 x SATA 6Gb s connectors


USB

ChipsetIntel Thunderbolt„ 4 Controller:

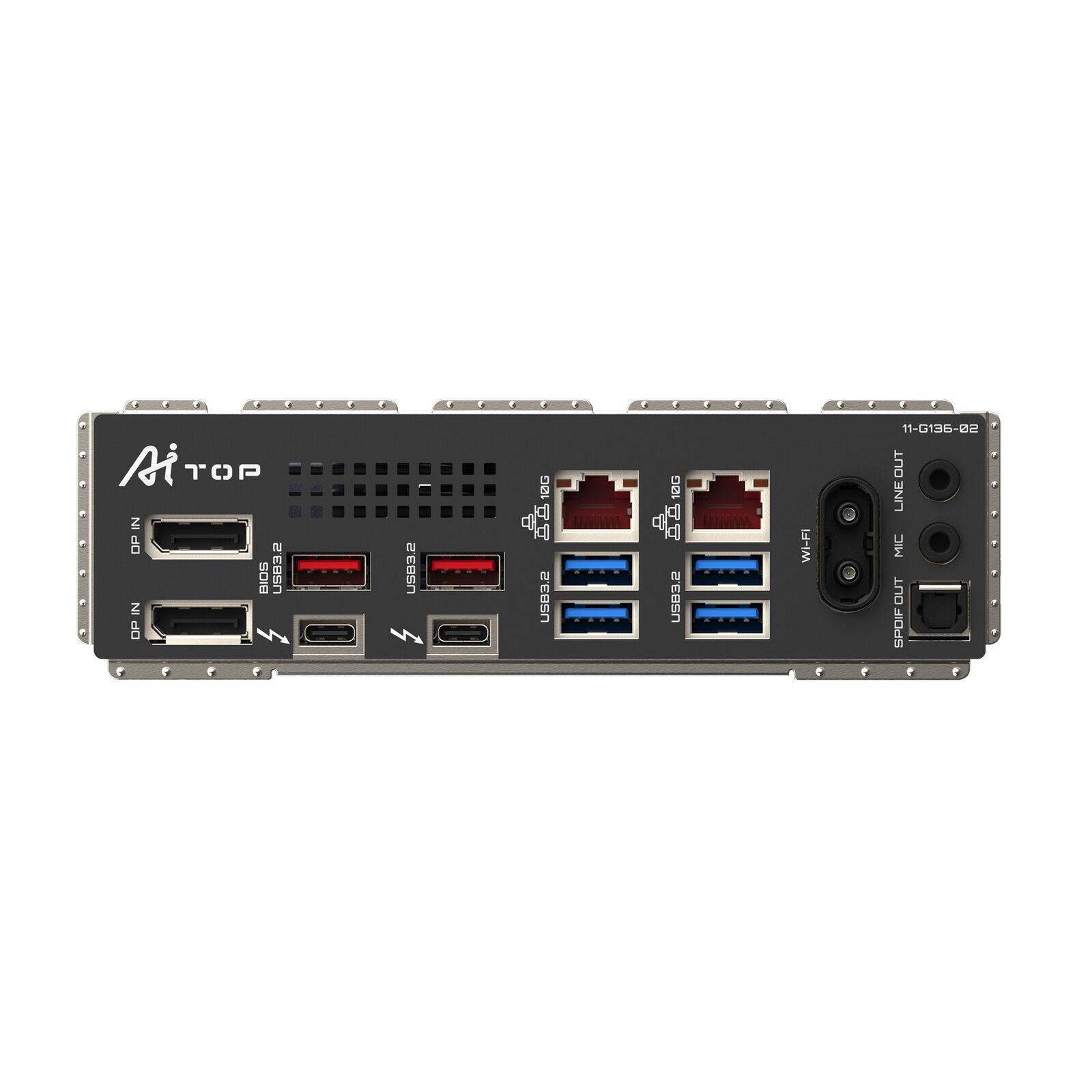

- 2 x USB4 USB Type-C ports on the back panel

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

ChipsetUSB 2.0 Hub:

- 4 x USB 2.0 1.1 ports available through the internal USB headers

Specifications
SKU MBG-W790AITOP
Barcode # 4719331866556
Brand Gigabyte
Shipping weight 3.5600kg
Shipping width 0.434m
Shipping height 0.196m
Shipping length 0.476m

Gigabyte W790 AI TOP Motherboard, Intel W790, 5 x PCI Express x16 slots, 6x M.2, 8 x SATA, 8x USB 3.2, 1 x USB Type-C, Intel Wi-Fi 7
