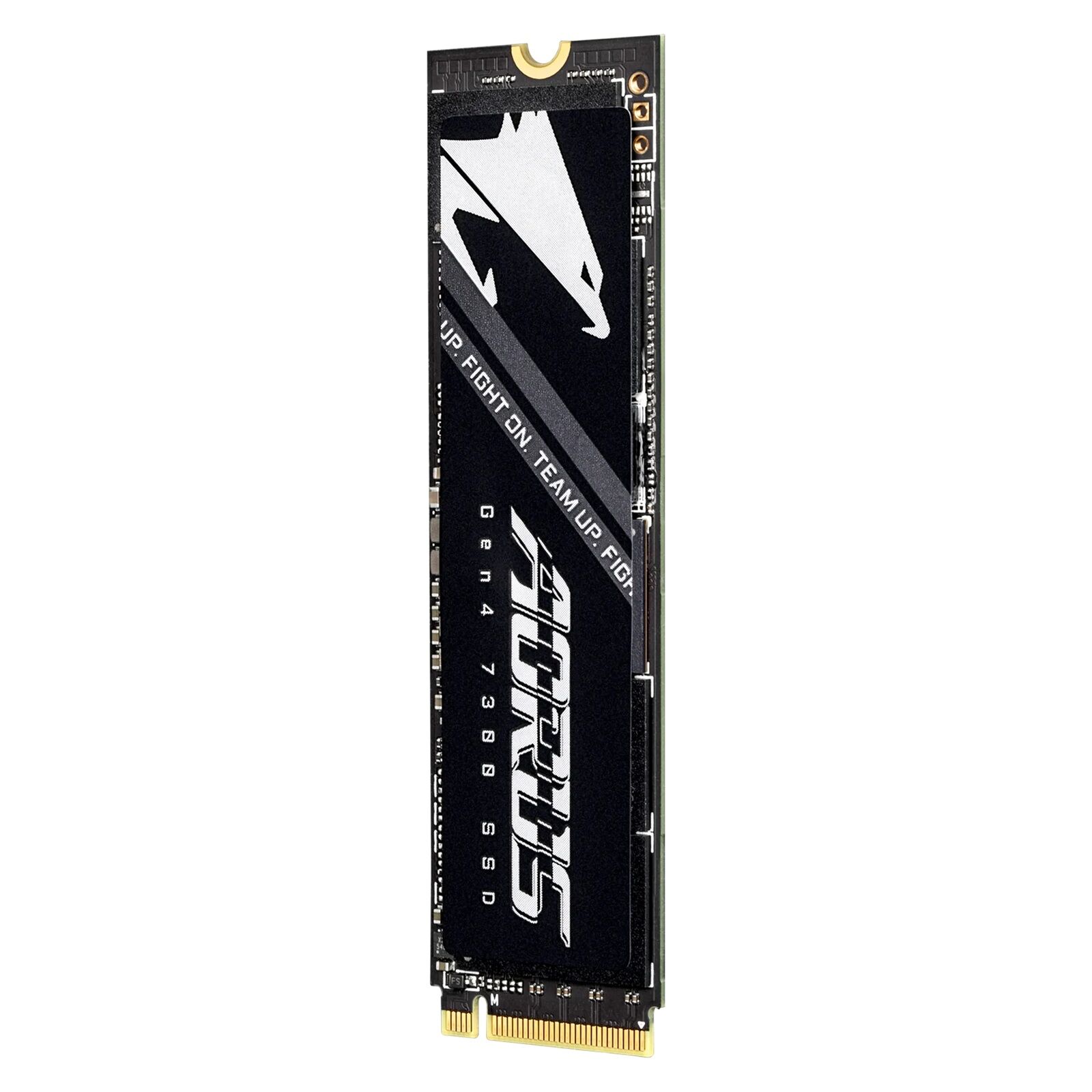

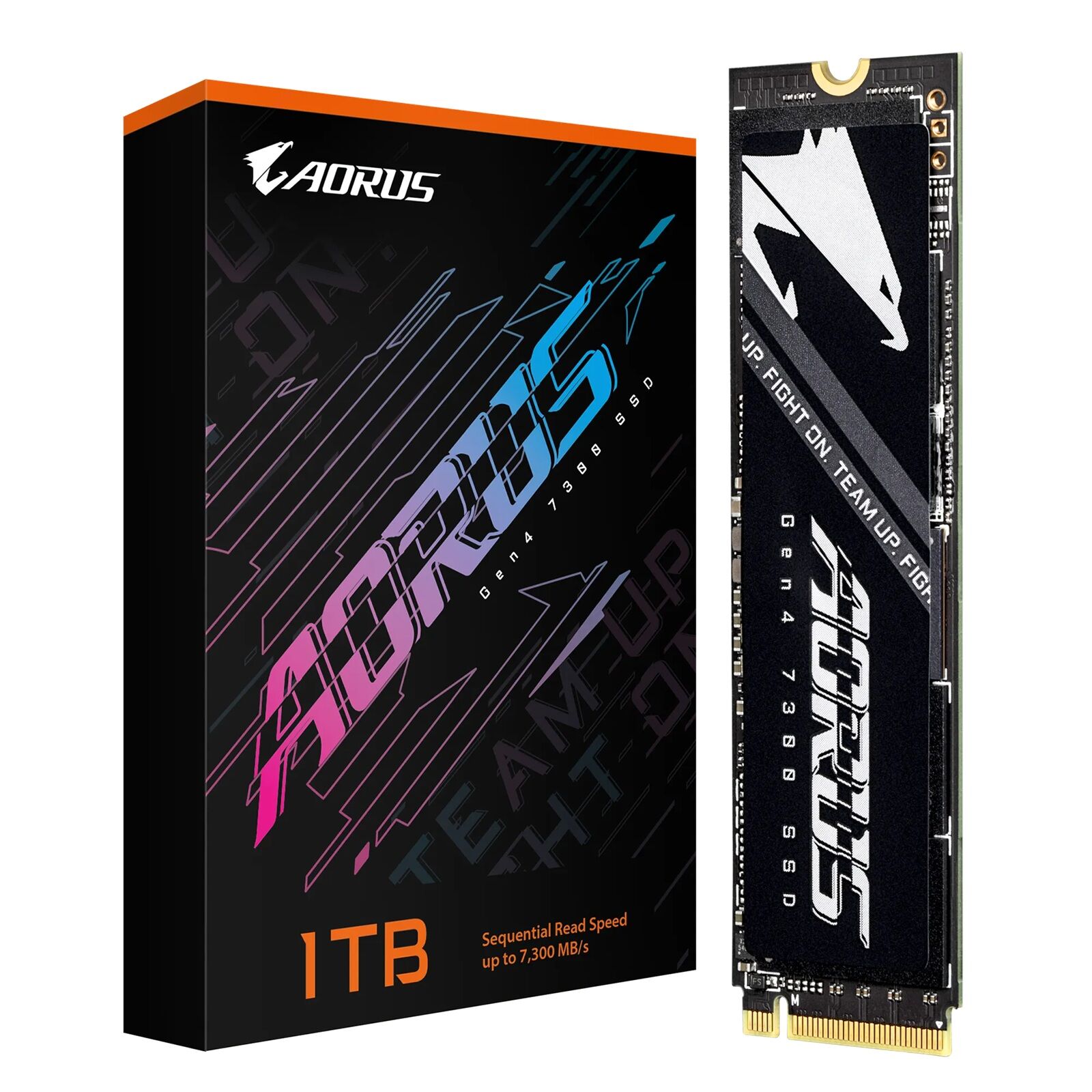

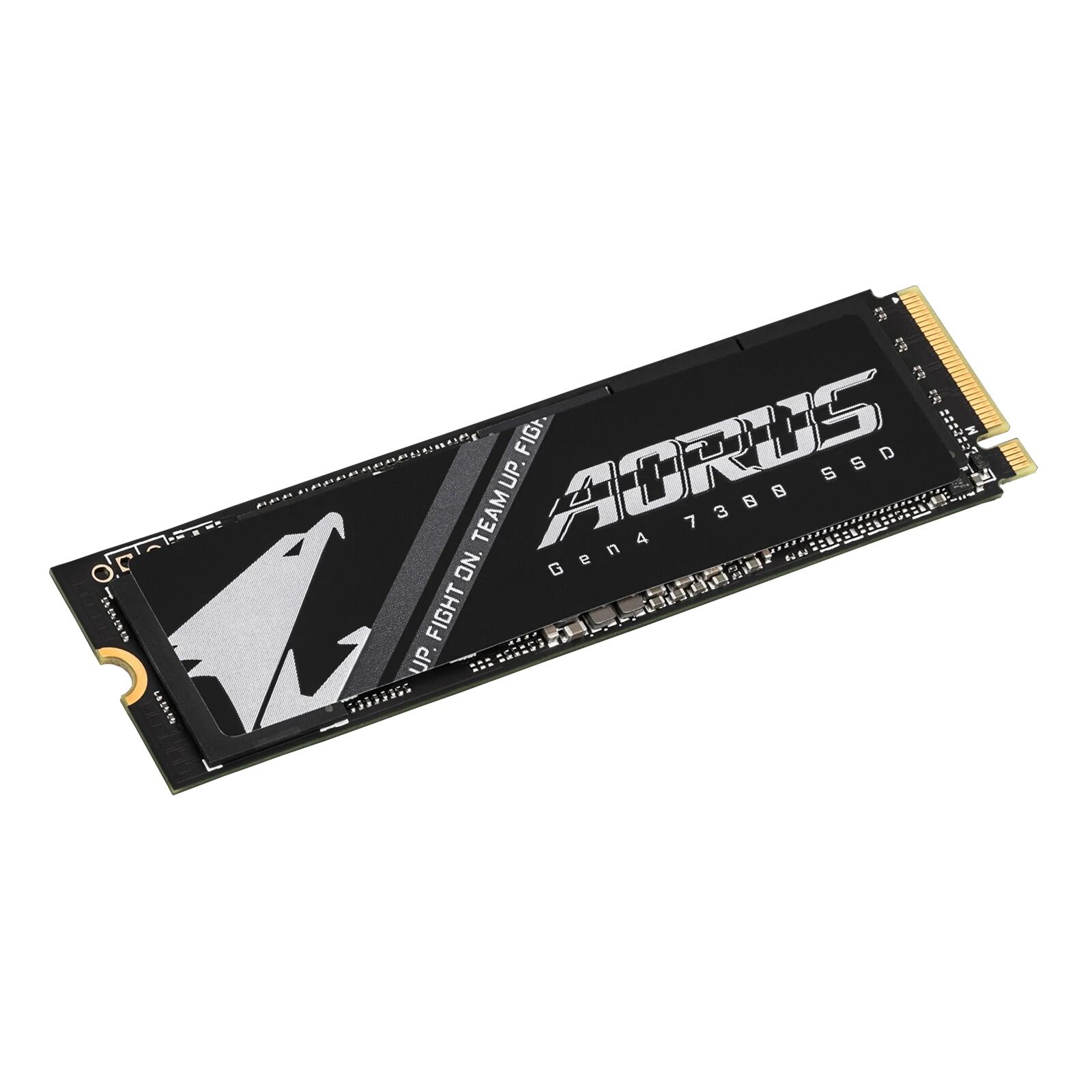

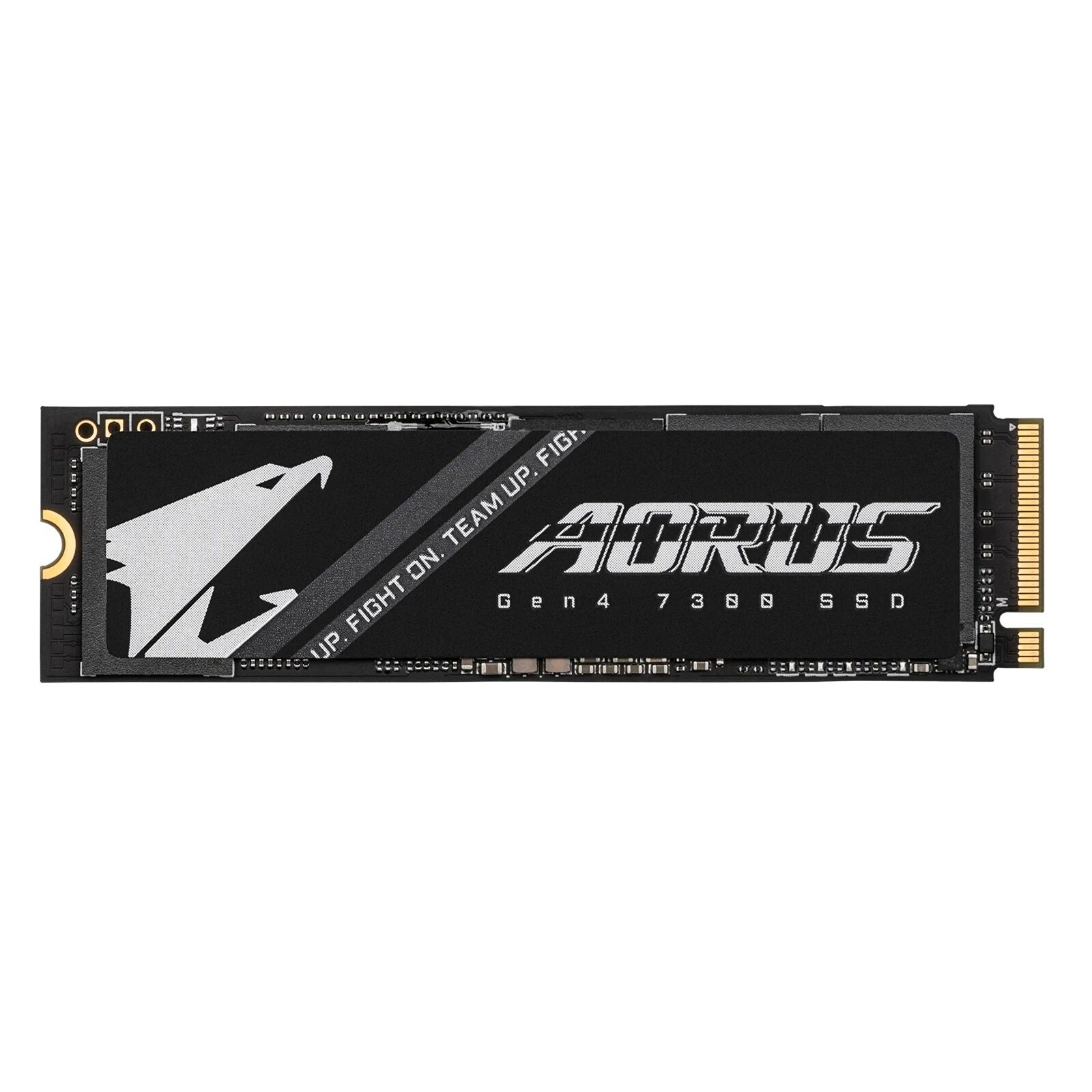

Gigabyte AORUS Gen4 7300 SSD 1TB PCIe4x4 NVMe1.4 M.2 2280 3D TLC DDR4 1GB 7300 6000MB s 80—22—2.3mm MTBF1.6M 6.6W 6.7W 5yr 700TBW

Interface PCI-Express 4.0 x4, NVMe 1.4

Form Factor M.2 2280

Total Capacity 1000GB

NAND 3D TLC NAND Flash

External DDR Cache DDR4 1GB

Sequential Read speed Up to 7300 MB s

Sequential Write speed Up to 6000 MB s

Dimension 80 x 22 x 2.3 mm (Single Side)

Mean time between failure (MTBF) 1.6 million hours

Max. Operating Power

Read: 6.6W

Write: 6.7W

Power Consumption (Idle, PS3) 30mW

Power Consumption(PS4, L1.2) 3mW

Temperature (Operating) 0 degreeC to 70 degreeC

Temperature (Storage) -40 degreeC to 85 degreeC

Warranty

1. Limited 5-years or 700TBW.

2. Limited warranty based on 5 years or 700TBW, whichever comes first. (TBW is evaluated by JEDEC workload standard. )

TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the ftPercentage Used ft (SMART ID: 05) in SMART page of ftGIGABYTE SSD toolbox ft reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

Performance may vary based on SSD fts firmware version and system hardware configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

Speeds based on internal testing. Actual performance may vary.

1GB = 1 billion bytes. Actual useable capacity may vary.

Test Configuration

OS: Windows 11 22H2 (OS build 22621.819)

CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G

Memory: DDR5 5600 16GBx2

Chipset: AM5 X670 (X670E AORUS MASTER)

The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

All trademarks and logos are the properties of their respective holders.

Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
