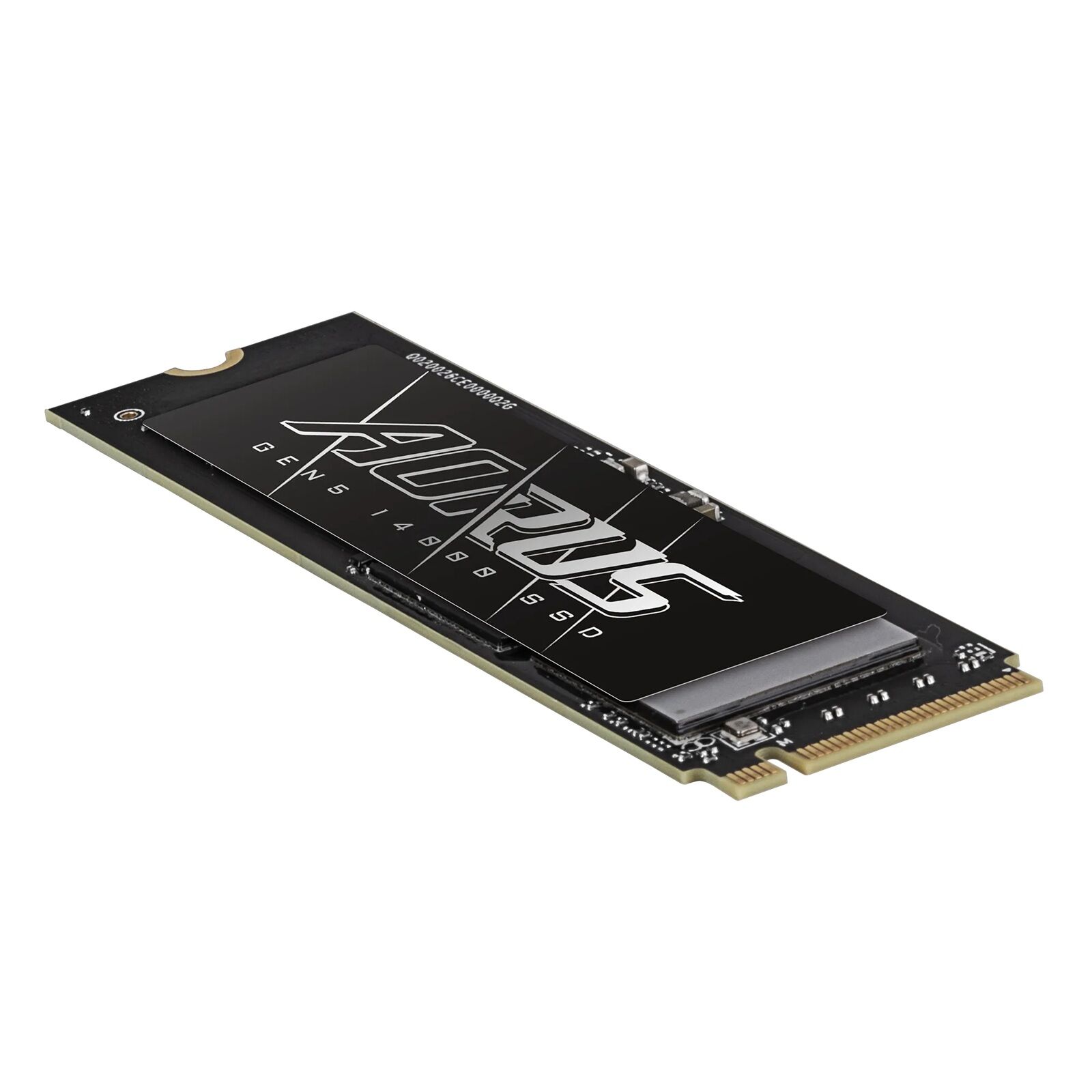

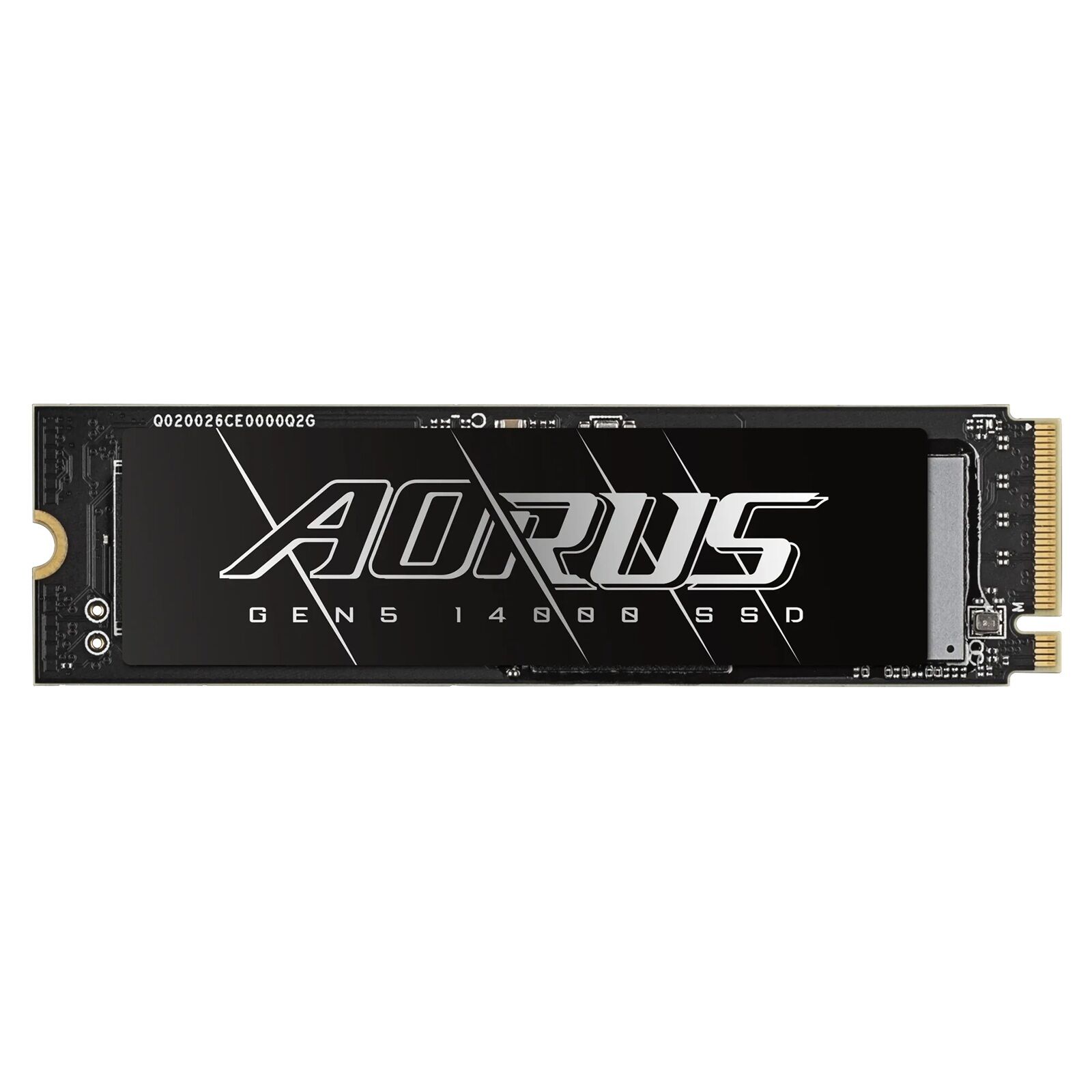

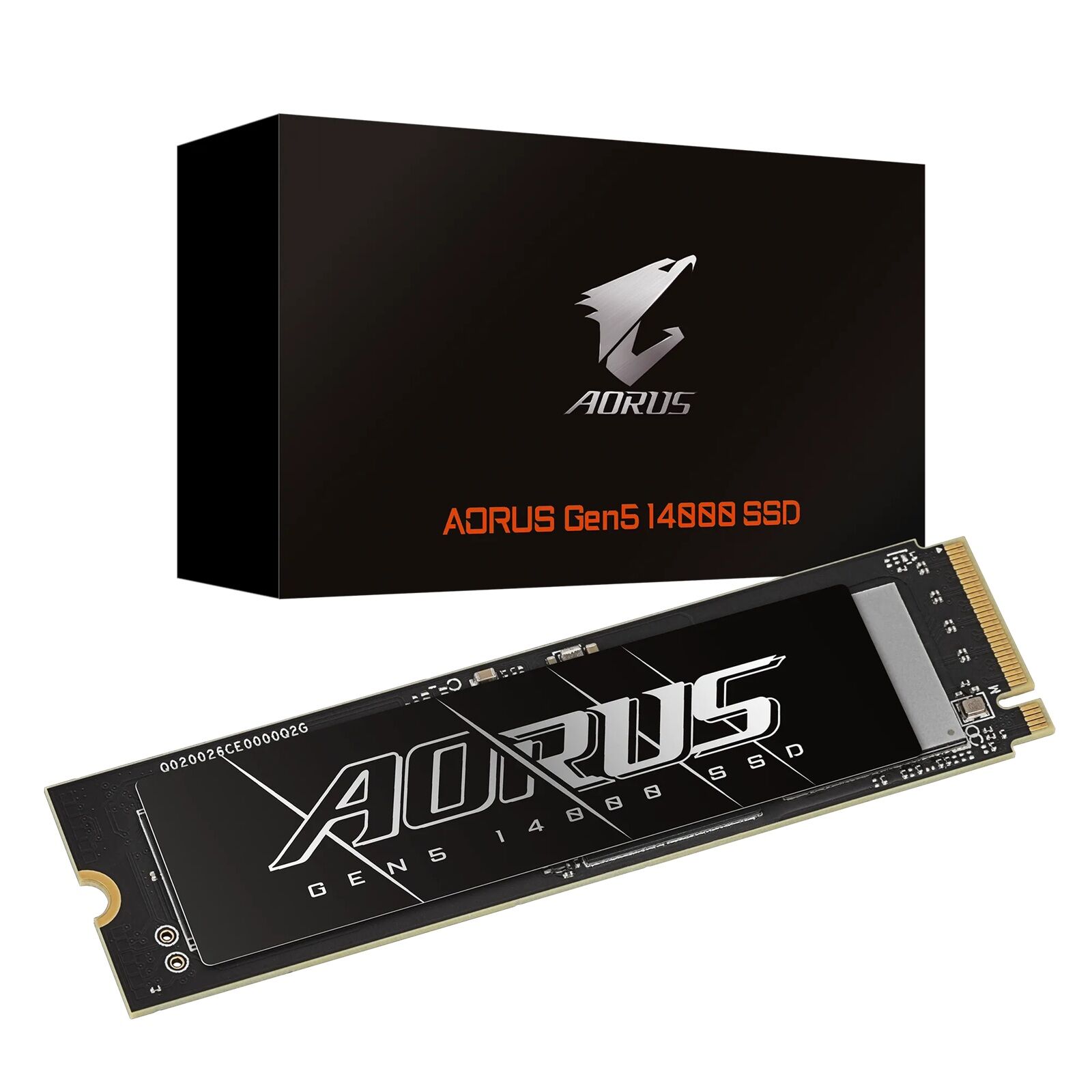

Gigabyte AORUS Gen5 14000 SSD 2TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 4GB 14500 12700MB s 80—22—3.5mm MTBF1.6M 11.5W 5yr 1400TBW

Interface PCI-Express 5.0x4, NVMe 2.0

Form Factor M.2 2280

Total Capacity 2000GB

NAND 3D TLC NAND Flash

External DDR Cache LPDDR4 4GB

Sequential Read speed Up to 14,500 MB s

Sequential Write speed Up to 12,700MB s

Dimension 80 x 22 x 3.5 mm

Mean time between failure (MTBF) 1.6 million hours

Max. Operating Power Read : 11.5W Write : 11.5W

Power Consumption (Idle, PS3) 144mW

Power Consumption(PS4, L1.2) 85mW

Temperature (Operating) 0 degreeC to 70 degreeC

Temperature (Storage) -40 degreeC to 85 degreeC

Warranty

1. Limited 5-years or 1400TBW.

2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (TBW is evaluated by JEDEC workload standard. )

TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the ftPercentage Used ft (SMART ID: 05) in SMART page of ftGIGABYTE SSD toolbox ft reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

Performance may vary based on SSD fts firmware version and system hardware configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

Speeds based on internal testing. Actual performance may vary.

1GB = 1 billion bytes. Actual useable capacity may vary.

The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

All trademarks and logos are the properties of their respective holders.

Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
