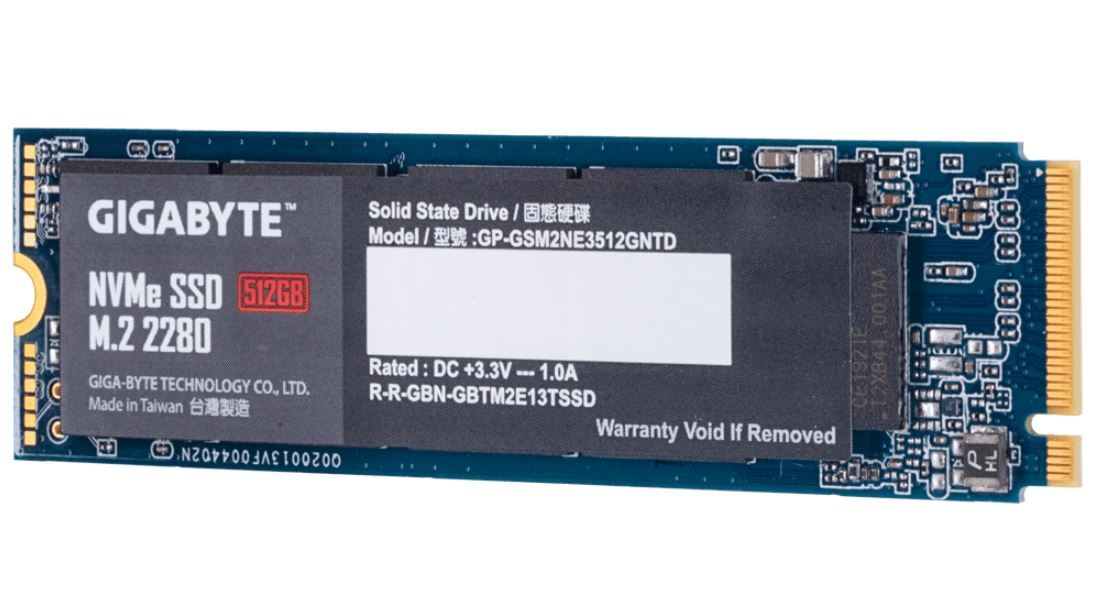

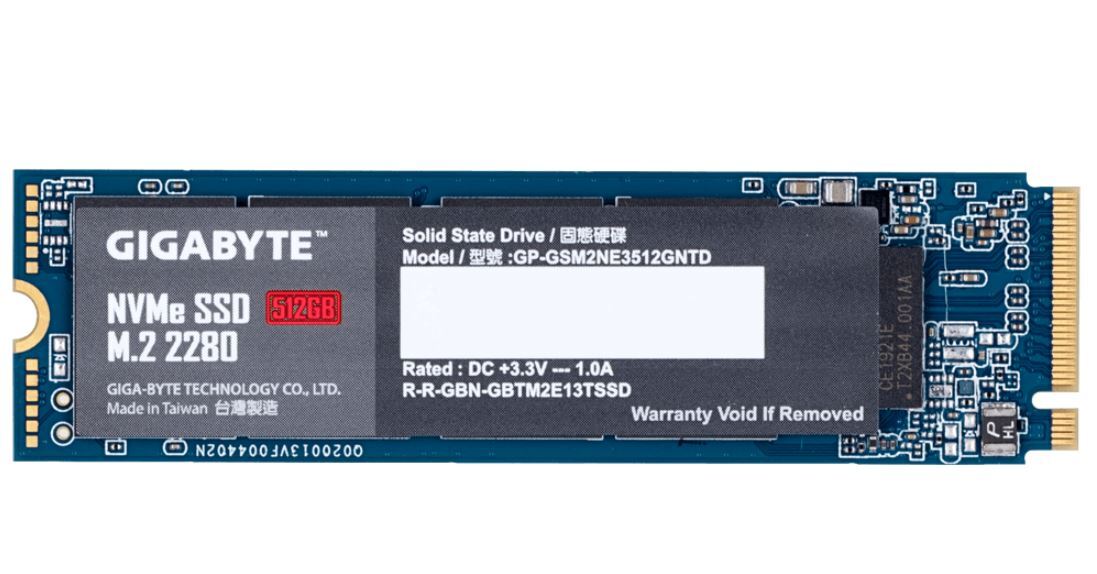

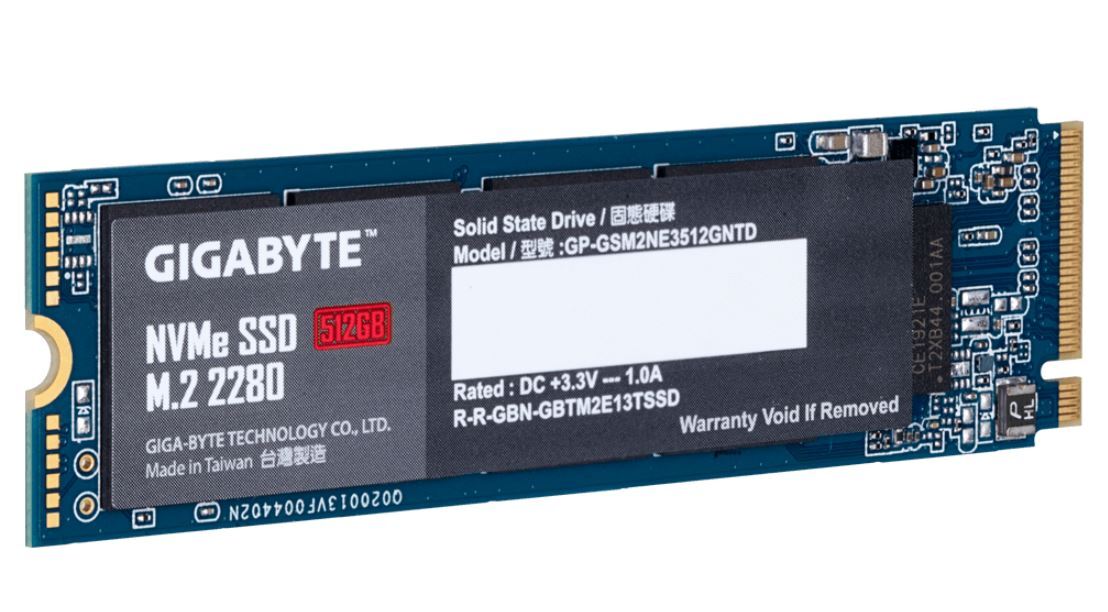

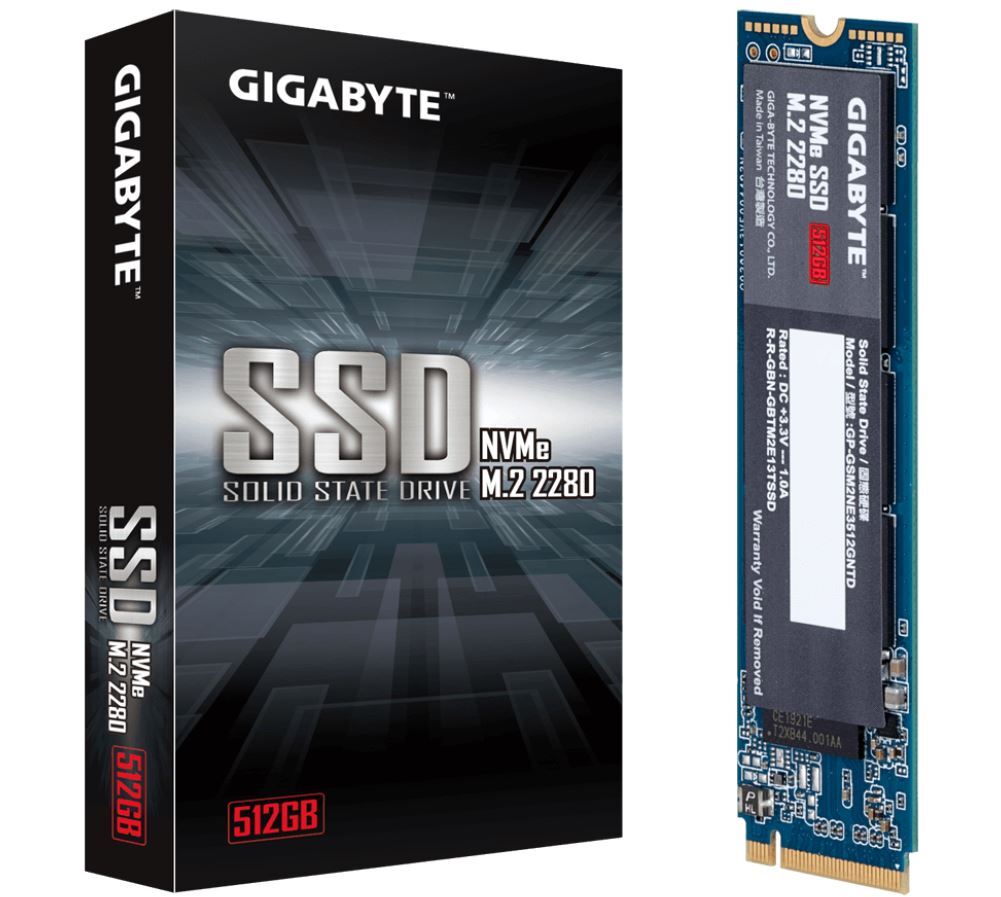

Gigabyte M.2 PCIe NVMe SSD 512GB V2 1700/1550 MB/s 270K/340K IOPS 2280 80mm 1.5M hrs MTBF HMB TRIM & S.M.A.R.T Solid State Drive 5yrs Wty

Form Factor: M.2 2280

Interface: PCI-Express 3.0 x4, NVMe 1.3

Total Capacity: 512GB*

Warranty: Limited 5-year or 800TBW

Sequential Read Speed : up to 1700 MB/s**

Sequential Write speed : up to 1550 MB/s**

HMB (Host Memory Buffer) supported

TRIM & S.M.A.R.T supported

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.

**Speeds based on internal testing. Actual performance may vary.

Interface PCI-Express 3.0 x4, NVMe 1.3

Form Factor M.2 2280

Total Capacity 512GB

Warranty Limited 5-year or 800TBW

NAND NAND Flash

External DDR Cache N/A

Sequential Read speed Up to 1700 MB/s

Sequential Write speed Up to 1550 MB/s

Random Read IOPS Up to 270K

Random Write IOPS Up to 340K

Dimension (W x H x L) 80 x 22 x 2.3 mm

Mean time between failure (MTBF) 1.5M hours

Power Consumption (Active) Avg. read : 3.3W ; Write : 2.8W

Power Consumption (Idle) 1.8mw

Temperature (Operating) 0°C to 70°C

Temperature (Storage) -40°C to 85°C

Note

* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.

* Speeds based on internal testing. Actual performance may vary.

* TBW (Terabyte Written):Terabytes Written' is the total amount of data that can be written into an SSD before it is likely to fail.

* 1GB = 1 billion bytes. Actual useable capacity may vary.

* 5-years or 800TBW, whichever comes first.
