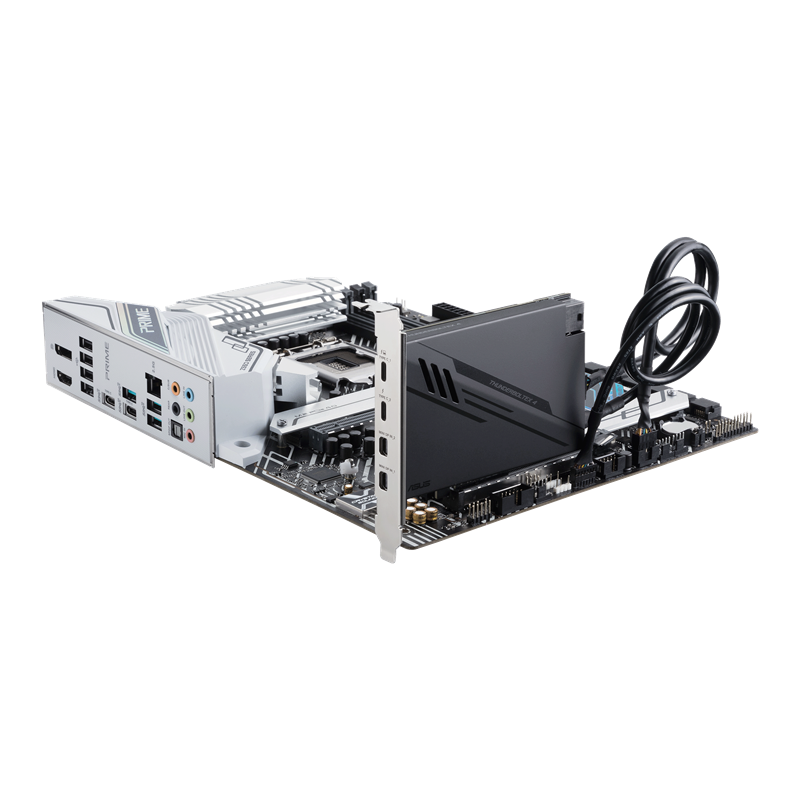

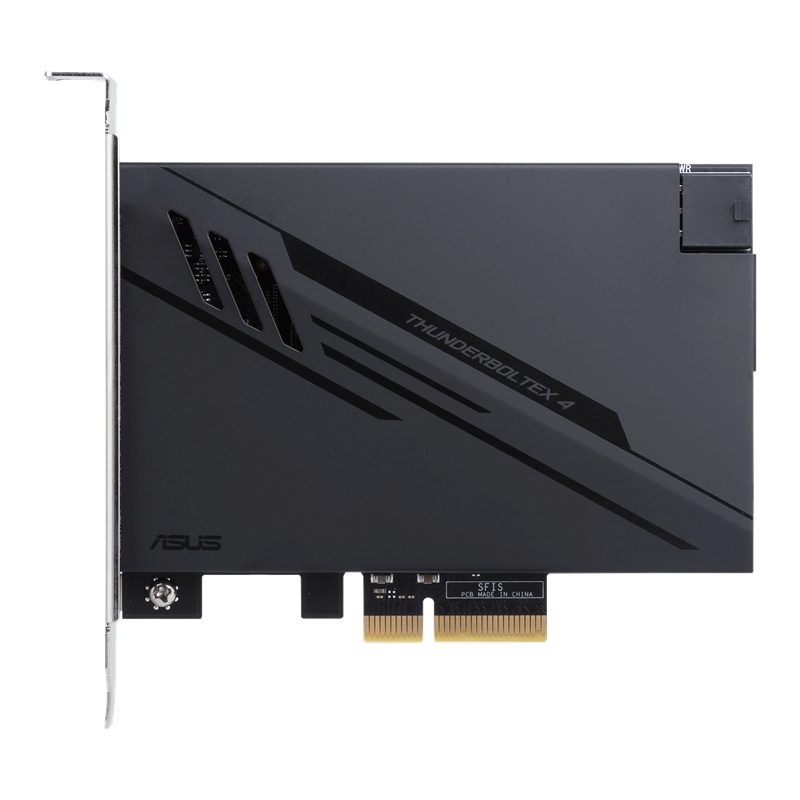

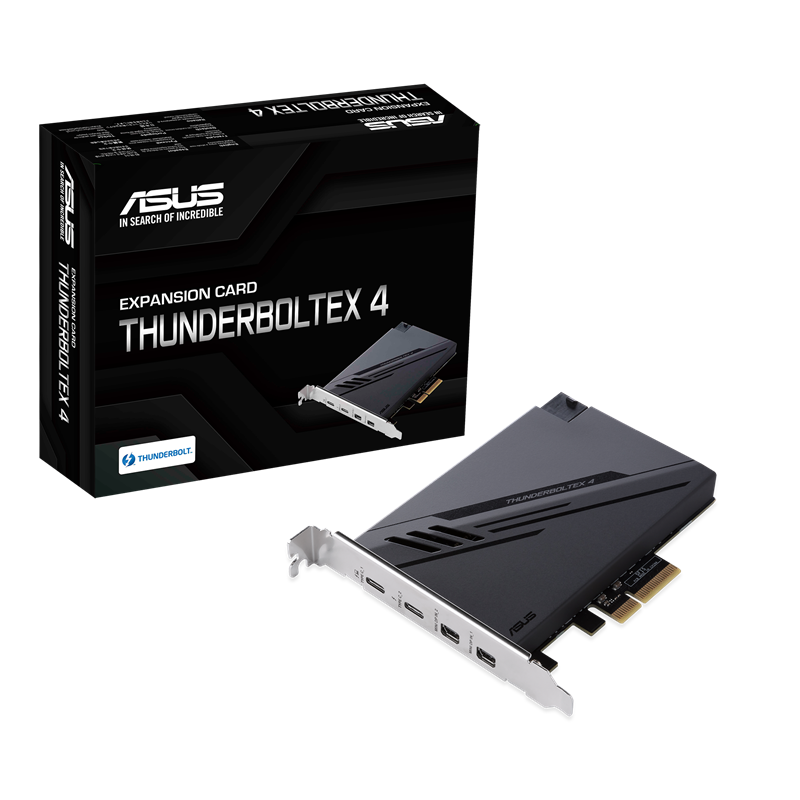

ASUS ThunderboltEX 4 expansion card, dual Thunderbolt„ 4 (USB‘C) ports, DisplayPort„ 1.4, PCIe 3.0 x4 interface

Intel-certified Thunderbolt„ 4 add-on card

40 Gbps bi-directional bandwidth for superfast data transfers and video output

Dual Thunderbolt„ 4 ports (USB-C), with support for up to five Thunderbolt devices in a daisy chain

DisplayPort„ 1.4 for 8K Ultra HD support

Supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C charging for laptops.

Chipset

Intel Thunderbolt„ 4 JHL8540 Controller

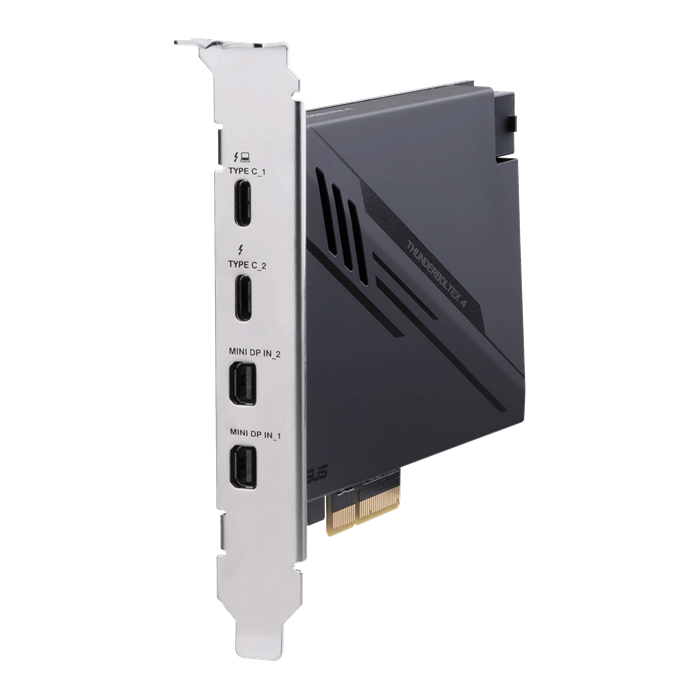

External Connectors

2 x USB Type-C ports (Support Thunderbolt„ 4 and USB 4 technology)

- up to 40Gbps for Thunderbolt devices

- The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.

2 x mini DisplayPort IN ports

1 x 6-pin PCIe power connector for quick charge function

1 x USB 2.0 header

1 x Thunderbolt header

Interface

PCIe 3.0 x4 interface

VGA

Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz*

* Max resolution support will depend on your VGA source

Accessories

2 x mini DisplayPort cables (links graphics output from motherboards or discrete graphics cards DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card)

1 x USB 2.0 cable

1 x 14-1 pin Thunderbolt header cable

1 x User manual

1 x Support DVD with Thunderbolt„ driver

Compatible Models

ASUS Intel 500 series and later models with 14-1 pin Thunderbolt header.

*Refer to the following link for an up-to-date list of compatible models:

https://www.asus.com/Motherboard-Accessories/ThunderboltEX-4/HelpDesk_Manual/

Operating System

Windows 10 - 64 bit
