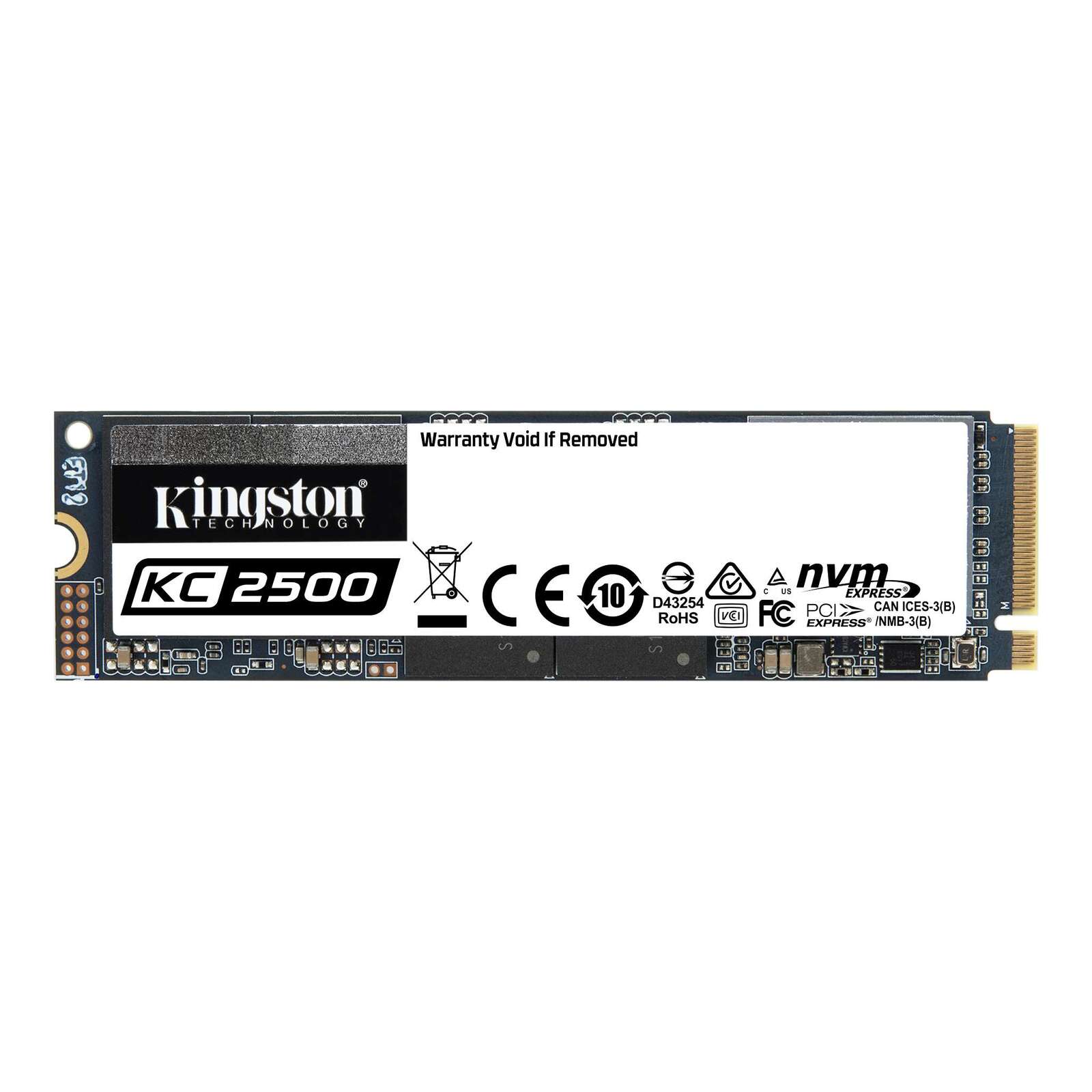

Kingston KC2500 1TB M.2 NVMe PCle SSD 3D NAND 3,500/2,900MB/s 375,000/300,000 IOPS 600TBW XTS-AES 256 bit Encryption 2M hrs MTBF 5yr wty

Kingstons KC2500 NVMe PCIe SSD delivers powerful performance using the latest Gen 3.0 x 4 controller and 96-layer 3D TLC NAND. With read/write speeds up to 3,500/2,900MB/s1, KC2500 delivers outstanding endurance and improves the workflow in desktop, workstations, and high-performance computing (HPC) systems. The compact M.2 design gives greater flexibility, increasing storage but also saving space.

Available in capacities from 250GB“2TB2 to meet your systems needs. KC2500 is a self-encrypting drive that supports end-to-end data protection using XTS-AES 256 bit Hardware-based encryption and allows the usage of independent software vendors with TCG Opal 2.0 security management solutions such as Symantec„, McAfee„, WinMagic and others. KC2500 also has built-in Microsoft eDrive support, a security storage specification for use with BitLocker.

Form Factor M.2 2280

Interface NVMe„ PCIe Gen 3.0 x 4 Lanes

Capacities 250GB, 500GB, 1TB, 2TB

Controller SMI 2262EN

NAND 96-layer 3D TLC

Encrypted XTS-AES 256 bit

Sequential Read/Write1 250GB “ up to 3,500/1,200MB/s

500GB “ up to 3,500/2,500MB/s

1TB “ up to 3,500/2,900MB/s

2TB “ up to 3,500/2,900MB/s

Random 4K Read/Write1 250GB “ up to 375,000/300,000 IOPS

500GB “ up to 375,000/300,000 IOPS

1TB “ up to 375,000/300,000 IOPS

2TB “ up to 375,000/300,000 IOPS

Total Bytes Written (TBW)3 250GB “ 150TBW

500GB “ 300TBW

1TB “ 600TBW

2TB “ 1.2PBW

Power Consumption .003W Idle / .2W Avg / 2.1W (MAX) Read / 7W (MAX) Write

Storage Temperature -40°C~85°C

Operating Temperature 0°C~70°C

Dimensions 80mm x 22mm x 3.5mm

Weight 250GB “ 8g

500GB “ 10g

1TB “ 10g

2TB “ 11g

Vibration Operating 2.17G Peak (7-800Hz)

Vibration Non-operating 20G Peak (20-1000Hz)

MTBF 2,000,000

Warranty/Support4 Limited 5-year warranty with free technical support
