Description

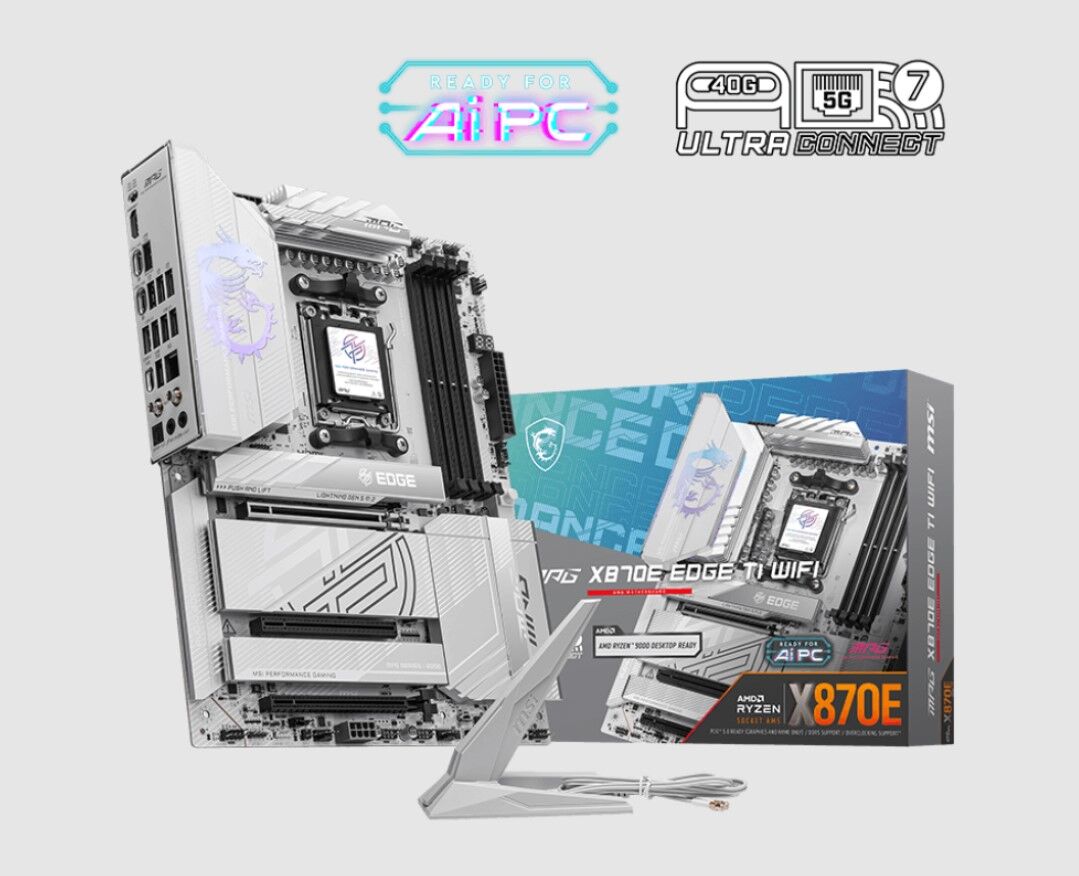

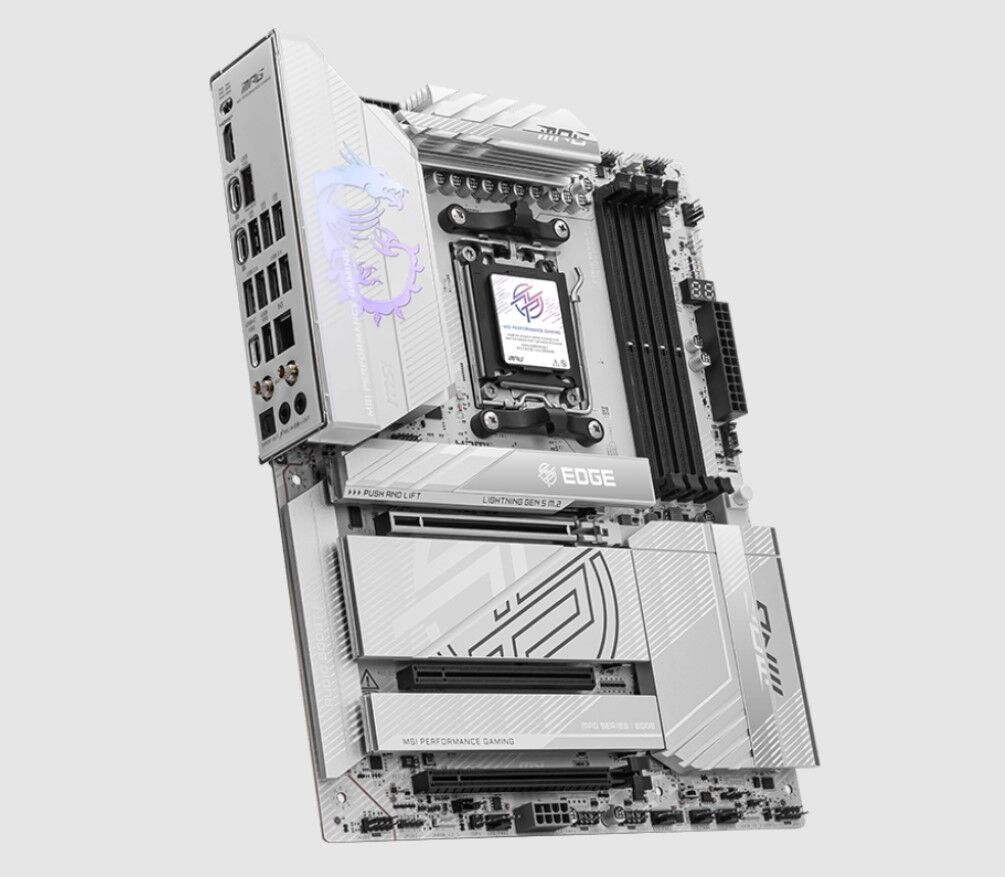

MSI MPG X870EEDGE TI WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 3x PCIe x16, 4x M.2, 8x USB 2.0, 4x USB-C


Chipset

AMD X870E


CPU

Supports AMD Ryzen„ 9000 8000 7000 Series Desktop Processors

Socket AM5


Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB


Onboard Graphics

1x HDMI„

Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz

2x Type-C DisplayPort

USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz


Slot

3x PCI-E x16 slot


Audio

Realtek ALC4080 Codec

7.1-Channel USB High-Performance Audio


Storage

4x M.2


RAID

Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen„ 9000 7000 series CPU.


LAN

1x Realtek 8126 5G LAN


WIRELESS LAN BLUETOOTH

Wi-Fi 7 Solution

Supports Bluetooth 5.4, MLO, 4KQAM


LED FEATURE

4x EZ Debug LED

1x EZ Digit Debug LED


OPERATING SYSTEM

Support for Windows 11 64-bit


PCB Info

ATX

243.84mmx304.8mm

Specifications
SKU MBM-X870EEDGETIWIFI
Brand MSI
Shipping weight 1.9200kg
Shipping width 0.174m
Shipping height 0.368m
Shipping length 0.444m

MSI MPG X870EEDGE TI WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 3x PCIe x16, 4x M.2, 8x USB 2.0, 4x USB-C

$946.64

or 4 payments of $236.66 with Learn more

In Stock
