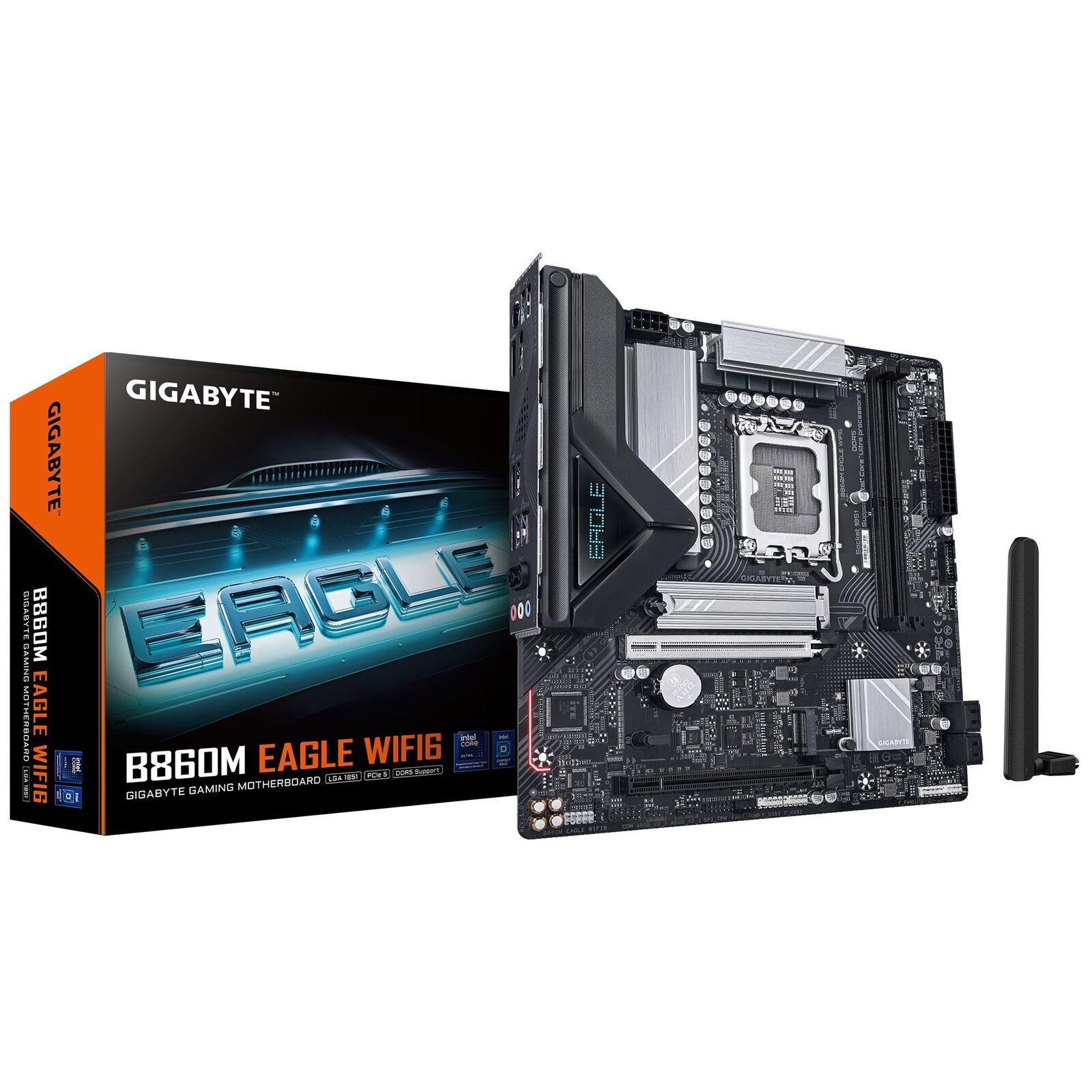

Gigabyte M B B860M EAGLE WIFI6 1.0, Intel B860, 4 x DDR5 up to 128 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2

CPU

LGA1851 socket: Support for Intel Core„ Ultra Processors

(Go to GIGABYTE fts website for the latest CPU support list.)

L3 cache varies with CPU

Chipset

Intel B860 Express Chipset

Memory

Support for DDR5 9066(O.C) 8800(O.C) 8600(O.C) 8400(O.C) 8266(O.C) 8200(O.C) 8000(O.C) 7950(O.C) 7900(O.C) 7800(O.C) 7600(O.C.) 7400(O.C.) 7200(O.C.) 7000(O.C.) 6800(O.C.) 6600(O.C.) 6400 5600 MT s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ftMemory Support List ft on GIGABYTE fts website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144 Hz

Support for DisplayPort 2.1 version.

(Graphics specifications may vary depending on CPU support.)

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps 1 Gbps 100 Mbps)

Wireless Communication module

Realtek Wi-Fi 6 RTL8851BE

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4 x2 SSD support)(M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4 x2 SSD support)(M2P_SB)

- 4 x SATA 6Gb s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

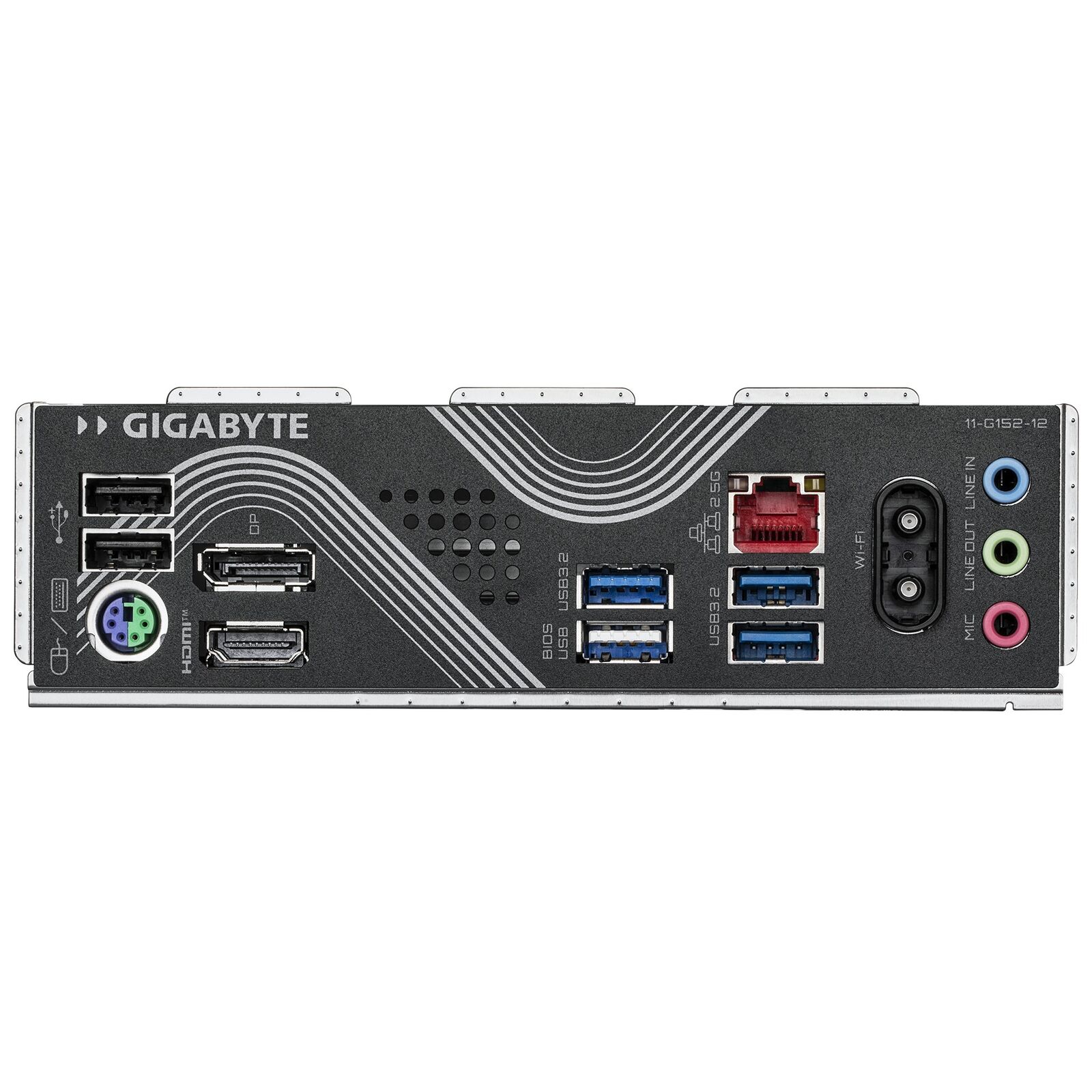

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

- 3 x USB 2.0 1.1 ports on the back panel

ChipsetUSB 2.0 Hub:

- 4 x USB 2.0 1.1 ports available through the internal USB headers
