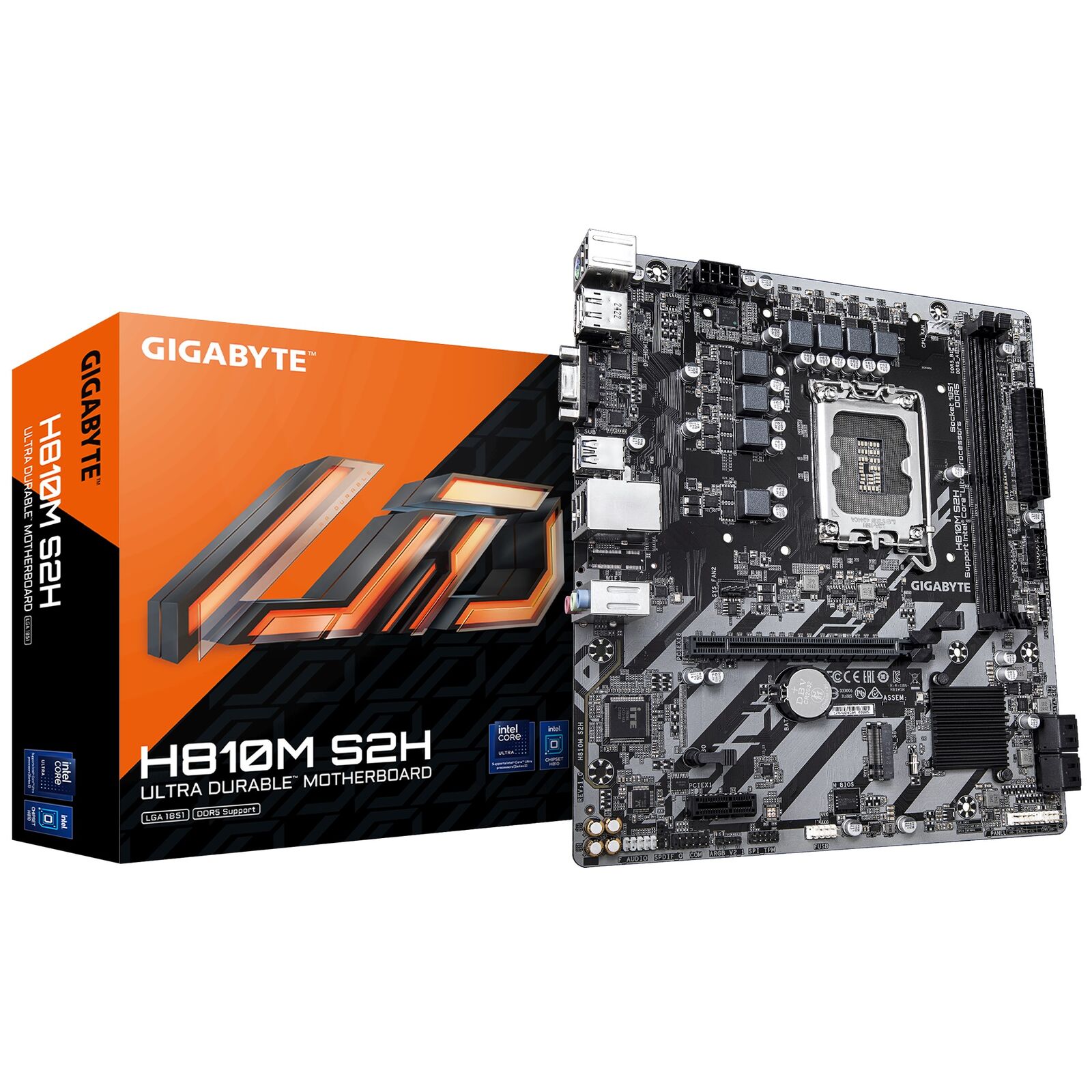

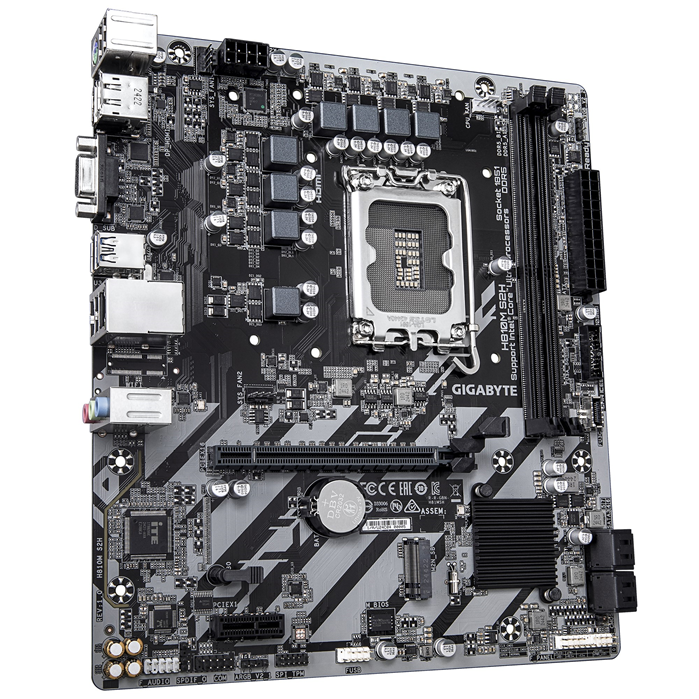

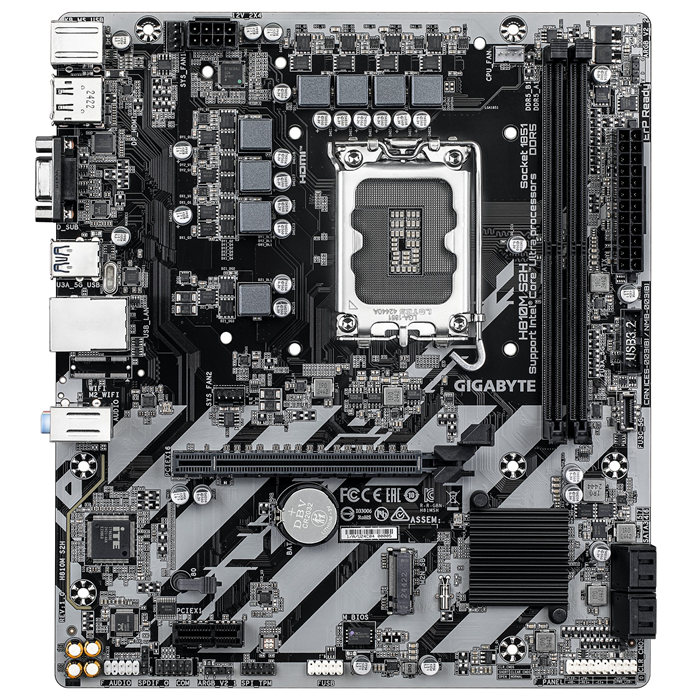

Gigabyte H810M S2H Intel LGA 1851 ATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 3x USB 3.2, 3x USB 2.0

Specification:

CPU

LGA1851 socket: Support for Intel Core„ Ultra Processors

Chipset

Intel H810 Express Chipset

Memory

Support for DDR5 6400 5600 MT s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Support for HDMI 2.1 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 60 Hz

Support for DisplayPort 2.1 version.

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200 60 Hz

Expansion Slots

1 x PCI Express x16 slot

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

1 x M.2 connector

4 x SATA 6Gb s connectors

USB

Chipset:

- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

- 2 x USB 2.0 1.1 ports on the back panel

ChipsetUSB 2.0 Hub:

- 4 x USB 2.0 1.1 ports available through the internal USB headers

Internal I O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb s connectors

1 x front panel header

1 x front panel audio header

1 x S PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0 1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI GC-TPM2.0 SPI 2.0 GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Form Factor Micro ATX Form Factor 24.4cm x 22.5cm
